A Class MUR1560 U1560 1560 15A 600V Schottky Recovery Diode Package TO-220 Rectifier Transistor For Electronics Circuitry & Parts

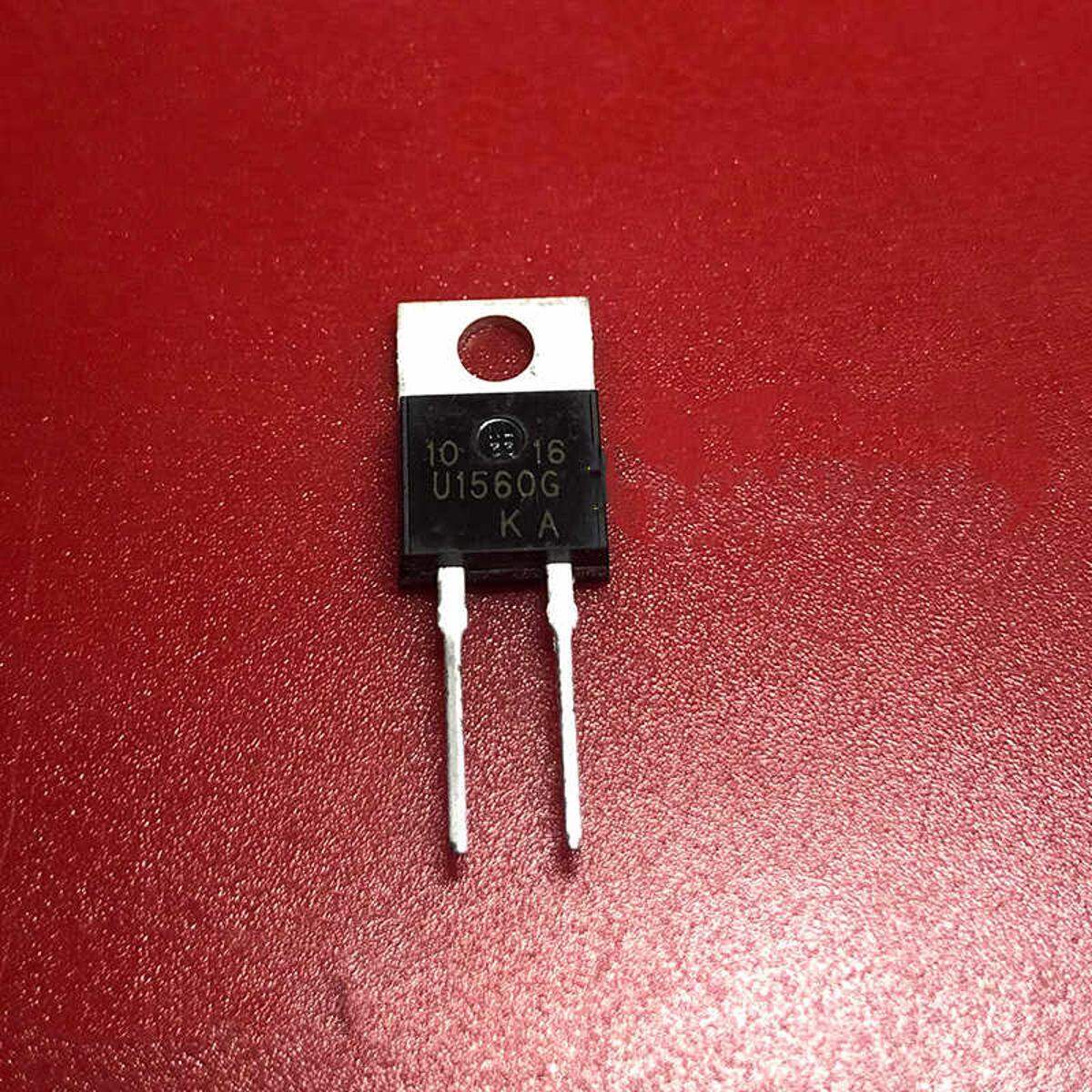

Description: MUR1560G 15A 600V Ultra-Fast Recovery Diode

The MUR1560G is a switch-mode ultrafast Power Rectifier with epoxy moulded case and all external surfaces corrosion-resistant and terminal leads are readily solderable finish. The power rectifier features low forward drop and high voltage capability.

Features:

• Peak Repet. Reverse Voltage (Vrrm): 600V
• Max. DC Reverse Voltage (Vdc): 600V
• Average Rectified Current (Io): 15.0A
• Maximum Reverse Current (Ir): 100µA
• Maximum Power Dissipation (Pd): 100W
• Maximum Forward Voltage (Vf): 1.05V
