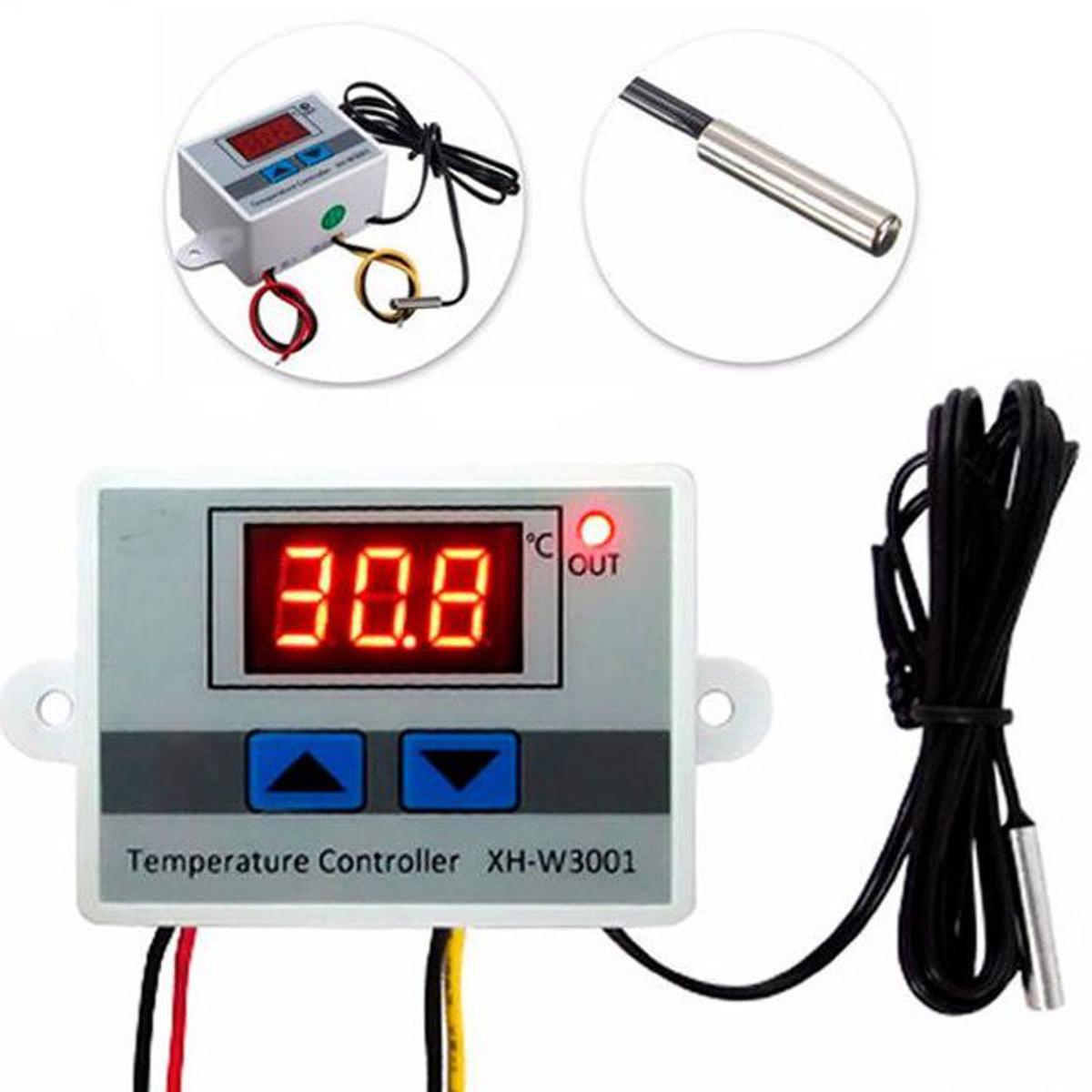

Descriptions: XH-W3001 W3001 AC 220V 10A 120W Microcomputer Digital Temperature Controller Digital Display Thermostat Control Switch

AC 220V XH-W3001 W3001 10A 220V 120W Digital Temperature Controller Display Thermostat Control Sensors Switches & Waterproof 10K NTC Probe For Incubator Fridge Cooling Heating Switches

• ABS flame retardant housing is avirulent and environmental protective, long service life and will not discolor or be out of shape
• Wide temperature control range from -50℃ to 110℃ and high temperature control precision of 0.1℃
• Can be installed directly or embedded in industrial control equipment panel, convenient and quick
• Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields
• Probe used stainless steel material shell and resin sealing treatment, waterproof and does not rust

Feature:

• Model: XH-W3001
• Name: Temperature Controller
• Temperature measurement, display, refrigeration, heating control.
• Temperature setting upper and lower limits.
• Simple operation, suitable for seafood machines.
• Easy to install.

Specification:

• Measurement range: – 50°C – 110°C
• Control range: – 50°C – 110°C
• Measuring accuracy: plus or minus 0.2 °C
• Control precision: plus or minus 0.1 °C
• Measuring input: NTC10K L= 1 m waterproof probe
• Power: 1500W
• Input voltage: 220V
• Current: Max 10A
• Size: 60 x 45 x 30mm

How to use:

• Press “UP” button show the starting temperature;
• Long press “UP” button until the temperature display flashes, press the “UP” or “Down” button to set the start temperature value;
• Press “Down” button show the stop temperature;
• Long press “Down” button until the temperature display flashes, press the “UP” or “Down” button to set the stop temperature value.

Package Includes:

• 1 x 220V LED temperature controller
• 1 x Thermostat control switch probe

• Brand: Panasonic/ ANY
• Type: Coin Cell
• Model:CR2025
• Chemical System: Li / MnO2
• Nominal Voltage:3V
• Rated Capacity:165mAH
• Average Weight:6.3 g
• Temperature Range:-30 – +60 °C
• Diameter:20 mm
• Height:2.5 mm
• Rechargeable: None
