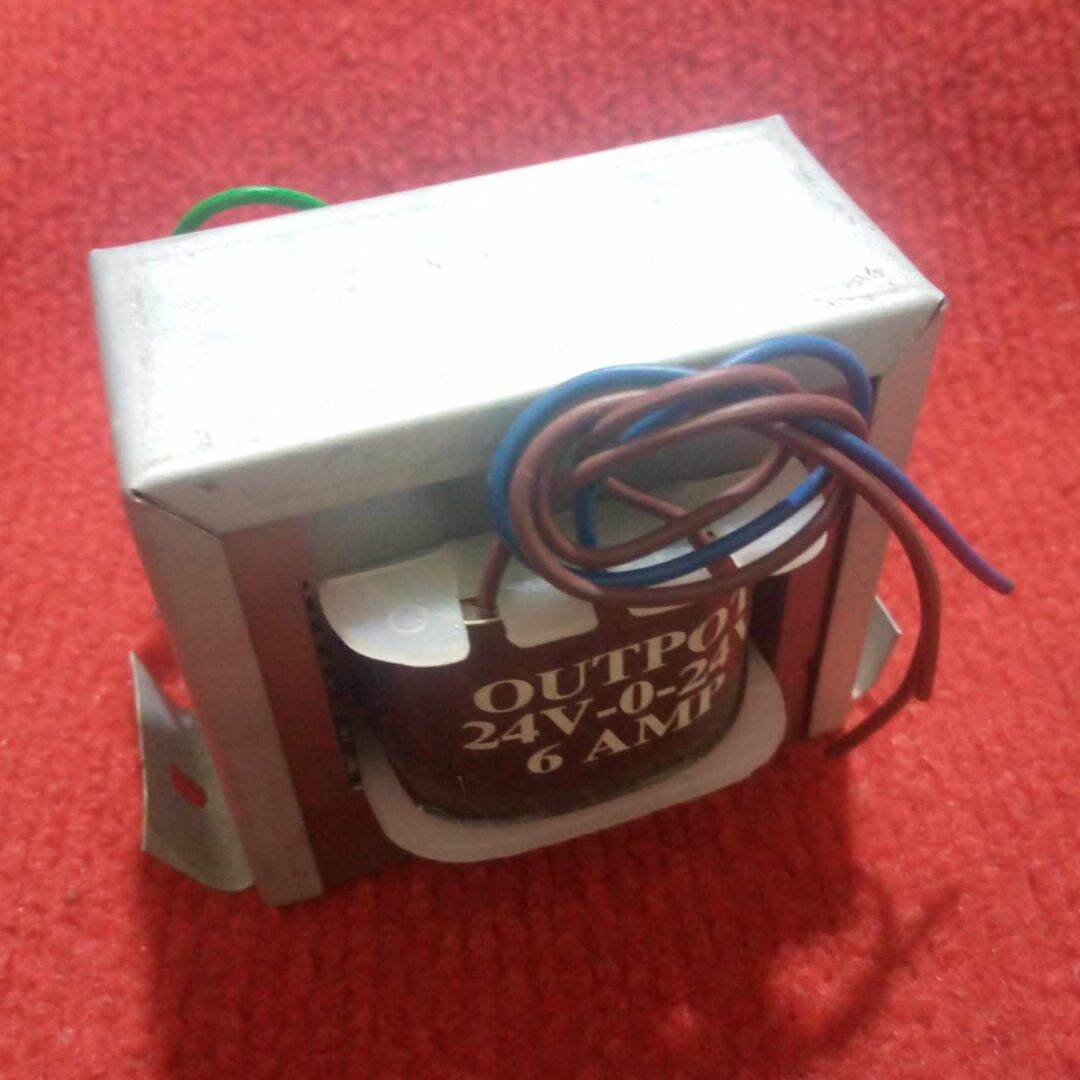

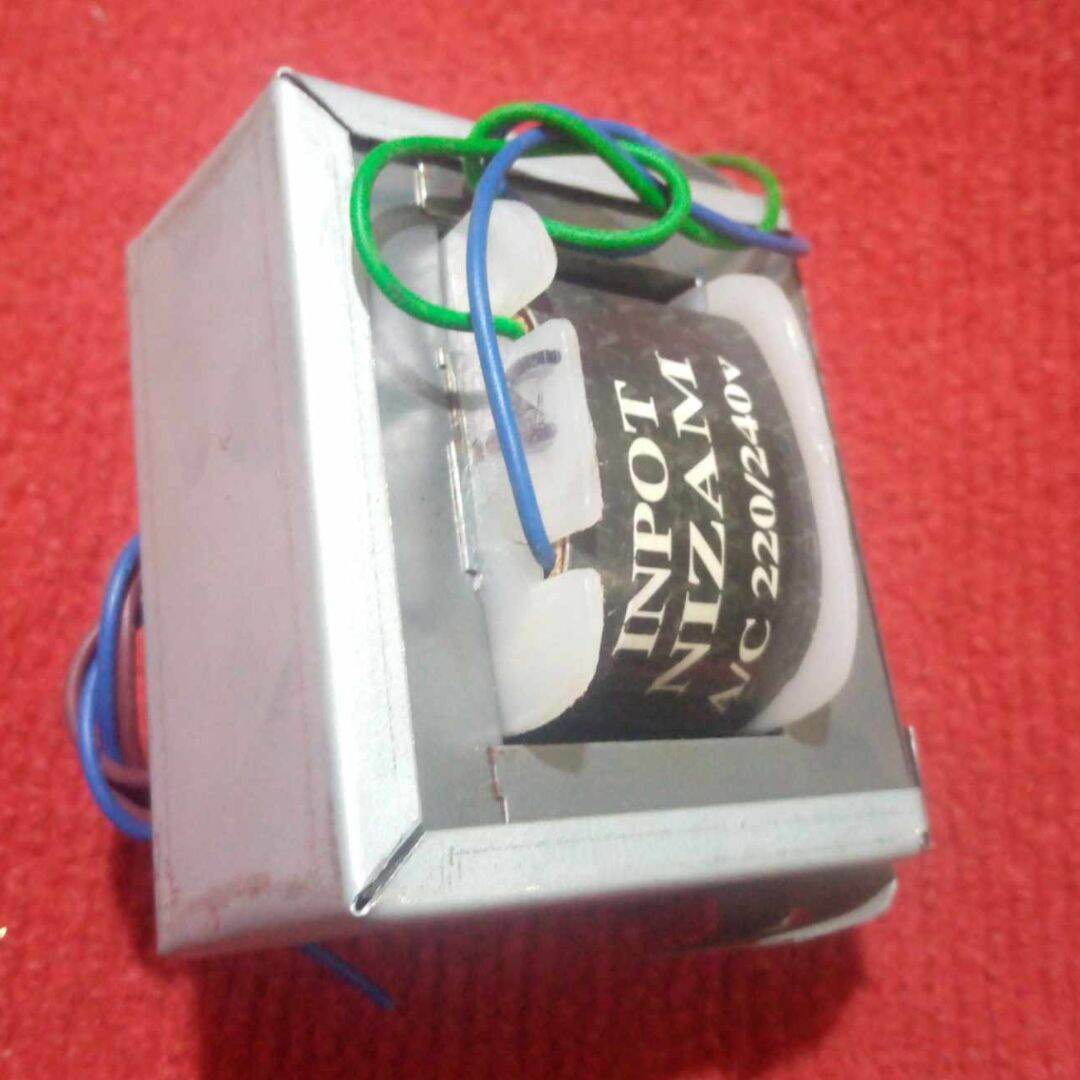

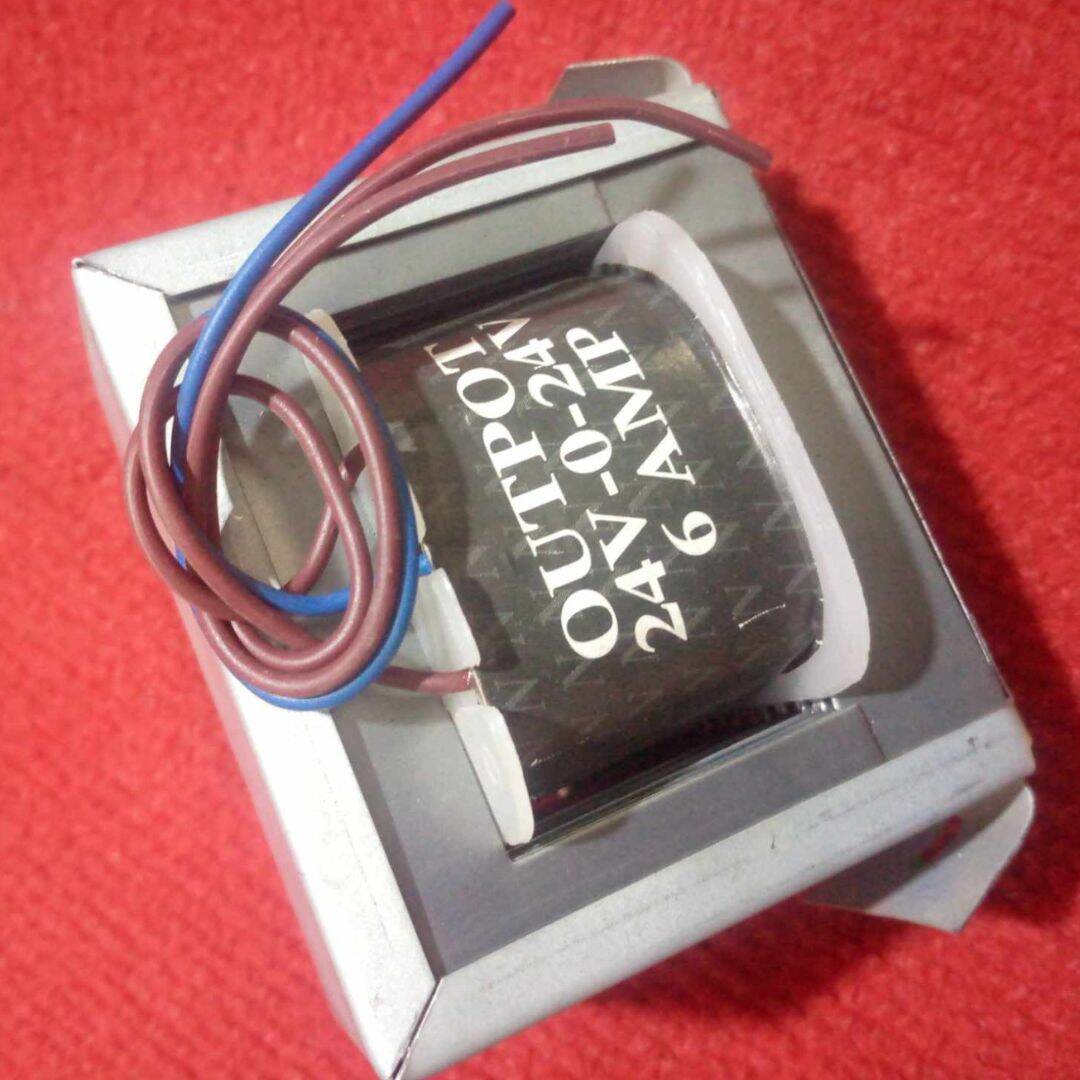

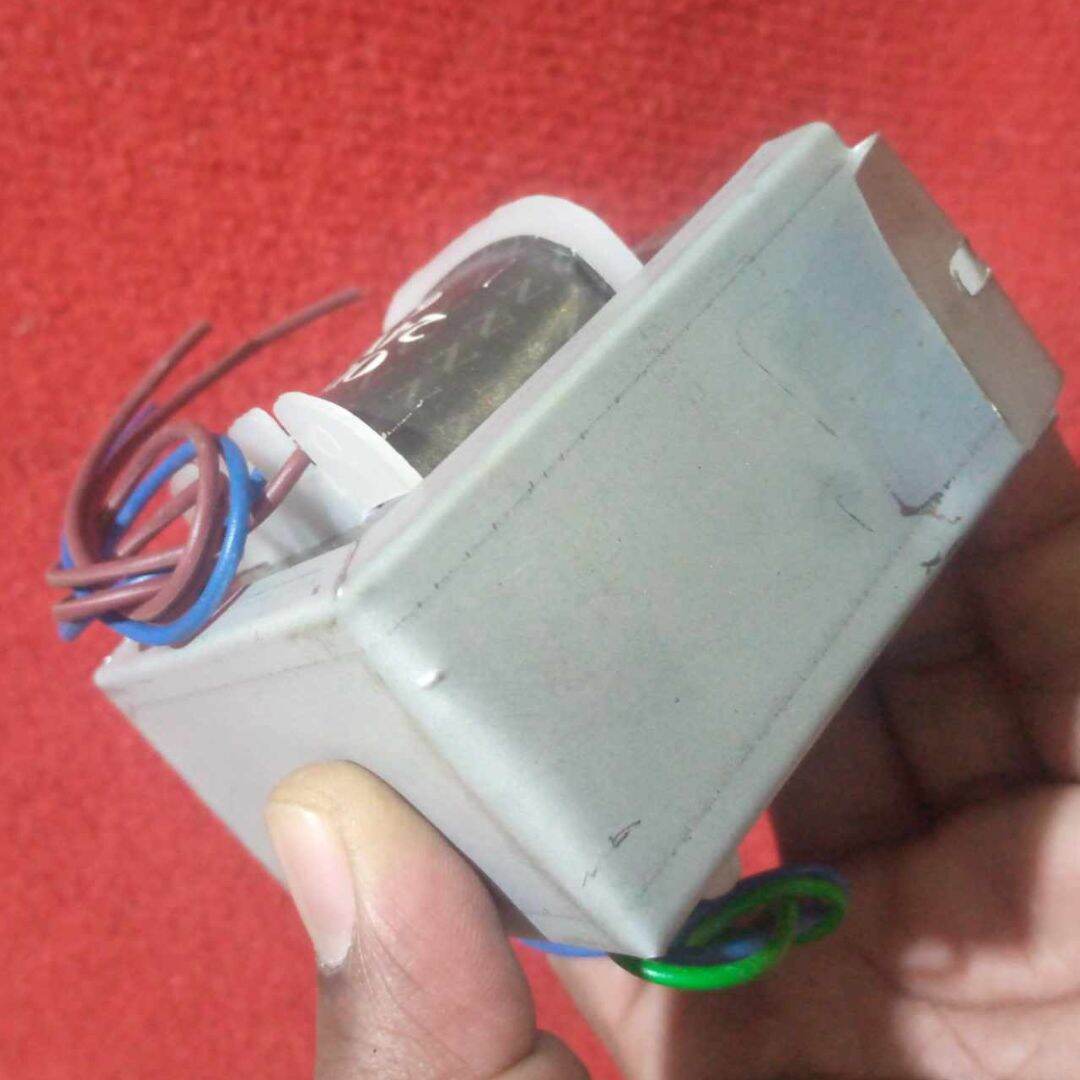

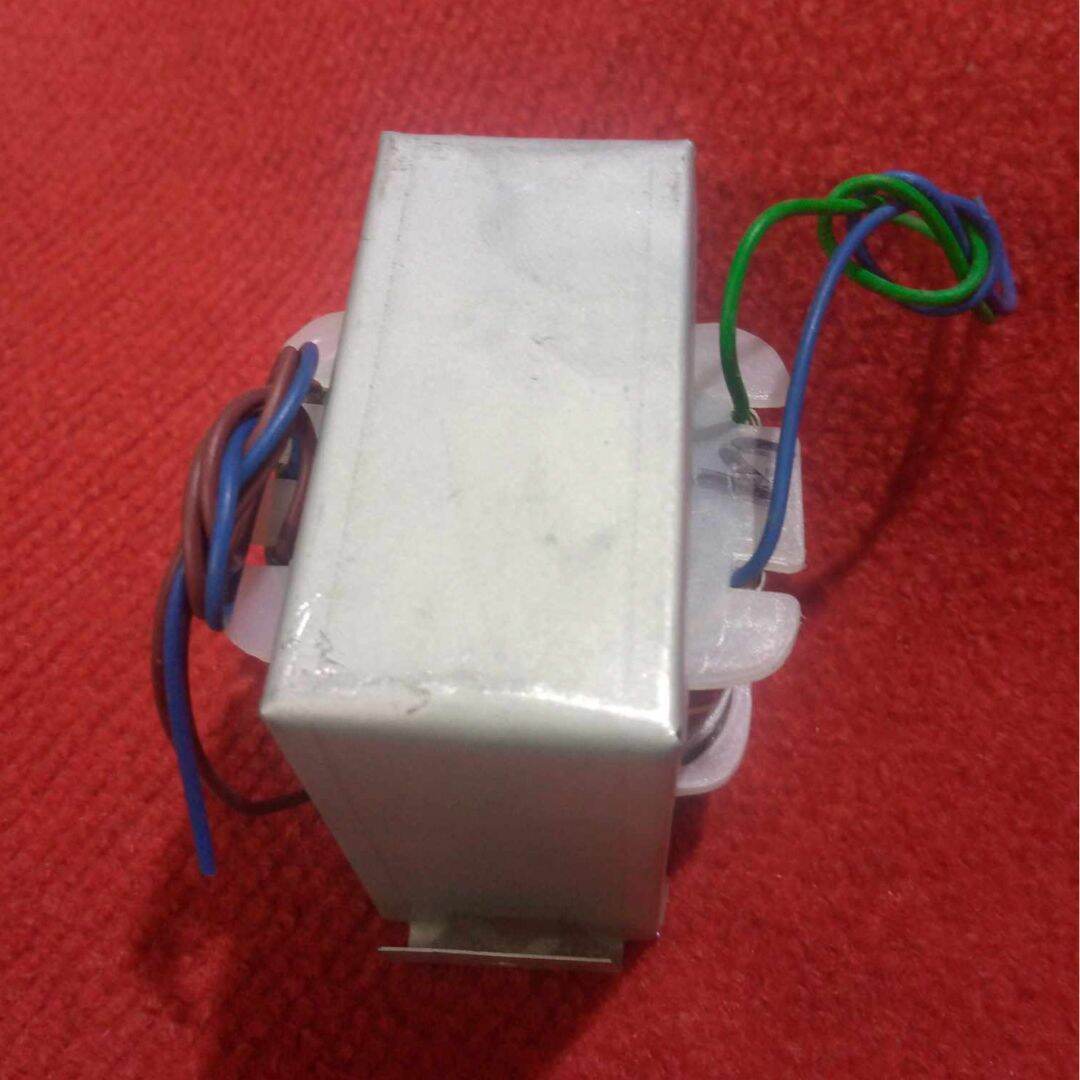

Aluminium Wire 24-0-24v 6Amp Transformer Input AC 220V 50Hz Output DC 24 Volt 6Amp Step Down Transformers For Power Supplies Electronic ProjectDIY - Multi Plug

Description: Mixed Wire 24-0-24v 6Amp Transformer Input AC 220V 50Hz Output DC 24 Volt 6Amp Step Down Transformers For Power Supplies Electronic Project DIY

A transformer is a static electrical device that transfers electrical energy between two or more circuits. A varying current in one coil of the transformer produces a varying magnetic flux, which, in turn, induces a varying electromotive force across a second coil wound around the same core. Electrical energy can be transferred between the two coils, without a metallic connection between the two circuits.

Mixed Quality Transformer, power supplies for all kinds of project & circuit boards. Step down 230 V AC to 24V with a maximum of 6Amp current.

Specification:

• 100% Brand New
• Mixed Quality Transformer,
• Input voltage: AC 220V / 50Hz
• Output Voltage: 24V-0-24V
• Current: 6Amp
• Frequency Characteristics: Low frequency
• Iron core shape: EI type
• Moisture-Proof Mode: Open Type
• Cooling Mode: Natural Cooling
• Cooling Form: Inflatable
• Structure Form: Single-Phase Transformer
• Linearity: Two lines are input lines And Three lines are output lines.
• Power supplies for all kinds of project & circuit boards.
• Step down 230 V AC to 24V with a maximum of 6Amp current.
• Size: 85x67x74mm (Approx.)
• Weight: 1.250kg (Approx.)

Package Include:

• 1 x Mixed Wire 24-0-24v 6Amp Transformer
