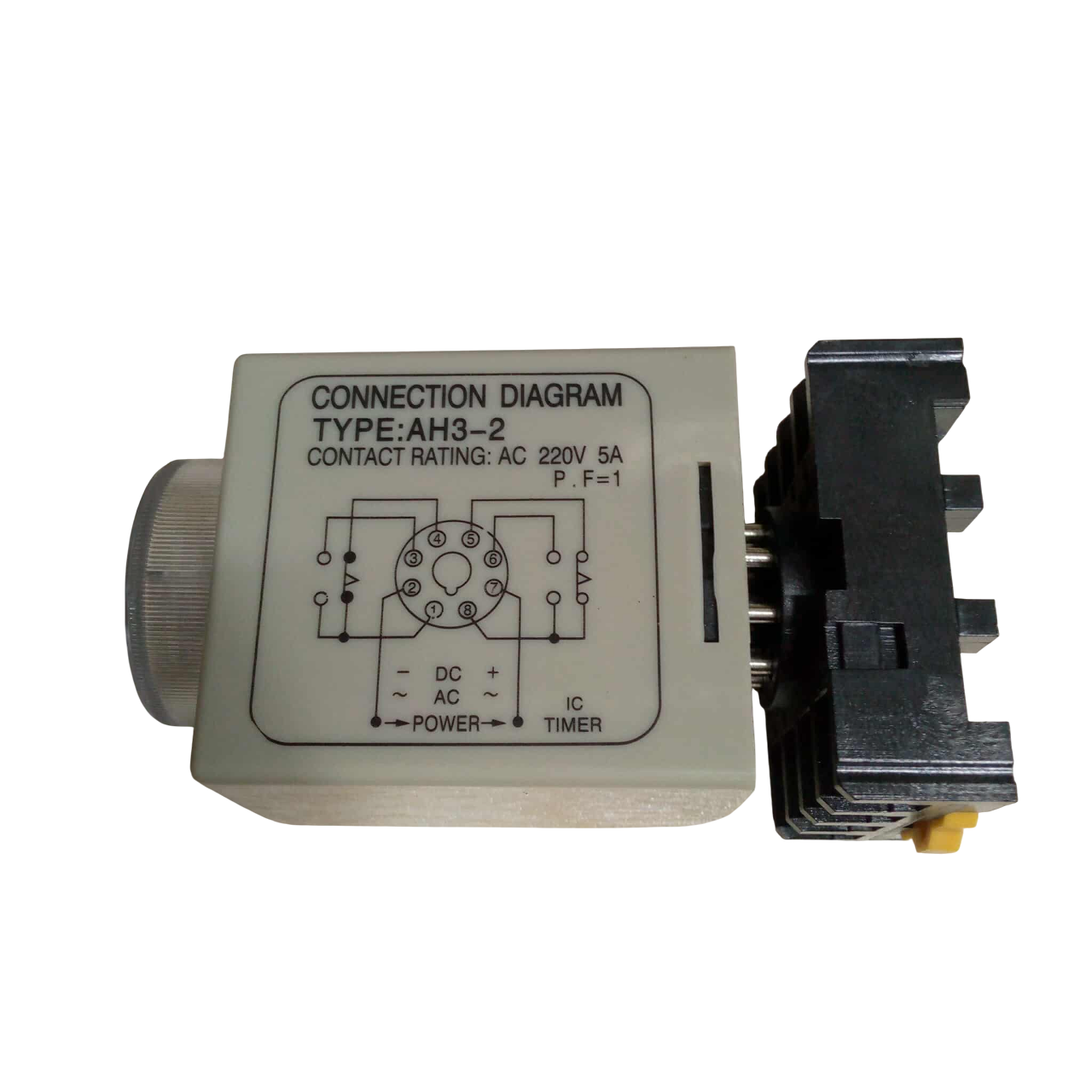

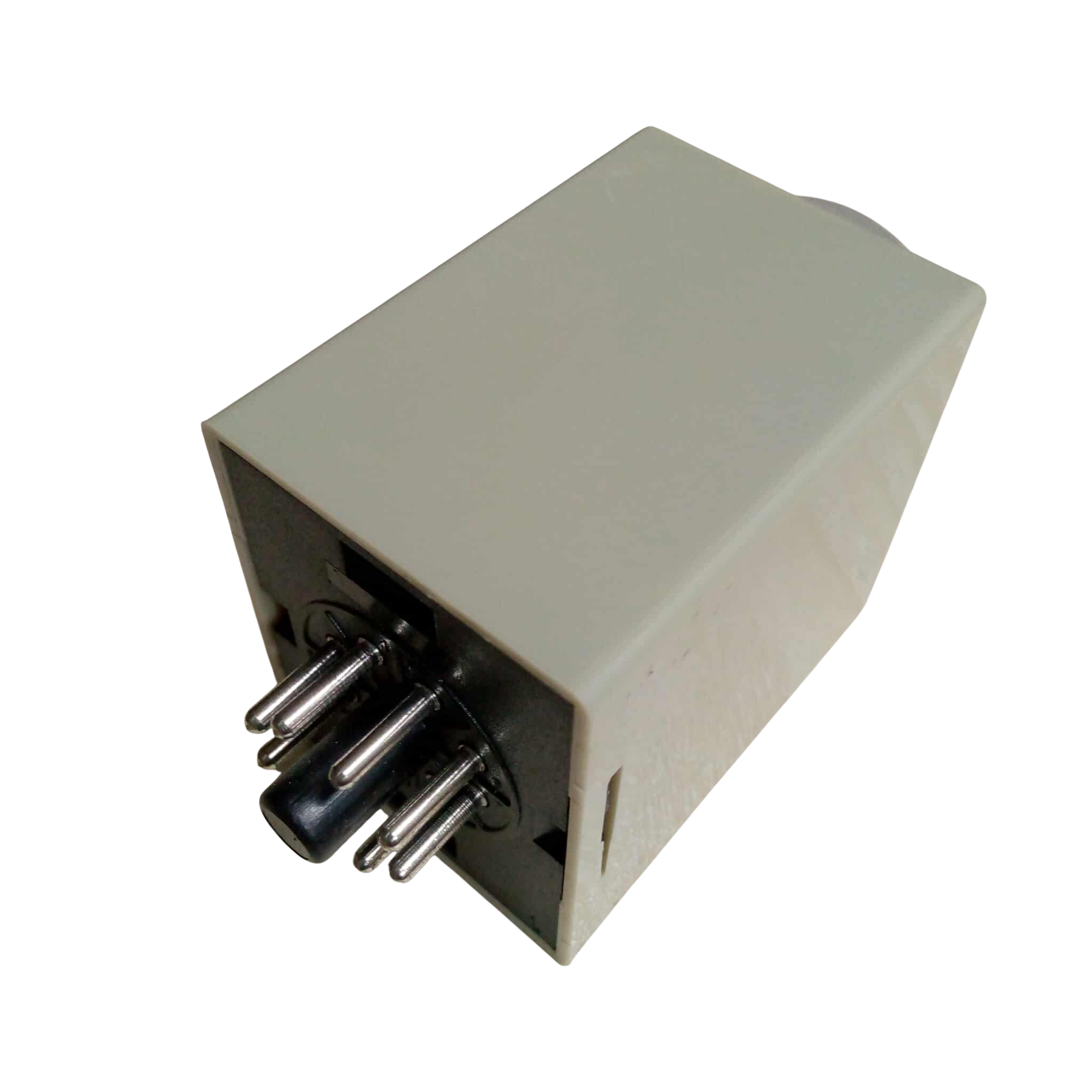

Description: ANLY AH3-2 Delay Timer Relay AC 220V 8-Pin 0–60Min

The ANLY AH3-2 Delay Timer Relay is a reliable and durable time delay device designed for industrial automation and control systems. Operating on AC 220V, this 8-pin timer relay allows adjustable delay settings from 0 to 60 minutes, offering flexibility and precision in timed operations.

Equipped with a DPDT (Double Pole Double Throw) contact configuration, the AH3-2 relay ensures safe and consistent switching performance for both resistive and inductive loads. Its solid-state construction enhances longevity and reliability, making it suitable for demanding applications.

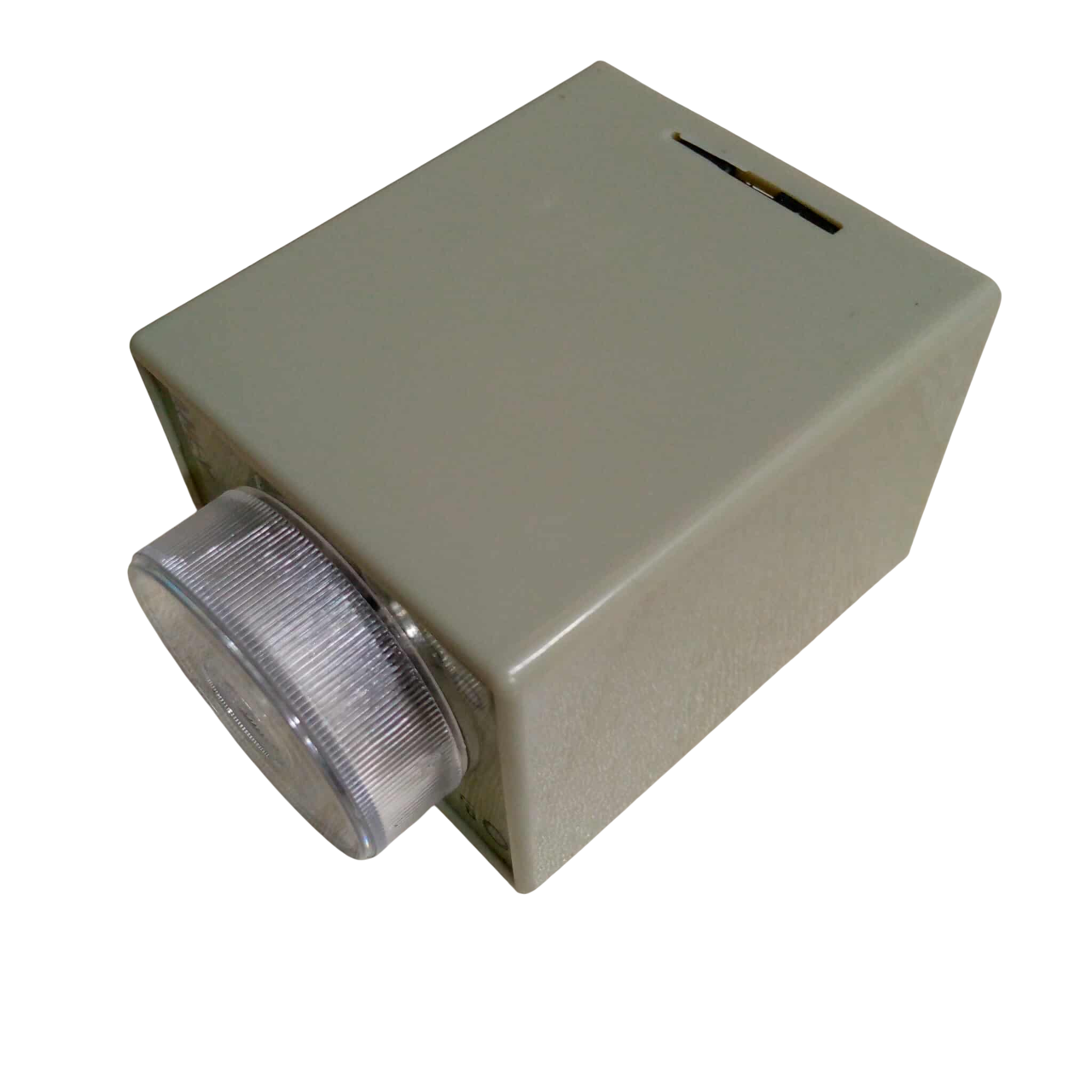

A built-in dial timer knob allows easy manual time adjustment, while LED indicators provide real-time status updates. This relay is ideal for applications like motor control, heating elements, lighting control, and process sequencing.

Key Specifications:

• Model: AH3-2
• Operating Voltage: AC 220V
• Delay Time Range: 0–60 minutes
• Contact Form: Double Pole Double Throw (DPDT)
• Rated Current: 5A
• Maximum Switching Current: 5A
• Contact Rating: 250VAC, 5A (resistive load)
• Coil Voltage: 220V AC
• Mounting Type: DIN rail
• Dimensions: Approximately 80 x 49 x 39 mm
• Housing Color: Grey

⚙️ Features

• Time Delay Function: Delays the activation of connected circuits, useful for preventing immediate startup or ensuring sequential operations.
• Adjustable Timer: Knob-based adjustment allows precise setting of delay time within the specified range.
• LED Indicators: Provides visual indication of power status and timing cycle.
• High Reliability: Built using CMOS IC technology, offering high repeat accuracy and stability.
• Wide Application: Suitable for industrial automation systems and mechanical equipment requiring timed operations

• Model: AH3-2
• Operating Voltage: AC 220V
• Delay Time Range: 0–60 minutes
• Contact Form: Double Pole Double Throw (DPDT)
• Rated Current: 5A
• Maximum Switching Current: 5A
• Contact Rating: 250VAC, 5A (resistive load)
• Coil Voltage: 220V AC
• Mounting Type: DIN rail
• Dimensions: Approximately 80 x 49 x 39 mm
• Housing Color: Grey
