• Certification:CECCC
• Mounting Diameter : 22mm
• Head Protection Index:IP65
• Panel Thickness:10mm
• Material of Shell: PlasticABS
• Led Brightness: More than 60cd
• Voltage:AC220V
• Color: Red, Yellow, Blue, Green, White
• Resistor: Metal Film Resistor, Carbon Film Resistor
• Capacitor: Aluminum Capacitor, Polypropylene Capacitor
• Color : Any

Working Condition

• Operational temperature: -25~+55
• Relative humidity: ≤98%
• Normally workable when vibration frequency is 2-80Hz with acceleration of 0.7g.
• Pollution degree is 3 ,the installation category class is III
• One with “TH” mark can work in the condition of moist heat
• Apply to Signal lines for directions signal, anticipating signal, fault signal and any other signal, which in electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, etc.

Technical Data

• Power frequency with stand voltage:2.5KV per minute.(effective AC value)
• Insulation resistance: ≥2MΩ
• Allowable voltage fluctuation:±20%
• Continous operating life: 30000H
• Brightness: ≥100cd/m2
• CTI ≥ 100
• Protective degree of the head IP65,IP67 is available on request

Package Include:

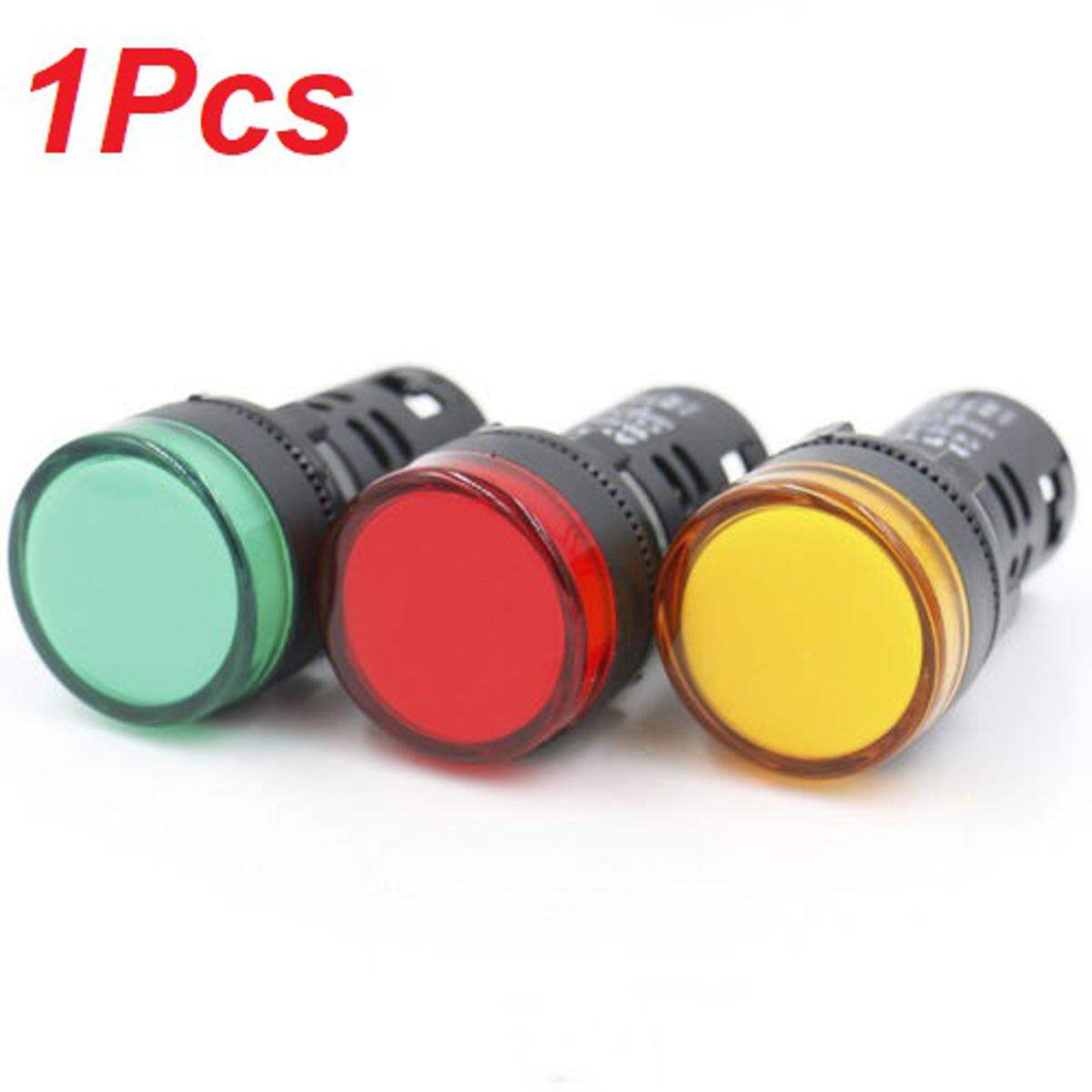

• 1 x LED Pilot Panel Indicator Light 22mm AC 220V LED Signal Panel Indicator Lights Lamp For Power Mining Industry
