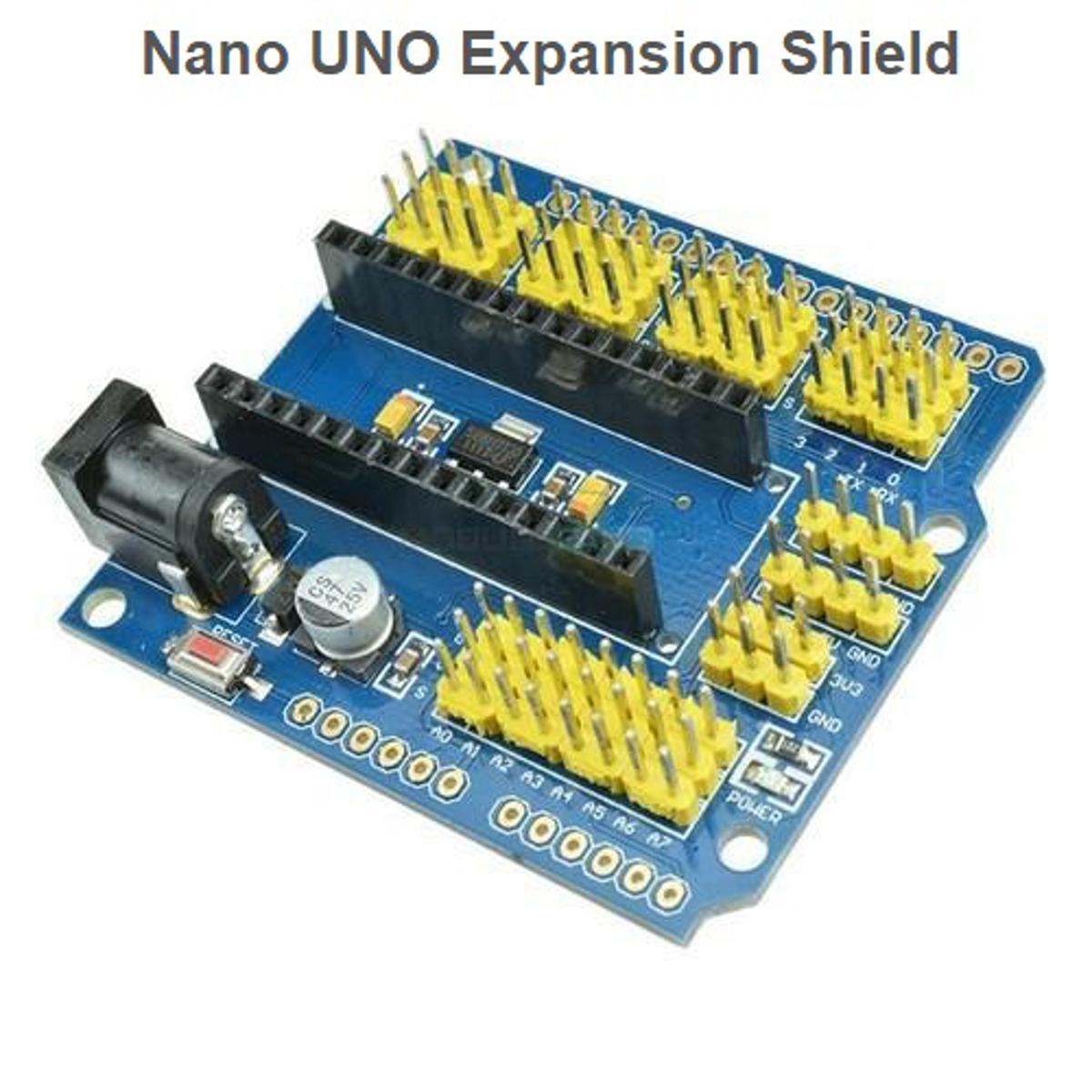

Description: Multifunctional Nano UNO 328P Expansion Sensor IO Shield Board For Arduino

The Nano 328P Expansion Adapter Breakout Board IO Shield acts as a breakout board for the Arduino Nano microcontroller. There are several different options for power input and the footprint of this board is the same as the Arduino Duemilanove. In addition, each pinout includes 5V and GND pins for easy connection tosensorsorservos. Unit comes fully assembled. Arduino Nano IO Expansion Shieldis specifically designed to facilitate an easy connection between Arduino Nanoand many other devices. In essence, it expands the Arduino Nano controller to link those devices in a simple and trouble-free manner.

It is a perfect companion of Nano breadboard and compatible with both Arduino Nano v2.x and v3.x.

Overview:

• Compatible with Arduino NANO
• All digital and analog pins breakout
• Compact size: 58*53*13mm
• External power supply current support
• Leads all pins out, convenient for wiring and doing experiments.

Specifications:

14 I/O Pin (servo type with GND, power and signal)3.3V output8 analog Pin with power output and GND6 PWM Pin1 Servo power inputI2C expansion PinAREF output

You can use this module with Arduino Nano, to buy them click on the name below

• 14 I/O Pin (servo type with GND, power and signal)
• 3.3V output
• 8 analog Pin with power output and GND
• 6 PWM Pin
• 1 Servo power input
• I2C expansion Pin
• AREF output
