Arduino NANO Expansion Shield ATMEGA328P NANO IO Shield & UNO Multi-Purpose Expansion Board For Arduino Nano 3.0 I/O Expansion Sensor Shield Module Electronics Circuitry & Parts

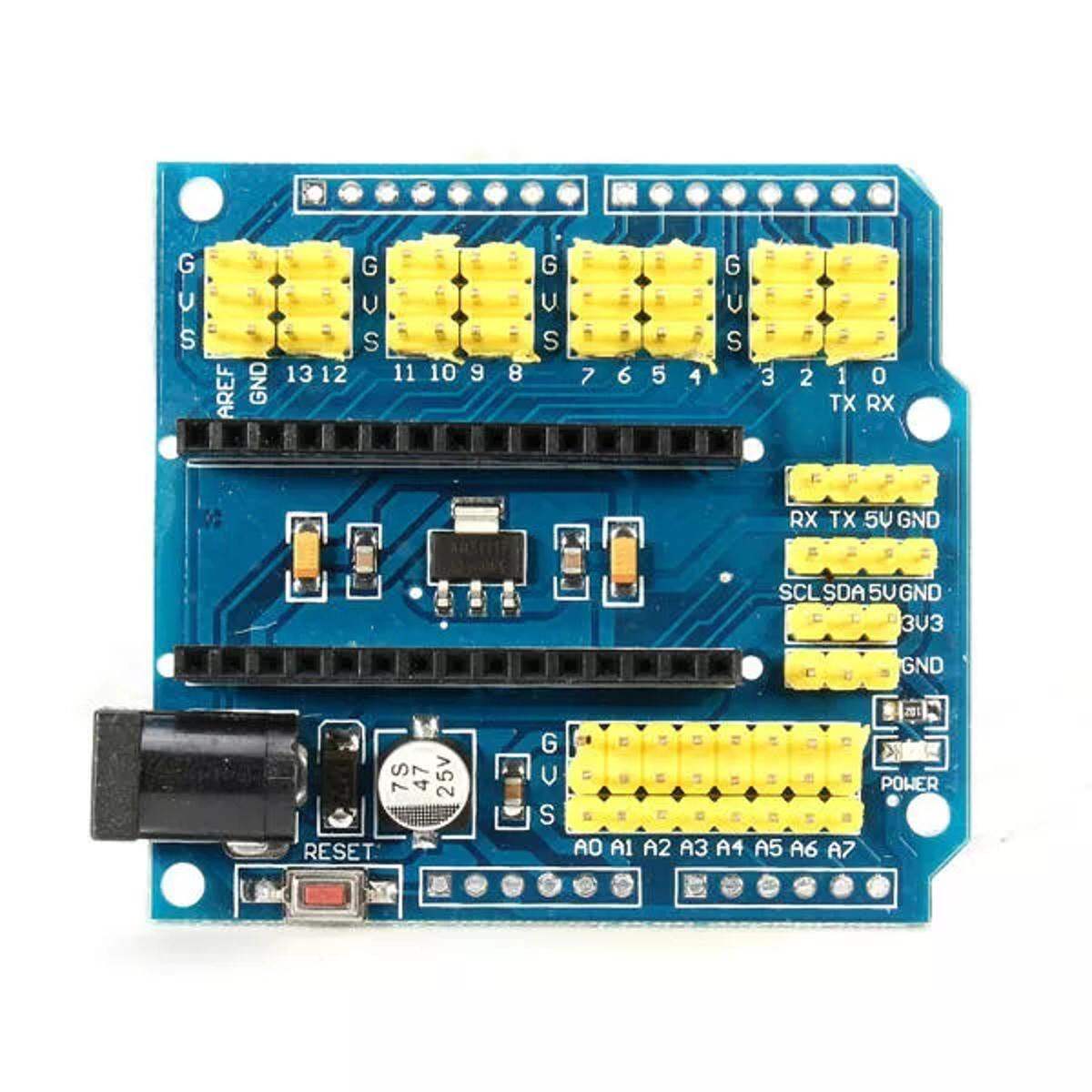

Description: Arduino NANO Expansion Shield ATMEGA328P NANO IO Shield

Multifunctional Arduino Nano UNO 328P Expansion Sensor IO Shield Nano 328P Expansion Adapter Breakout Board Compatible Arduino Nano

Multifunctional Arduino Nano UNO 328P Expansion Sensor IO Shield Board Nano 328P Expansion Adapter Breakout Board Compatible For Arduino Nano R3

The Nano 328P Expansion Adapter Breakout Board IO Shield acts as a breakout board for the Arduino Nano microcontroller. There are several different options for power input and the footprint of this board is the same as the Arduino Duemilanove. In addition, each pinout includes 5V and GND pins for easy connection tosensorsorservos. Unit comes fully assembled.Arduino Nano IO Expansion Shieldis specifically designed to facilitate an easy connection between Arduino Nanoand many other devices. In essence, it expands the Arduino Nano controller to link those devices in a simple and trouble-free manner.

It is a perfect companion of Nano breadboard and compatible with both Arduino Nano v2.x and v3.x.

Overview:

• Compatible with Arduino NANO
• All digital and analog pins breakout
• Compact size: 58*53*13mm
• External power supply current support
• Leads all pins out, convenient for wiring and doing experiments.

Specifications:

• 14I/O Pin (servo type with GND, power, and signal).
• 8analog Pin with power output and GND.
• 6PWM Pin.
• 1Servo power input.
• 5I2C expansion Pin.
• 1AREF output.
• 13.3V output.

Note:

Please allow 1-3mm differs due to manual measurement Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding

Package Includes:

• 1 x Arduino NANO Expansion Shield ATMEGA328P NANO IO Shield
