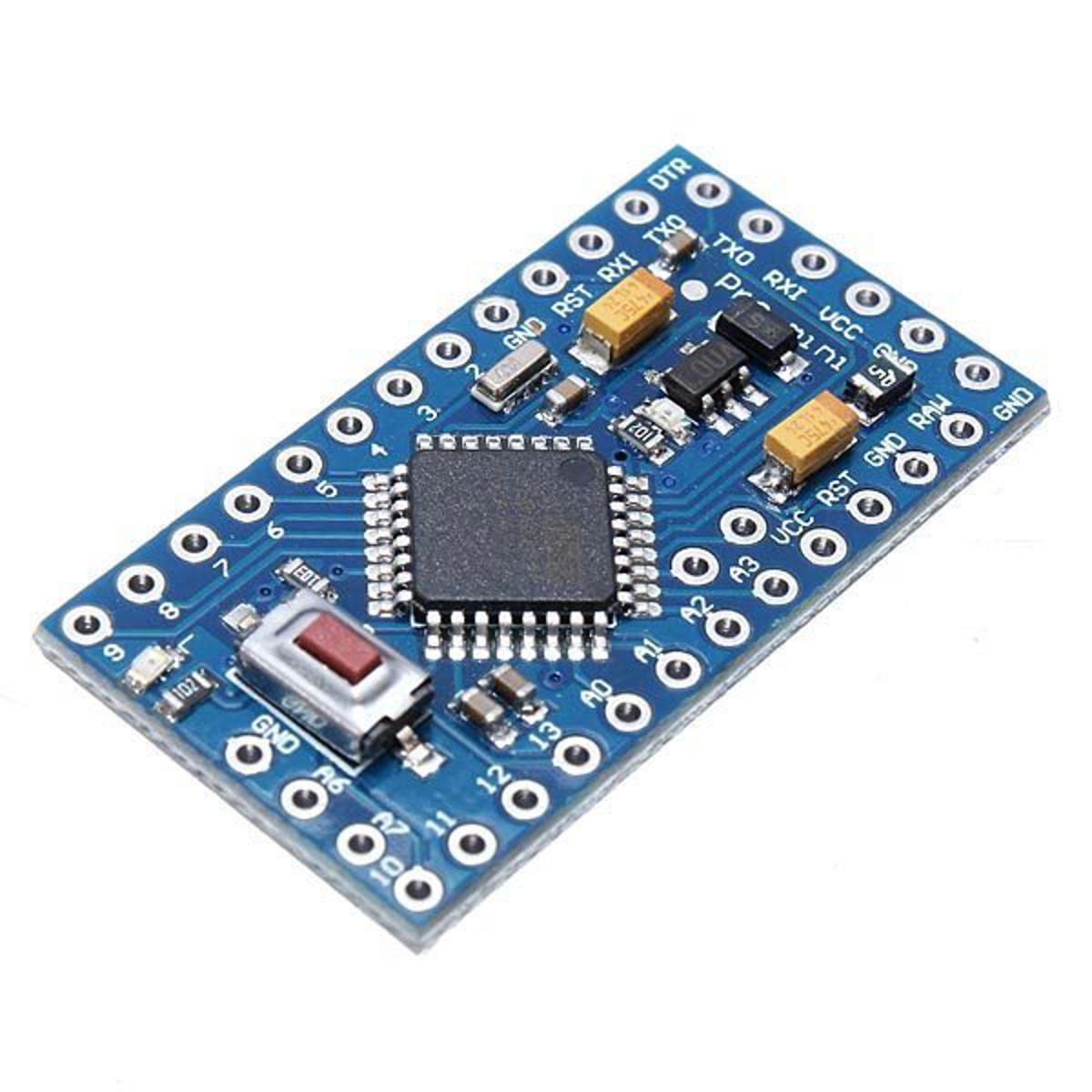

Picture of ARDUINO PRO MINI 5V ATMEGA328P Arduino Pro Mini 5V ATMEGA328P ProMini ATMEGA328 5V 16MHz Development Board Arduino Pro Mini Without Cables
Picture of ARDUINO PRO MINI 5V ATMEGA328P Arduino Pro Mini 5V ATMEGA328P ProMini ATMEGA328 5V 16MHz Development Board Arduino Pro Mini Without Cables

ARDUINO PRO MINI 5V ATMEGA328P Arduino Pro Mini 5V ATMEGA328P ProMini ATMEGA328 5V 16MHz Development Board Arduino Pro Mini Without Cables

Category: Building Materials
SKU: UDBD05584
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 497
Tk 585
Tk 585
15% OFF
0 review(s)
  • DC input 5V up to 8V(power supply from RAW pin)
  • DC input 5v(from VCC pin)
  • Bootloader: Arduino Pro/Pro Mini (5V, 16Mhz) w/ Atmega328
  • 5V regulator
  • Max 150mA output
  • ATmega328 running at 16MHz with external resonator (0.5% tolerance)
  • Low-voltage board needs no interfacing circuitry for popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
  • USB connection off board
  • Supports auto-reset
  • Over current protected
  • Reverse polarity protected
  • On board Power and Status LEDs
  • Size:0.7×1.3″ (18x33mm)
  • The dimensions of the Pro Mini PCB are approximately 0.7″ x 1.3″.

Call For Order : 09613-800800

Description: Arduino Pro Mini ATmega328-5V 16Mhz

The 5V Pro Mini (Arduino Pro Mini Compatible) is a microcontroller board based on the ATmega328. It is a 5V DF duino running the 16MHz bootloader (select ‘Arduino Duemilanove w/ 328’ within the Arduino software). It is an advance version of offical Arduino Pro Mini. The Pro mini has 8 analog inputs compared with offical 6. The rest bits are exactly the same. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Pro Mini breakout board to provide USB power and communication to the board. The Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.
We recommand that you choose one of following items to program and supply power for your Mini pro board.

Specification:

  • DC input 5V up to 8V(power supply from RAW pin)
  • DC input 5v(from VCC pin)
  • Bootloader: Arduino Pro/Pro Mini (5V, 16Mhz) w/ Atmega328
  • 5V regulator
  • Max 150mA output
  • ATmega328 running at 16MHz with external resonator (0.5% tolerance)
  • Low-voltage board needs no interfacing circuitry for popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
  • USB connection off board
  • Supports auto-reset
  • Over current protected
  • Reverse polarity protected
  • On board Power and Status LEDs
  • Size:0.7×1.3″ (18x33mm)
  • The dimensions of the Pro Mini PCB are approximately 0.7″ x 1.3″.





  • DC input 5V up to 8V(power supply from RAW pin)
  • DC input 5v(from VCC pin)
  • Bootloader: Arduino Pro/Pro Mini (5V, 16Mhz) w/ Atmega328
  • 5V regulator
  • Max 150mA output
  • ATmega328 running at 16MHz with external resonator (0.5% tolerance)
  • Low-voltage board needs no interfacing circuitry for popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
  • USB connection off board
  • Supports auto-reset
  • Over current protected
  • Reverse polarity protected
  • On board Power and Status LEDs
  • Size:0.7×1.3″ (18x33mm)
  • The dimensions of the Pro Mini PCB are approximately 0.7″ x 1.3″.
