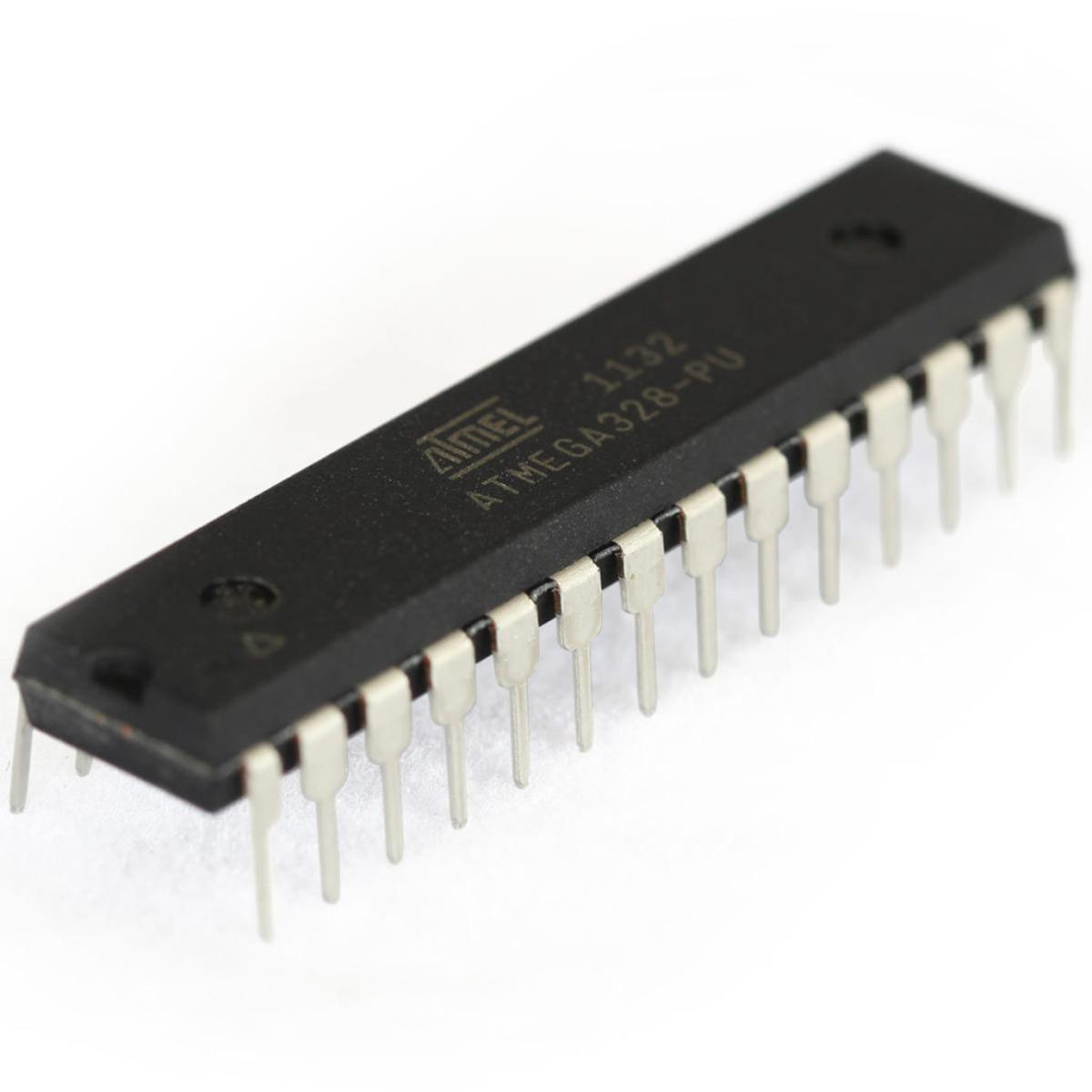

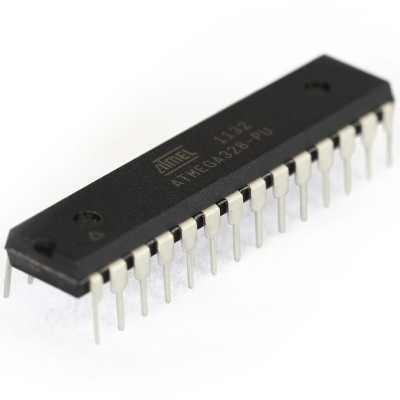

Description: ATMEGA328P-PU 8Bit Microcontroller

The ATmega328P is a low-power CMOS 8-bit microcontroller based on the AVRenhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmegaPA/328P achieves throughputs approaching 1 MIPS per MHz allowing the systemdesigner to optimize power consumption versus processing speed.

Features:

• 28-pin AVR Microcontroller
• Flash Program Memory: 32 kbytes
• EEPROM Data Memory: 1 kbytes
• SRAM Data Memory: 2 kbytes
• I/O Pins: 23
• Timers: Two 8-bit / One 16-bit
• A/D Converter: 10-bit Six Channel
• PWM: Six Channels
• RTC: Yes with Separate Oscillator
• MSSP: SPI and I²C Master and Slave Support
• USART: Yes
• External Oscillator: up to 20MHz

Documents:

• Datasheet

Package Include:

• 1 x ATMEGA328P-PU 8Bit Microcontroller

• 28-pin AVR Microcontroller
• Flash Program Memory: 32 kbytes
• EEPROM Data Memory: 1 kbytes
• SRAM Data Memory: 2 kbytes
• I/O Pins: 23
• Timers: Two 8-bit / One 16-bit
• A/D Converter: 10-bit Six Channel
• PWM: Six Channels
• RTC: Yes with Separate Oscillator
• USART: Yes
• External Oscillator: up to 20MHz
