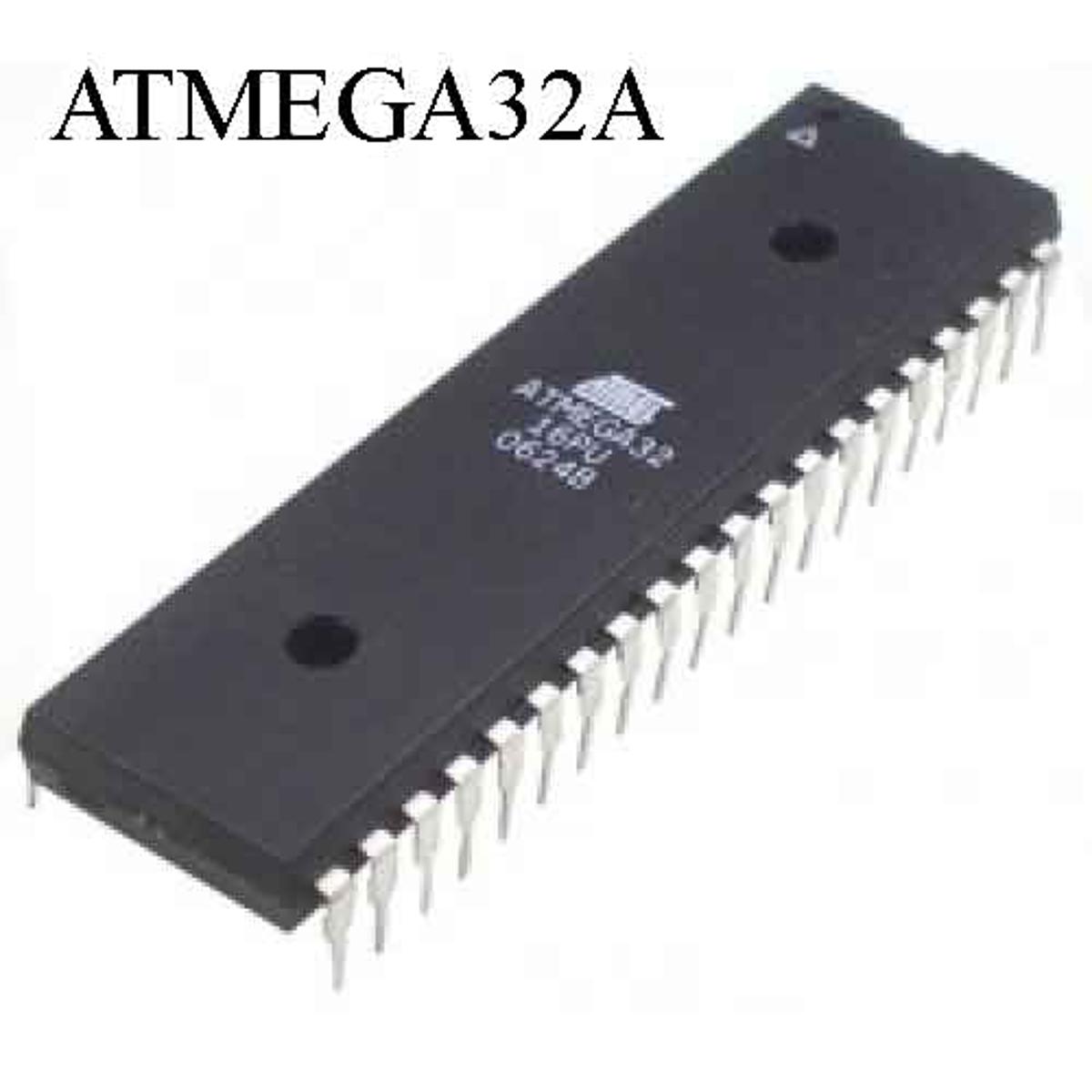

ATMEGA32A-PU ATMEGA32A ATMEGA32 16MHz 32KB Flash Memory 2KB Program Memory 8-Bit DIP-40 Pin Atmel ATMEGA AVR Microcontroller IC 40Pin Leads

Category: Building Materials
SKU: UDBD06292
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 3,554
Tk 4,181
Tk 4,181
15% OFF
0 review(s)
  • Product Range: AVR ATmega Family ATmega32 Series Microcontrollers
  • CPU Speed: 16MHz
  • Program Memory Size: 32KB
  • RAM Memory Size: 2KB
  • No. of Pins: 40Pins
  • MCU Case Style: DIP
  • No. of I/O’s: 32I/O’s
  • Embedded Interface Type: I2C, SPI, UART
  • Supply Voltage Min: 2.7V
  • Supply Voltage Max: 5.5V
  • MCU Family: AVR ATmega
  • MCU Series: ATmega32

Call For Order : 09613-800800

Description: ATMega32A 8-bit AVR Microcontroller

ATMEGA32A-PU ATMEGA32A ATMEGA32 16MHz 32KB Flash Memory 2KB Program Memory 8-Bit DIP-40 Pin Atmel Atmega AVR Microcontroller IC

The ATMEGA32A-PU is a 8bit low power, high performance AVR RISC-based Microcontroller Unit featuring 32kB self-programming flash program memory, 2kB SRAM, 1kB EEPROM, 8 channel 10-bit A/D converter and JTAG interface for on-chip-debug. The device achieves 16 MIPS throughput at 16Mhz. The AVR® core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers. The On-chip ISP Flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional non-volatile memory programmer or by an On-chip Boot program running on the AVR core.

Specification:

  • Product Range: AVR ATmega Family ATmega32 Series Microcontrollers
  • CPU Speed: 16MHz
  • Program Memory Size: 32KB
  • RAM Memory Size: 2KB
  • No. of Pins: 40Pins
  • MCU Case Style: DIP
  • No. of I/O’s: 32I/O’s
  • Embedded Interface Type: I2C, SPI, UART
  • Supply Voltage Min: 2.7V
  • Supply Voltage Max: 5.5V
  • MCU Family: AVR ATmega
  • MCU Series: ATmega32





  • Product Range: AVR ATmega Family ATmega32 Series Microcontrollers
  • CPU Speed: 16MHz
  • Program Memory Size: 32KB
  • RAM Memory Size: 2KB
  • No. of Pins: 40Pins
  • MCU Case Style: DIP
  • No. of I/O’s: 32I/O’s
  • Embedded Interface Type: I2C, SPI, UART
  • Supply Voltage Min: 2.7V
  • Supply Voltage Max: 5.5V
  • MCU Family: AVR ATmega
  • MCU Series: ATmega32
