Automatic Infrared PIR Motion Sensor Switch for outdoor and indoor lighting(Black)

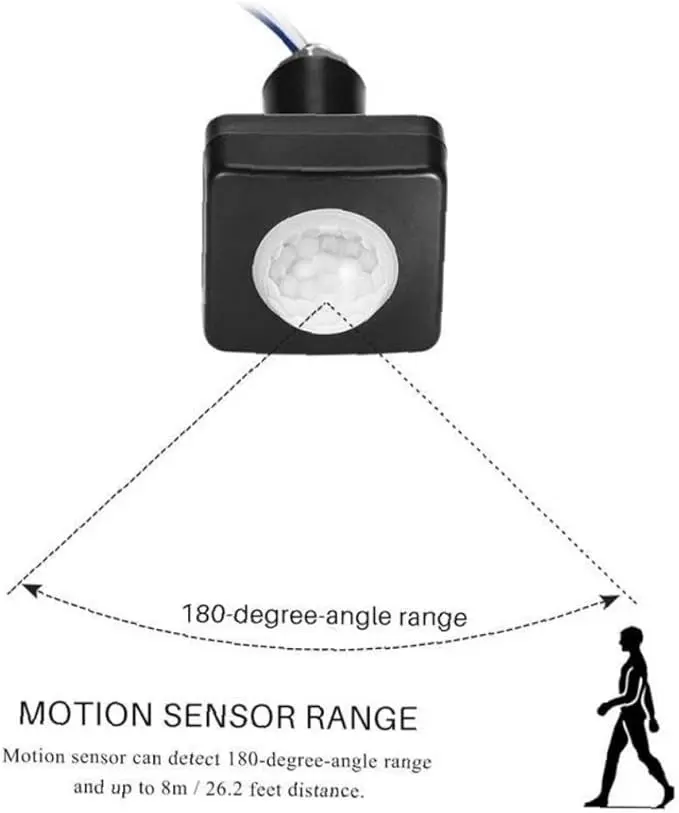

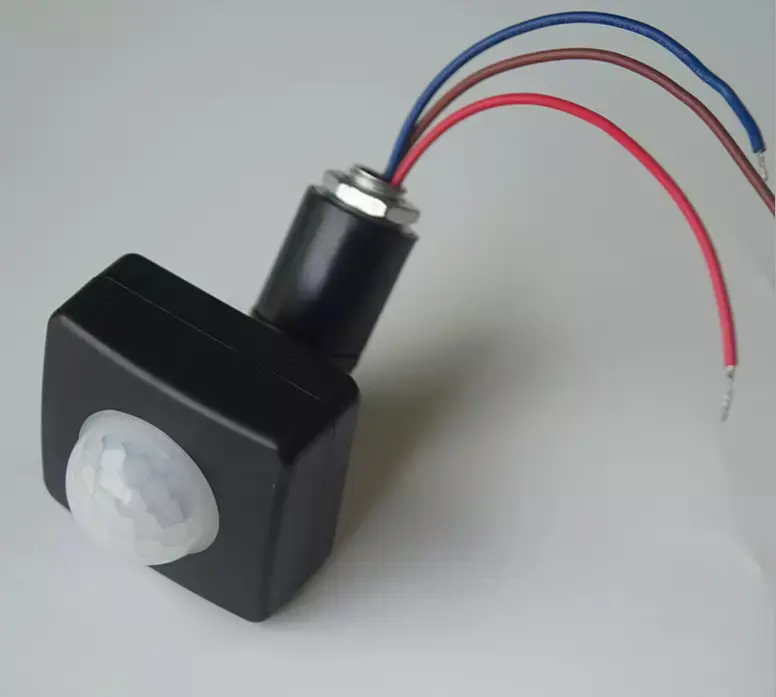

Specifications: Condition:100% Brand New Material: ABS plastic Sensing Angle:180° Voltage:AC 90-250V Sensing distance: 6 ~ 8 m (19.68 ~ 26.24 m) (25 pieces/lot) Delay time: 8s~6minutes (adjustable) Environmental Luxury:2~2000lux(adjustable) Operating Temperature: -10蚓~+40蚓 Humidity: <93%RH Installation height: 1.8~2.5m Installation mode: Opening hole (12mm) Size: Approx. 9 * 7 * 6.5cm / 3.54 * 2.76 * 2.56in Weight: Approx. 59g Wire Connection: N-blue (combine neutral line) L-Brown (Connect Hotline) Output: Red (Sensor Output Line) Red and Brown Line of Input Power Blue and Red Connection Load (Lamp)

Package includes: 1 x Automatic PIR Motion Sensor Switch

How to adjust: LUX (regulates day or night operation mode) A. When rotated to the solar icon, it will work in a whole day. B. When rotated to the moon icon, it only works at night. TIME Used to regulate the sensor delay time (8 ±2 sec ~ 6 ±1 min) The delay time refers to lighting time after leaving the sensing area. SENS It is used to adjust the sensitivity of the sensor and there is no need to regulate in ordinary circumstances.
