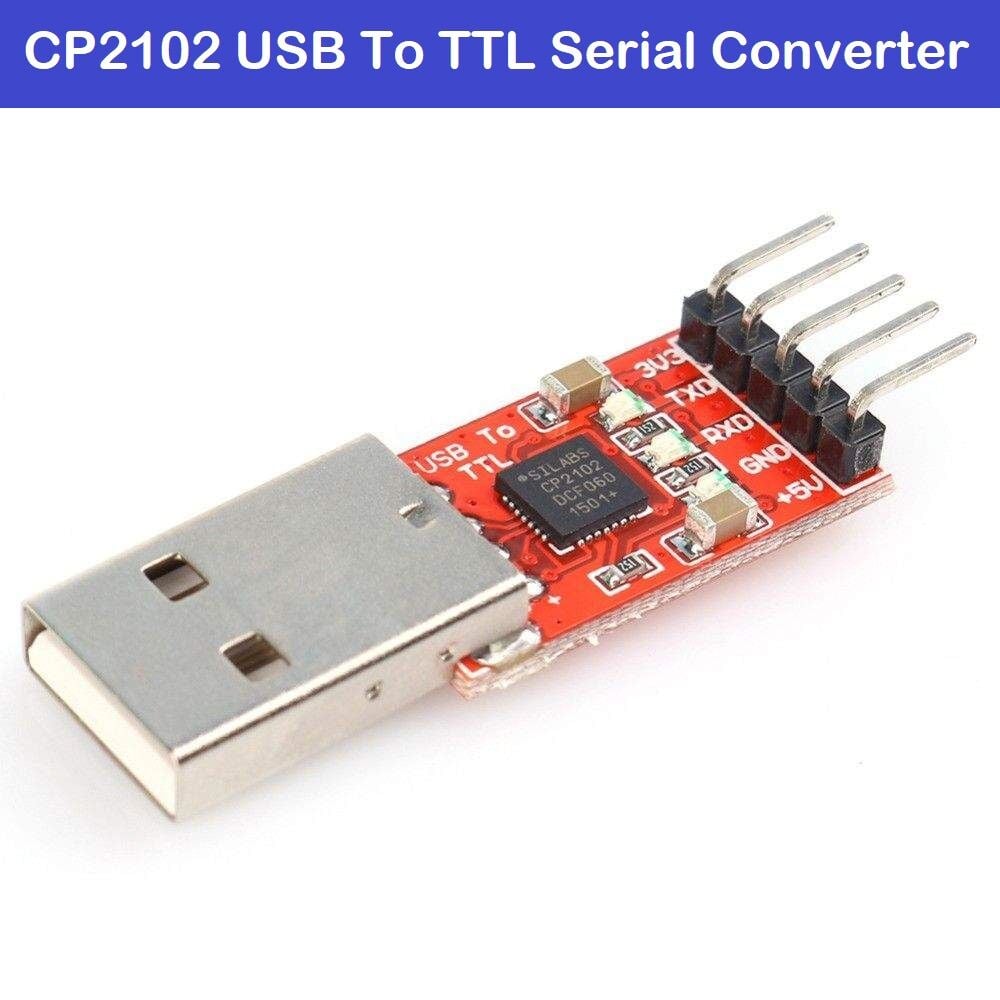

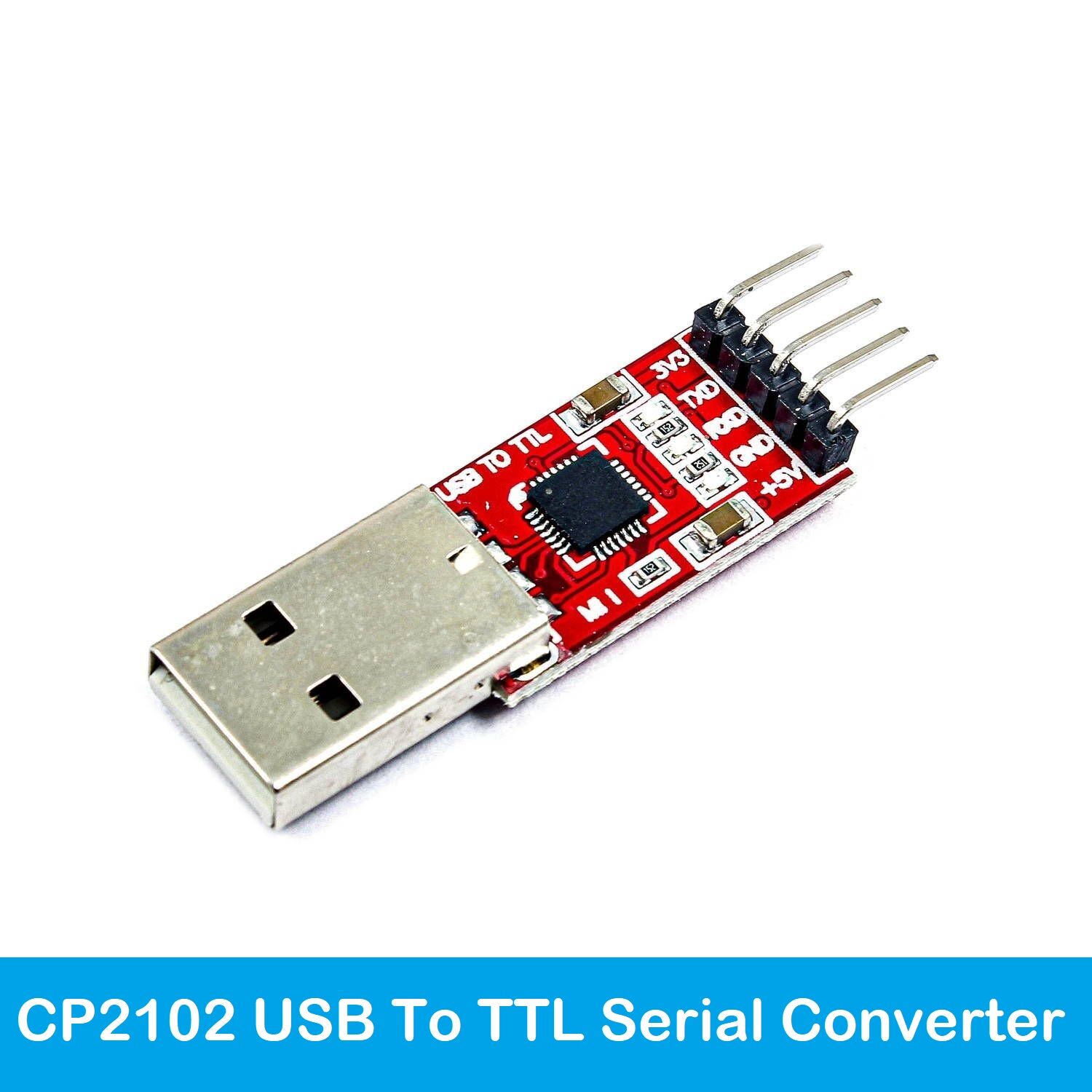

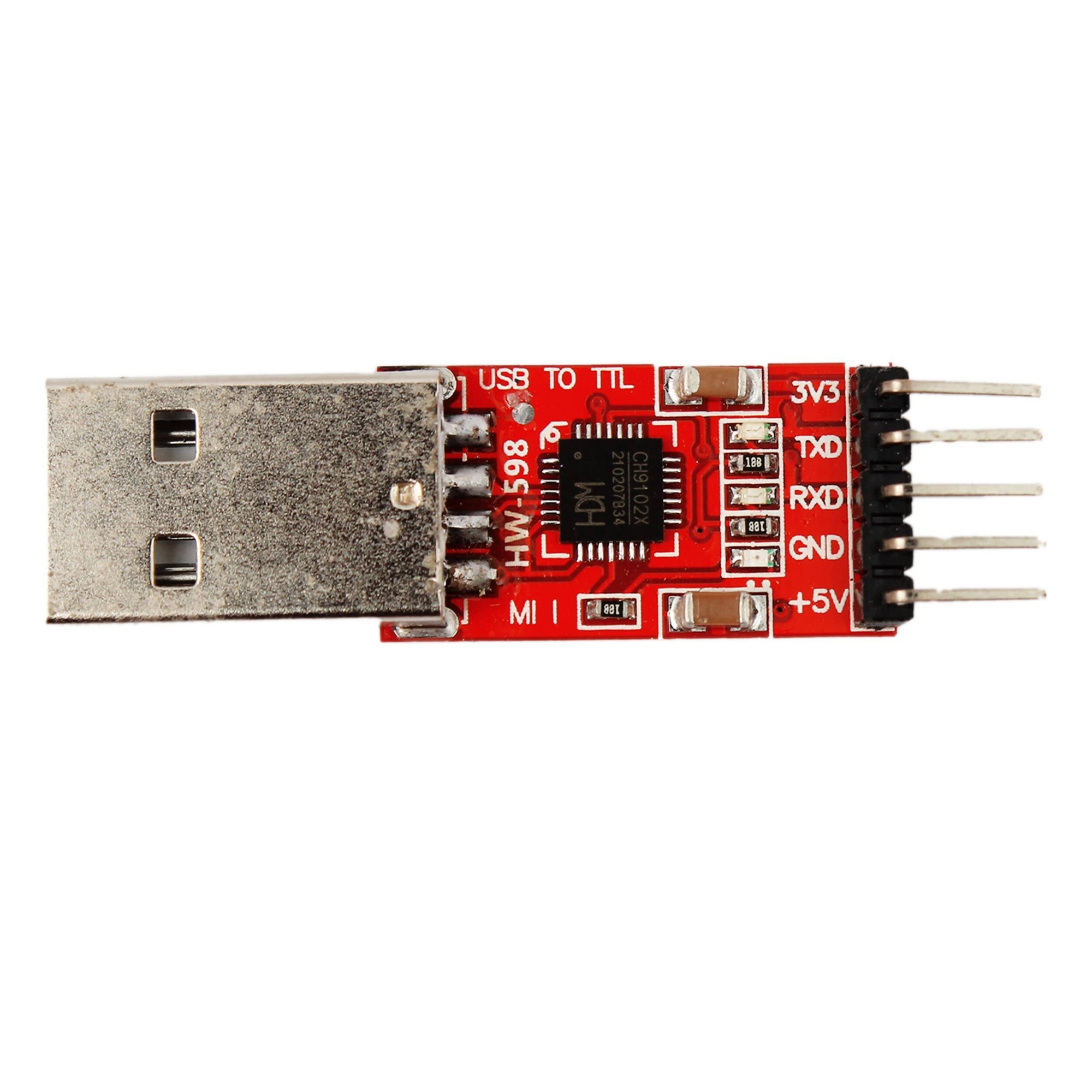

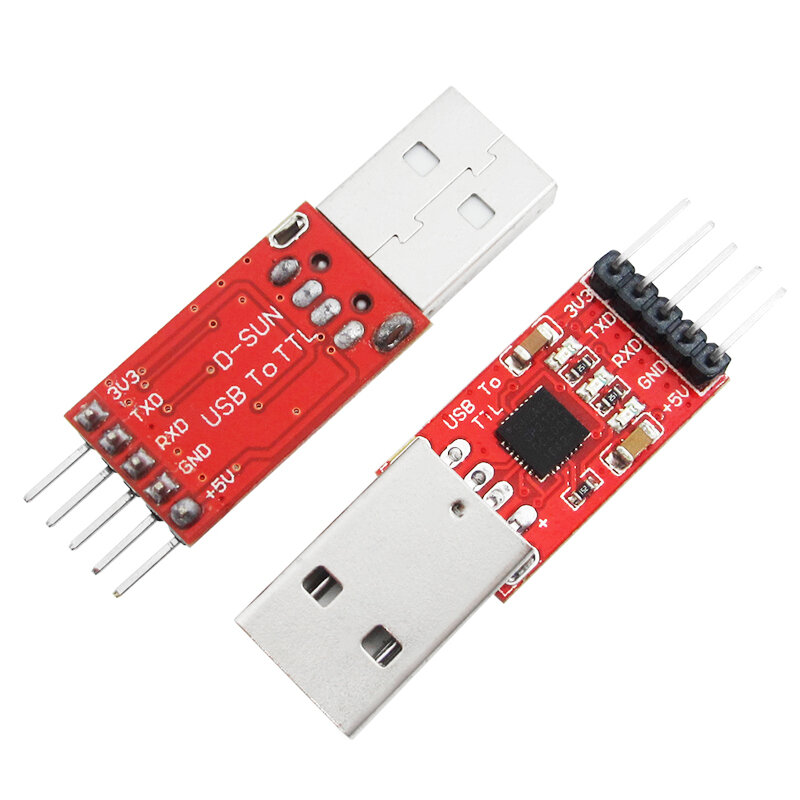

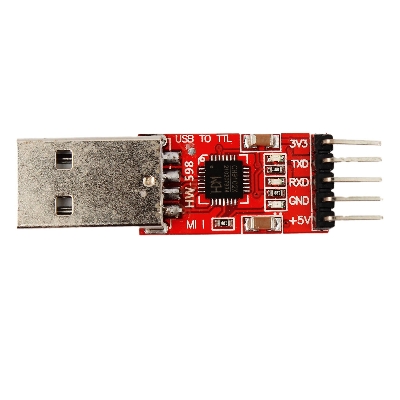

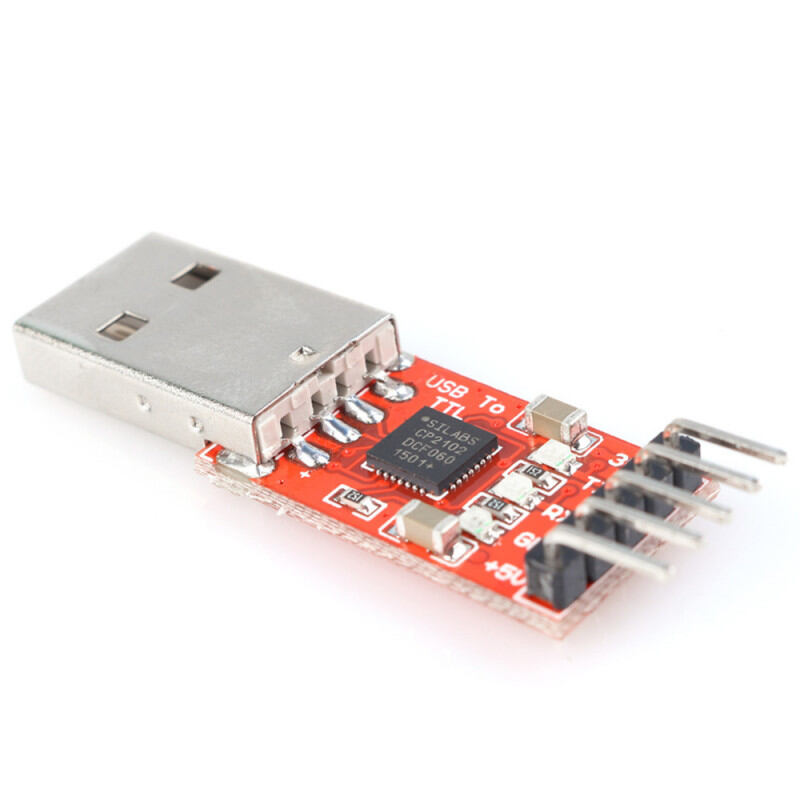

Avant-garde - CP2102 CP-2102 2102 5Pin Serial Converter USB 2.0 To TTL UART 5 Pin Serial Convertor STC Replace FT232 Module For

Brand
Category: Computers, Components & Accessories
SKU: ELPB1015681
Manufacturer: No Brand
Seller: Electronics Parts BD
Tk 471
0 review(s)

Call For Order : 09613-800800

Description: Serial Converter CP2102 USB 2.0 To TTL UART 5 Pin Serial Convertor STC Replace FT232 Module

CP2102 CP-2102 2102 5Pin Serial Converter USB 2.0 To TTL UART 5 Pin Serial Convertor STC Replace FT232 Module For Arduino DIY Kit Electrical Circuitry & Parts

This is an USB2.0 to TTL UART Converter module which is based on CP2102 Bridge by SiLabs. This module can be used with Laptop's which don't have standard serial port. This module creates a virtual COM port using USB on your computer which can support various standard Baud Rates for serial communication.You just need to install the driver using a setup file which automatically installs correct driver files for Windows XP/Vista/ 7. After driver installation, plug the module into any USB port of your PC. Finally a new COM port is made available to the PC. The feature which makes it more convenient is the TTL level data i/o. So you don't need to make aRS232 to TTL converterusing chips like MAX232. The Rx and Tx pin can be connected directly to the MCUs pins (assuming 5v i/o).

Features:

This is a USB 2.0 to TTL UART 6PIN CP2102 Module Serial Converter. Connect MCU easily to your computer!Stable and reliable chipset CP2102USB specification 2.0 compliant with full-speed 12MbpsStandard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5VAll handshaking and modem interface signalsBaud rates: 300 bps to 1.5 MbpsByte receive buffer; 640 byte transmit bufferHardware or X-On/X-Off handshaking supportedEvent character support Line break transmissionUSB suspend states supported via SUSPEND pinsTemperature Range: -40 to +85Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40

Specifications:

Stable and reliable chipset CP2102.USB specification 2.0 compliant with full-speed 12Mbps.Standard USB type A male and TTL 6pin connector.5 pins for 3.3V,TXD, RXD, GND & 5V.Baud rates: 300 bps to 1.5 MbpsByte receive buffer; 640 byte transmit buffer.Hardware or X-On/X-Off handshaking supported.Event character support Line break transmission.USB suspend states supported via SUSPEND pins.Temperature Range: -40 to +85.Size: 42mm X 15mm.Weight: 4g

Pinouts:-

TX = Connect to Transmit Pin(TXD) of Micro controller. This pin is RX pin of CP2102 on board.RX = Connect to Receive Pin(RXD) of Micro controller. This pin is TX pin of CP2102 on board.RST = Normally Unconnected. Reset Pin for CP2102. Initiate a system reset by driving this pin low for atleast 15 µs.GND = Should be common to microcontroller ground.3V3 = Optional output to power external circuit upto 50mA.5V = Optional output to power external circuit upto 100mA

Note:

Due to hand measure, the size may have 1-4 cm errorDue to Different Monitor, the color may have differenceDue to long shipping, the item may damage in transit, if the item damage, pls contact us firstly immediately before leave feedback, thanks for your understanding

Package Included:

1 x Serial Converter CP2102 USB 2.0 To TTL UART 5 Pin Serial Convertor STC Replace FT232 Module
