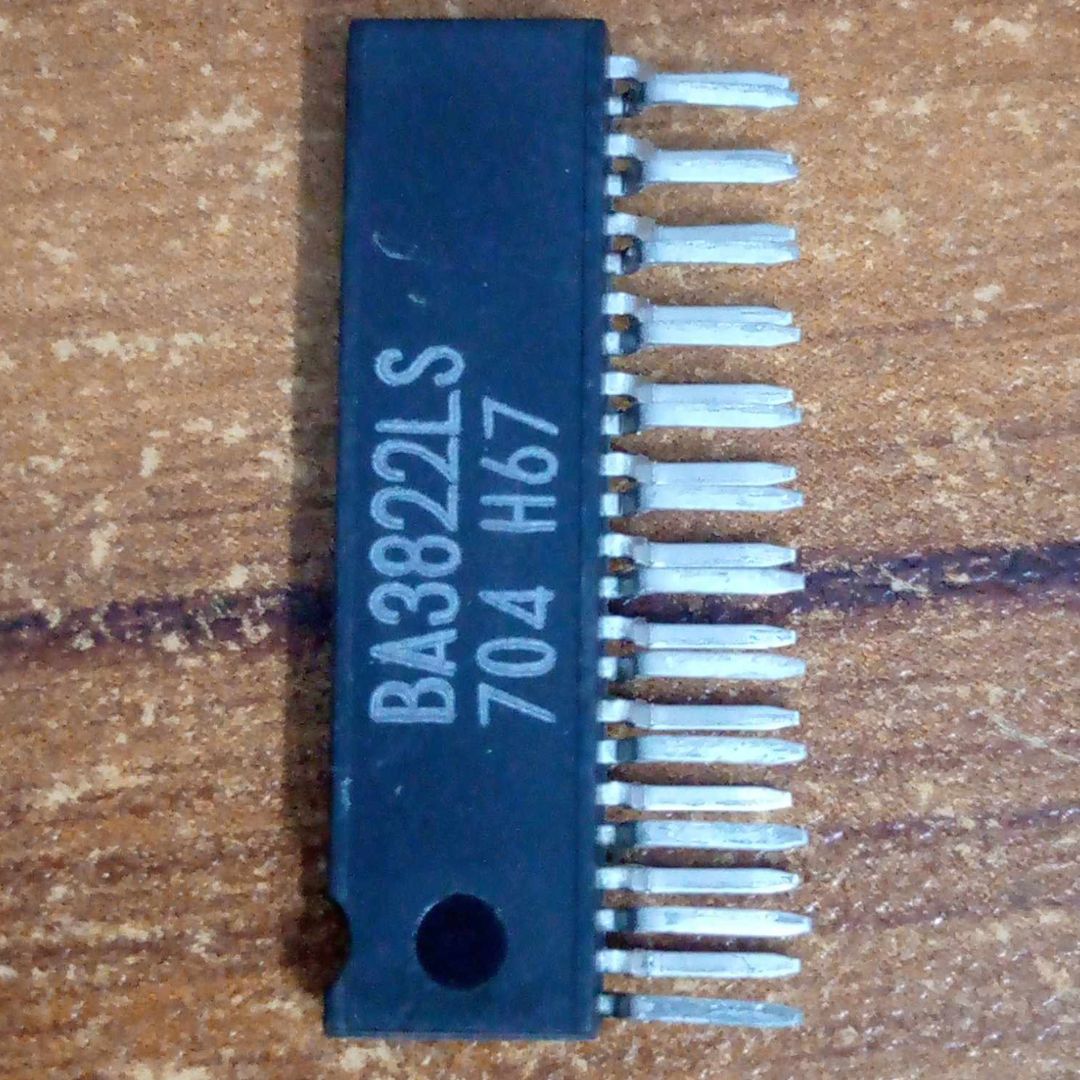

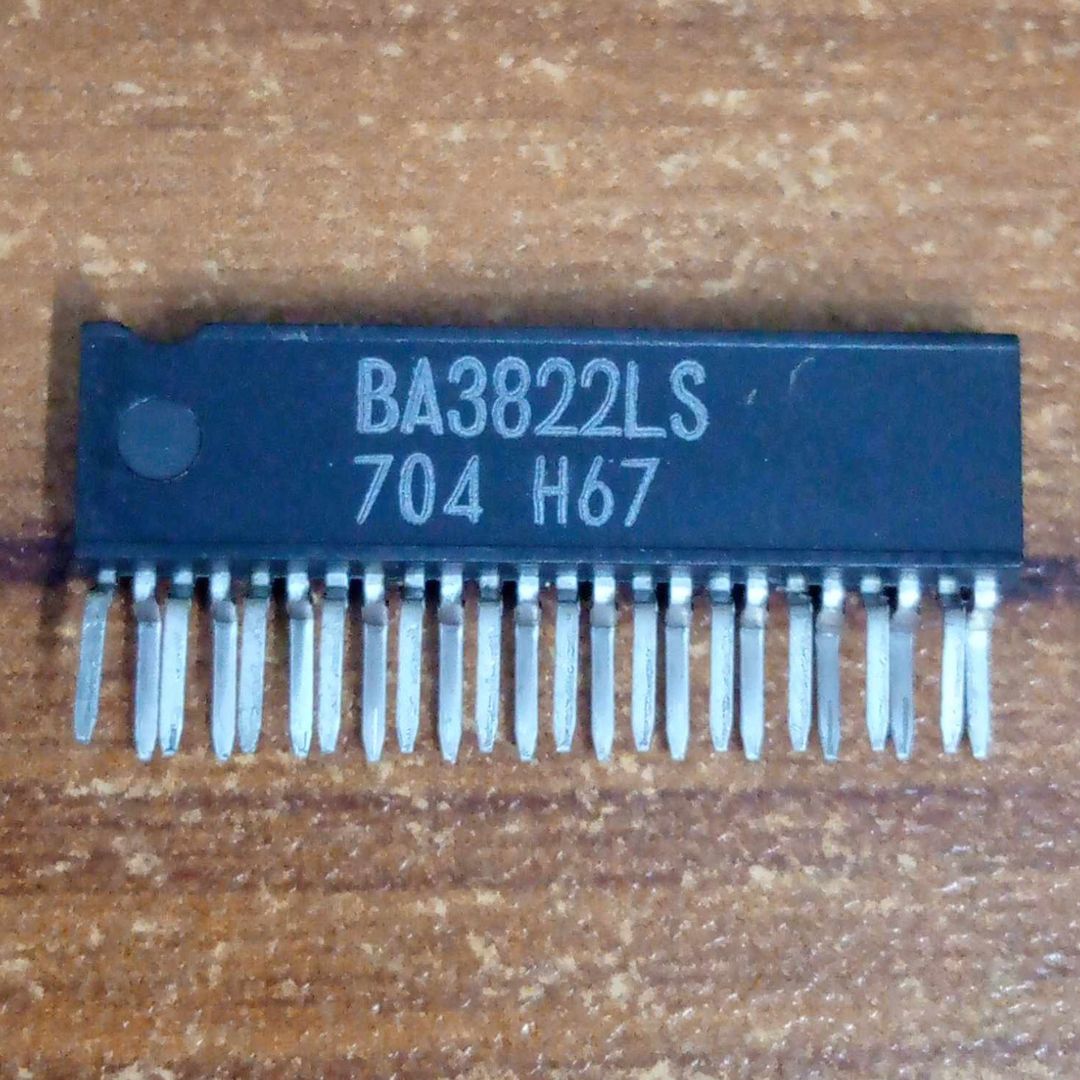

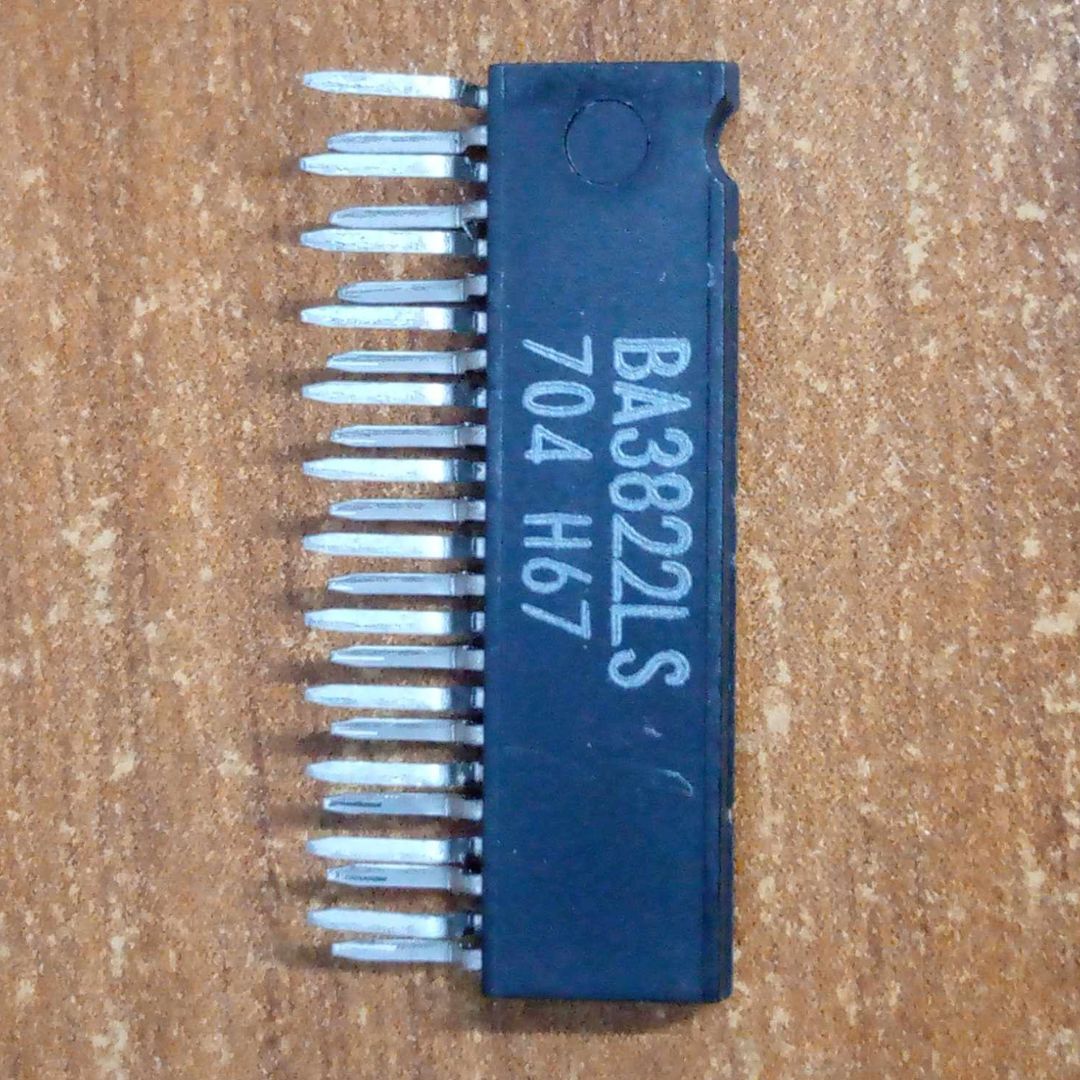

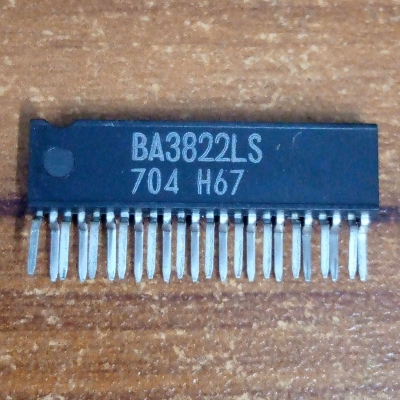

Descriptions: BA3822 5-Channel Stereo Graphic Equalizer IC

BA3822 BA3822LS BA3822L BA-3822 3822 SQL-24 IC 24Pin Leads 5-Channel Stereo Graphic Equalizer IC Home Entertainment & Audio Power Amplifiers

The BA3822LS are monolithic, five-point stereo graphic equalizer ICs. Each IC has two channels, and the five center frequencies for each channel are independently set using external capacitors. These ICs feature a wide operating power supply voltage range (V CC = 3.5V to 14V), and are available in compact 24-pin SZIP and SSOP packages, depending on the type. This makes them an ideal choice for home stereo systems, radio cassette players, and car stereos.

Specifications:

• State: New
• Model Number: BA3822
• Type: Voltage regulator
• Origin: China
• Wide operating power supply voltage range: 3.5~14V
• Low current dissipation: I Q = 7mA
• Allows construction of a five-point stereo graphic equalizer with a single IC

• State: New
• Model Number: BA3822
• Type: Voltage regulator
• Origin: China
• Wide operating power supply voltage range: 3.5~14V
• Low current dissipation: I Q = 7mA
• Allows construction of a five-point stereo graphic equalizer with a single IC
