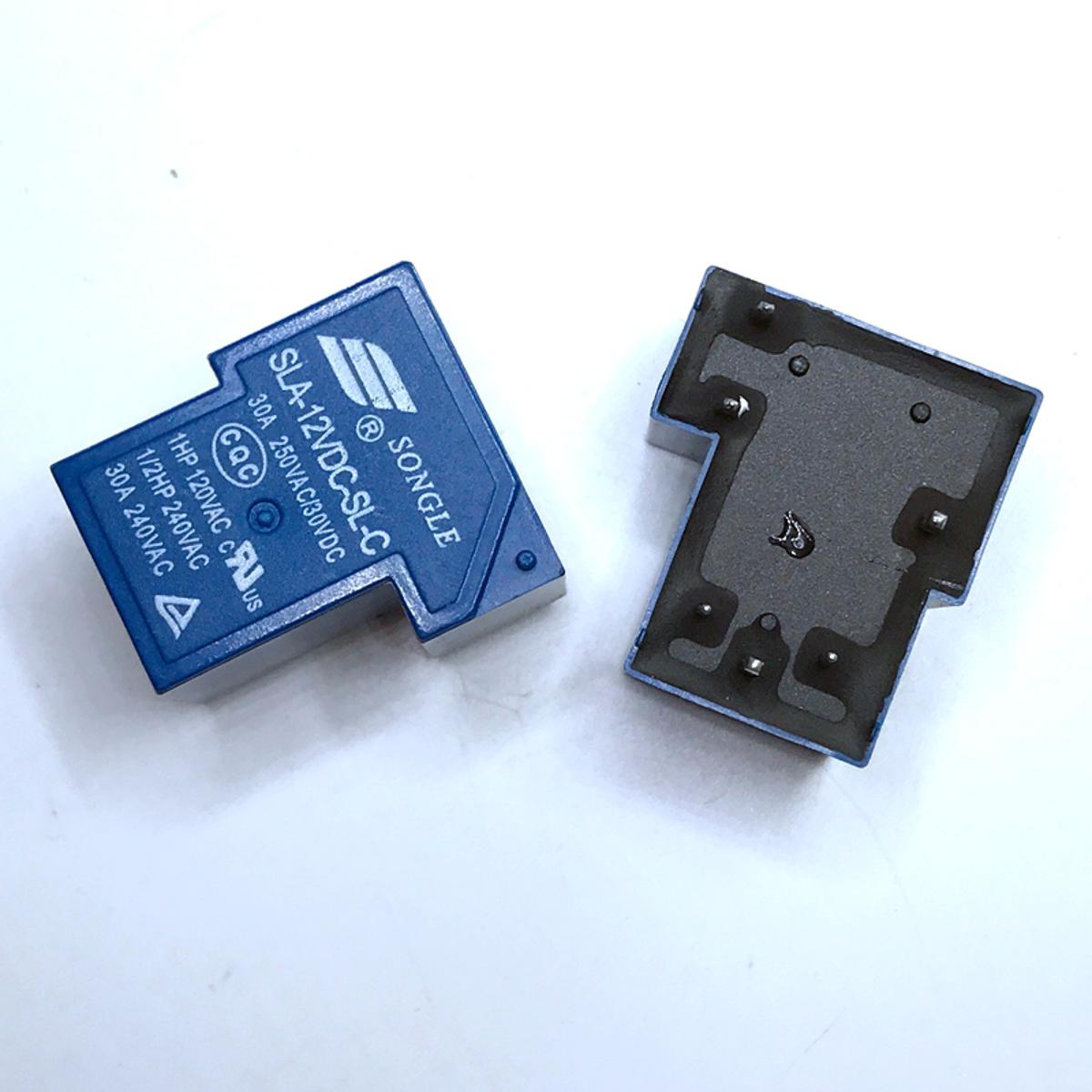

Description: SLA-12VDC-SL-C Heavy-Duty Relay 30A

Heavy-Duty PCB Relay SPDT. PCB Relays 30A DC Coil SPST-NO 1000mW - T90A.

• - Durable PCB Board and Electronic Components.Pull-in time (at rated voltage) ≤ 10ms; release time (at rated voltage) ≤ 10ms.
• - Simple relay magnetic circuit to meet low cost of mass production.Specially designed for use with high-density circuit boards.
• - Can set high or low level trigger with jumper, to meet the demand of more trigger applications.
• - Small PCB soldering, 16A/20A/30A multiple load options, ambient temperature can meet +85°C/+105°C.
• - Maximum switching power 7200VA, maximum switching current 30A, maximum switching voltage 250V/AC, contact resistance 100mΩ

Features:

• SONGLE Power Relay SLA-12VDC-SL-C DC 12V Type T93 30A
• 12VDC 30A 250VAC 30VDC
• 6 pin
• PCB Type
• control input : 12VDC
• Max Load rating : 30A at 250AC ,30A at 30VDC
• SPST 1NO 1NC

Specification:

• - Material: Plastic
• - Size: 27.6 x 32 x 20.4mm / 1.09 x 1.26 x 0.80inch

Documents:

• JQX-105F

Package Include:

• 1 x SLA-12VDC-SL-C Heavy-Duty Relay 30A

• SONGLE Power Relay SLA-12VDC-SL-C DC 12V Type T93 30A
• 12VDC 30A 250VAC 30VDC
• 6 pin
• PCB Type
• control input : 12VDC
• Max Load rating : 30A at 250AC ,30A at 30VDC
• SPST 1NO 1NC
