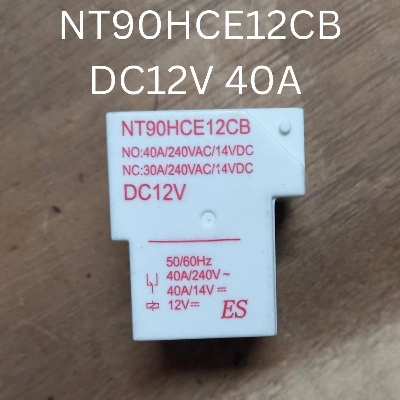

Description: White Bang Relay 12V NT90HCE12CB DC12V 40A 250VAC 6 Pin

White Bang Relay 12V NT90HCE12CB DC12V 40A 250VAC 6 Pin Coil SPDT Power Relay 9012 PCB Mount Auto Universal T90 Power Relays DC 12V Relay Switches

This relay can be used to switch High power (whether AC or DC) to a load by driving the relay coil with a far much lower voltage and current. When Current flows through the relay coil, It makes or breaks its contacts through electromagnetic induction. A relay contacts comprises of the Normally-Open (NO) and Normally Closed (NC) contacts. These refer to the state of the relay contacts when the relay coil is not energized. When driving a relay coil from a digital output or transistor, always connect a diode in reverse bias across the coil of the relay in other to avoid the resulting back-emf that appears across the coil of the relay when its turned off from damaging the digital device or transistor.

Features:

• We send all goods are available tracking no.
• If you have any questions, pls feel free to contact us, we would be happy to help you anytime.
• Songle power relays with a coil rated voltage of 12V DC and SPDT contacts with a 30A rating.
• The relays have 6 pins and are very good quality with a long operational life. Compact and sealed construction.
• It is especially suitable for harsh environments such as corrosion, humidity, dust, explosion protection, and frequent switching.
• It can control small motors, incandescent lamps, indicator lights, low-power power supplies, intelligent instrumentation and various solenoid valves, etc. It can also be used as a pusher for high-power electromagnetic contactors.
• Widely used in the field of petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, entertainment facilities, etc.

Specification:

• Product Name Power Relay
• Usage: General Purpose
• Model: NT90HCE12CB
• Material: Plastic
• Contact Capacity 40A 250V AC
• Coil rated voltage: 12V DC
• Max Switching Current: 30A
• Number of Pins: 6 Pin
• SPDT Contacts
• Size (Approx.) 3.1 x 2.7 x 2cm
• Color White
• Weight 25g

• Product Name Power Relay
• Usage: General Purpose
• Model: NT90HCE12CB
• Material: Plastic
• Contact Capacity 40A 250V AC
• Coil rated voltage: 12V DC
• Max Switching Current: 30A
• Number of Pins: 6 Pin
• SPDT Contacts
• Size (Approx.) 3.1 x 2.7 x 2cm
• Color White
