Battery Tester 1-8S Lipo Battery Low Voltage Alarm Indicator Meter Checker Tester RED LED Digital Display 1S-8S Li-Po Battery Voltage Tester Indicator Checker Detector DC For 2S 3S 4S 5S 6S 8S Board Module BB Speaker Electrical Circuitry & Parts

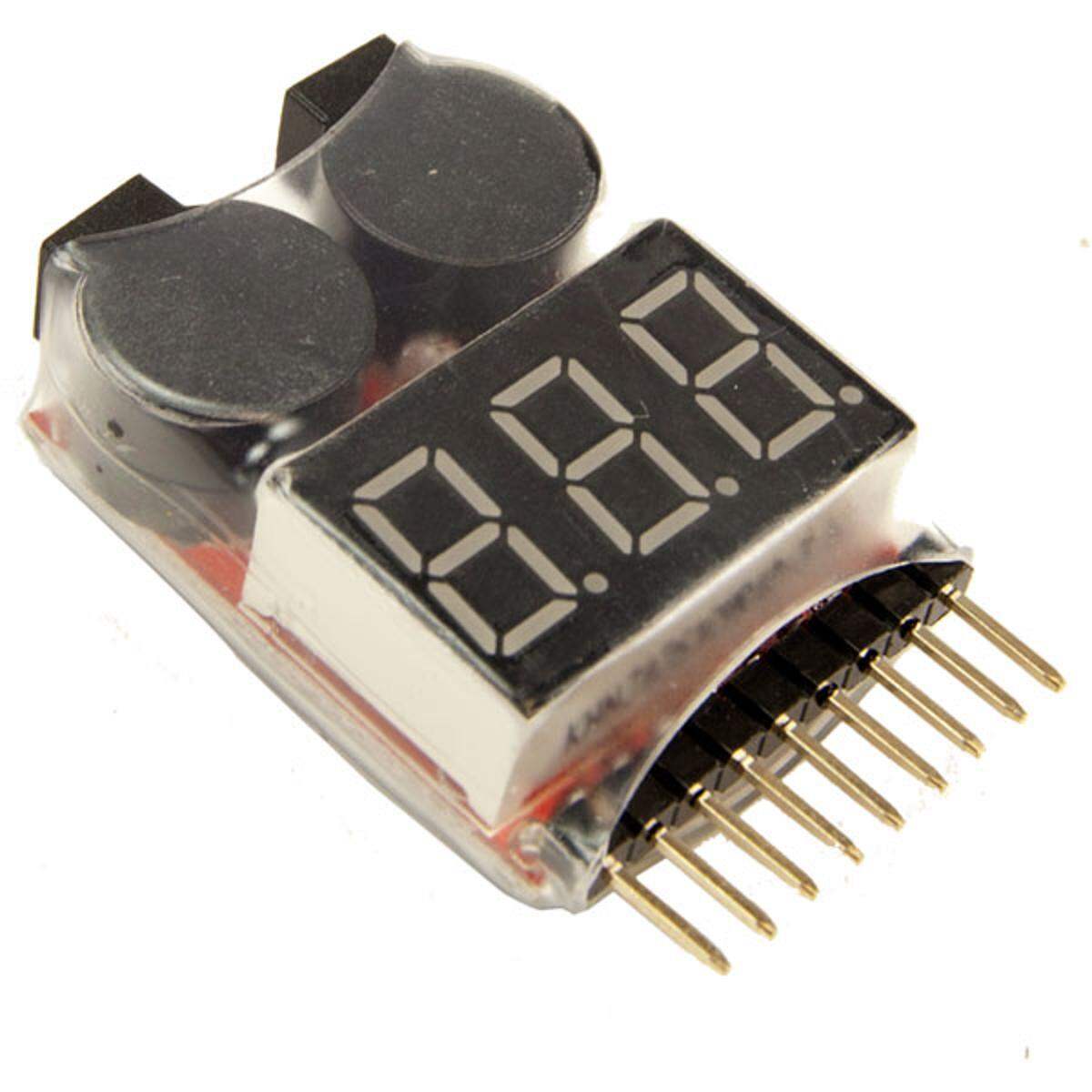

Description: Li-po Battery Tester 1-8S Lipo Battery Voltage Tester Volt Meter Indicator Checker

Battery Tester 1-8S RC Lipo Battery Low Voltage Alarm Indicator Meter Checker Tester Red LED Digital Display 1S-8S Li-Po Battery Voltage Tester Indicator Checker Detector DC For 2S 3S 4S 5S 6S 8S Board Module BB Speaker

Managing your LiPo battery is a must. If you let your battery get to low you can diminish the capacity of your battery or even render it unusable. That’s where our 1-8S LiPo Battery Voltage Tester/Monitor comes in. First, this unit can be used to test your battery’s voltage. It will display the total voltage of your battery, then cycle through and display the voltage of each individual cell. Secondly, the unit will monitor your battery and sound an alarm when one if its cells falls below a preset voltage. You can use the unit’s pushbutton to set that voltage anywhere from 2.7-3.8V, or turn it off completely. This monitor mode will only work for 2-8 cell batteries.

Specification:

Use for 1~8S Lipo/Li-ion/LiMn/Li-Fe

Voltage detection precision:±0.01V

Unit voltage display range:0.5~4.5V

Total voltage display range:0.5~36V

1S test mode voltage range:3.7~30V

Low voltage alarm mode for 2~8S

Alarm set value range:OFF~2.7~3.8V

Dimension:40 x 25 x 11mm

Input: 1S-8S Battery

Battery type: Lipo/LiFe/Li-ion/LiMn

It has a Buzzer Alarm for low voltage indication.

Useful for measuring each cell voltage.

Cell Voltage Display Range: 0.5v-4.5v

Total Voltage Display Range: 3.7-36v

Alarm set values: Off or 2.7-3.8v

Applicable for:

RC Quadcopter, helicopter, multi copter, car, boat and airplane,1S-8S / Lipo / Li-ion / Li Mn / Li-Fe battery.

Features:

This product is using for detecting 1S-8S lithium battery

Detect the voltage of each battery core automatically, support reverse connection protection.

To know the working state of your battery anytime, protect the battery from overcharge and over discharge.

The red LED will flash, the buzzer will beeping when the voltage is below the set point.

The factory default setting is 3.3V, press the button to change the voltage setting, and it will save your current setting automatically.

Input: 1S-8S Battery

It has a Buzzer Alarm for low voltage indication.

Useful for measuring each cell voltage.

It has a mode button at the top for setting the desired voltage value.

Package Included:

1 x Li-po Battery Tester 1-8S Lipo Battery Voltage Tester Volt Meter Indicator Checker
