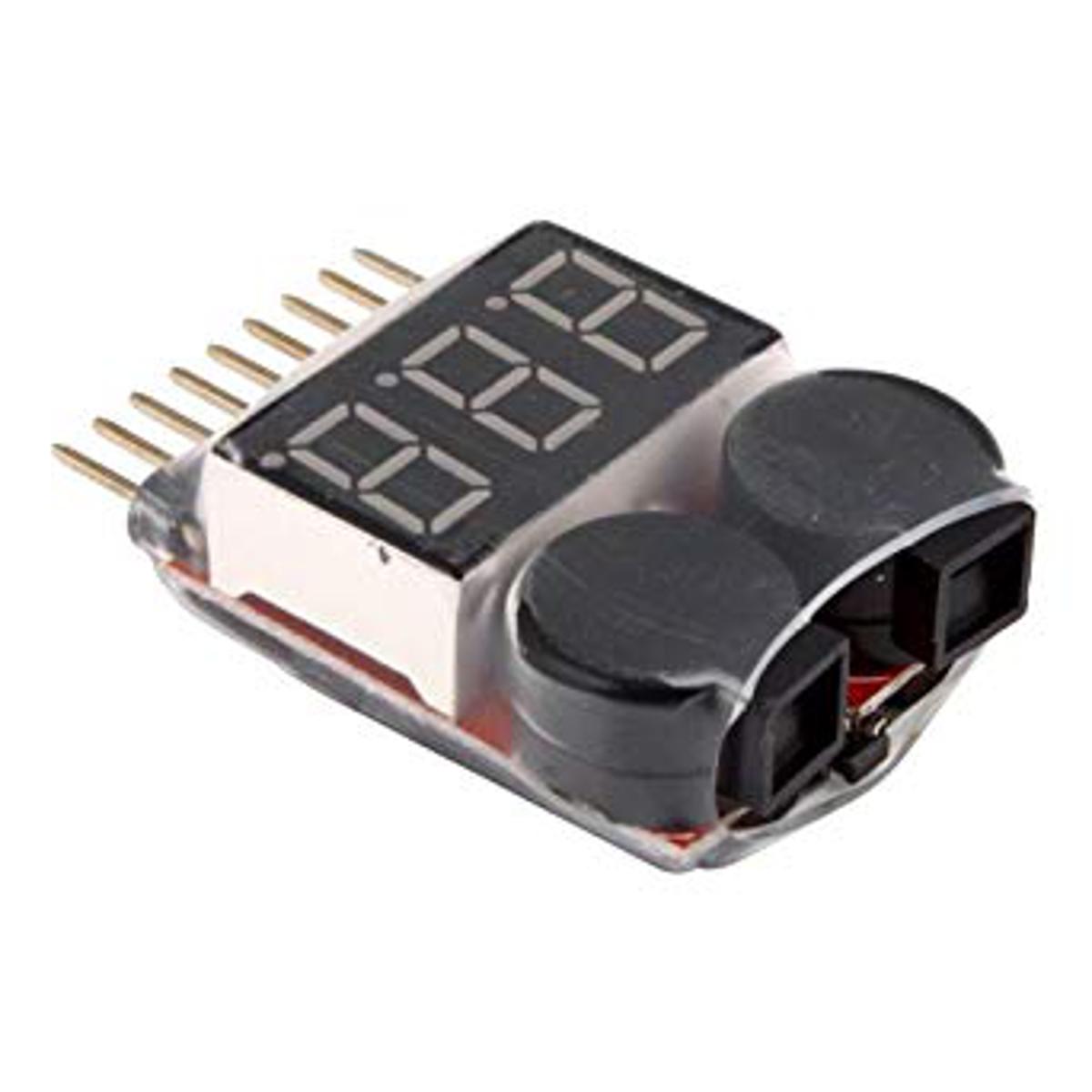

Description:1-8S Lipo Battery Voltage Tester

Managing your LiPo battery is a must. If you let your battery get to low you can diminish the capacity of your battery or even render it unusable. That’s where our1-8S LiPo Battery Voltage Tester/Monitorcomes in. First, this unit can be used to test your battery’s voltage. It will display the total voltage of your battery, then cycle through and display the voltage of each individual cell. Secondly, the unit will monitor your battery and sound an alarm when one if its cells falls below a preset voltage. You can use the unit’s pushbutton to set that voltage anywhere from 2.7-3.8V, or turn it off completely. This monitor mode will only work for 2-8 cell batteries.

Specification:

Use for 1~8S Lipo/Li-ion/LiMn/Li-FeVoltage detection precision:±0.01VUnit voltage display range:0.5~4.5VTotal voltage display range:0.5~36V1S test mode voltage range:3.7~30VLow voltage alarm mode for 2~8SAlarm set value range:OFF~2.7~3.8VDimension:40 x 25 x 11mmWeight:9g

Appliable for:

RC Quadcopter, helicopter, multicopter,car,boat and airplane,1S-8S / Lipo / Li-ion / Li Mn / Li-Fe battery.

Features:

This product is using for detecting 1S-8S lithium battery

Detect the voltage of each battery core automatically, support reverse connection protection.To know the working state of your battery anytime, protect the battery from overcharge and over discharge.The red LED will flash,the buzzer will beeping when the voltage is below the set point.The factory default setting is 3.3V, press the button to change the voltage setting, and it will save your current setting automatically.

Package Included:

1 x Voltage Buzzer Alarm

• Use for 1~8S Lipo/Li-ion/LiMn/Li-Fe
• Voltage detection precision:±0.01V
• Unit voltage display range:0.5~4.5V
• Total voltage display range:0.5~36V
• 1S test mode voltage range:3.7~30V
• Low voltage alarm mode for 2~8S
• Alarm set value range:OFF~2.7~3.8V
• Dimension:40 x 25 x 11mm
• Weight:9g
