Description: BC107 NPN General Purpose Transistor

BC107 BC-107 BC 107 NPN Transistor 45V 100mA General Purpose Transistor TO-18 BJT NPN Silicon Planar Epitaxial NPN Transistors

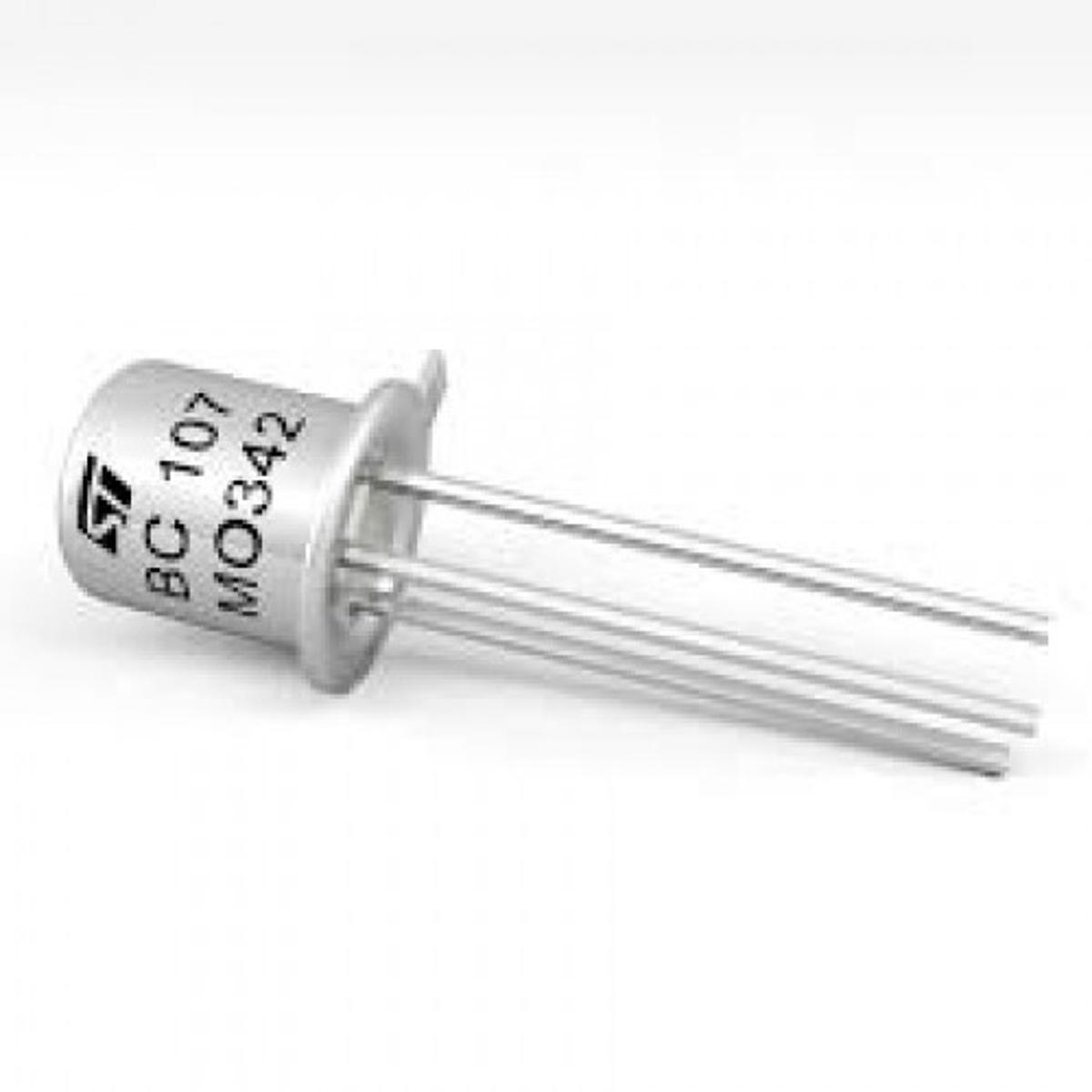

TheBC107is a small single NPN Transistor available inTO-18 metal can package. These transistors are age old and have been used in low noise and low signal designs. Today a lot new transistors have come asreplacement for BC107, but still the transistor can be found in market for its legacy.

The BC107 is silicon planar epitaxial NPN transistors in TO-18 metal case. They are suitable for use in driver stages, low noise input stages and signal processing circuits for television receivers.

Pin Configuration:

Features:

• Small Signal NPN Transistor
• Current Gain (hFE): 450 (maximum)
• Continuous Collector current (IC) is 100mA
• Collector-Emitter voltage (VCEO) is 45V
• Collector-Base voltage (VCB0) is 50V
• Emitter Base Voltage (VBE0) is 6V
• Available in To-18 Metal can Package

Note:BC107 datasheet

Alternative NPN Transistors

BC547,2N3904,

BC107 Equivalent

BC549

PNP Complementary for BC107

BC177

Where to use BC107 Transistor

TheBC107is a low signal NPN which is known for its low noise operations making it famously used in signal processing circuits and television receivers. The transistor is still available in market due to its legacy but you will find better modern transistors as replacement for BC107.

Brief Description on BC107 Transistor

BC107 is a NPN transistor hence the collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to base pin. BC107 has a gain value hfeof 50; this value determines the amplification capacity of the transistor. The maximum amount of current that could flow through the Collector pin is 100mA, hence we cannot connect loads that consume more than 100mA using this transistor.

When this transistor is fully biased then it can allow a maximum of 100mA to flow across the collector and emitter. This stage is calledSaturation Region. When base current is removed the transistor becomes fully off, this stage is called as theCut-off Region.

Applications:

• Driver Modules like Relay Driver, LED driver etc..
• Amplifier modules like Audio amplifiers, signal Amplifier etc..
• Darlington pair

Package Include:

• 1 x BC107 NPN General Purpose Transistor

• Type – NPN
• Collector-Emitter Voltage: 45 V
• Collector-Base Voltage: 50 V
• Emitter-Base Voltage: 6 V
• Collector Current: 0.1 A
• Collector Dissipation – 0.3 W
• DC Current Gain (hfe) – 110 to 450
• Transition Frequency – 150 MHz
• Noise Figure – 2 dB
• Operating and Storage Junction Temperature Range -65 to +175 °C
• Package – TO-18
