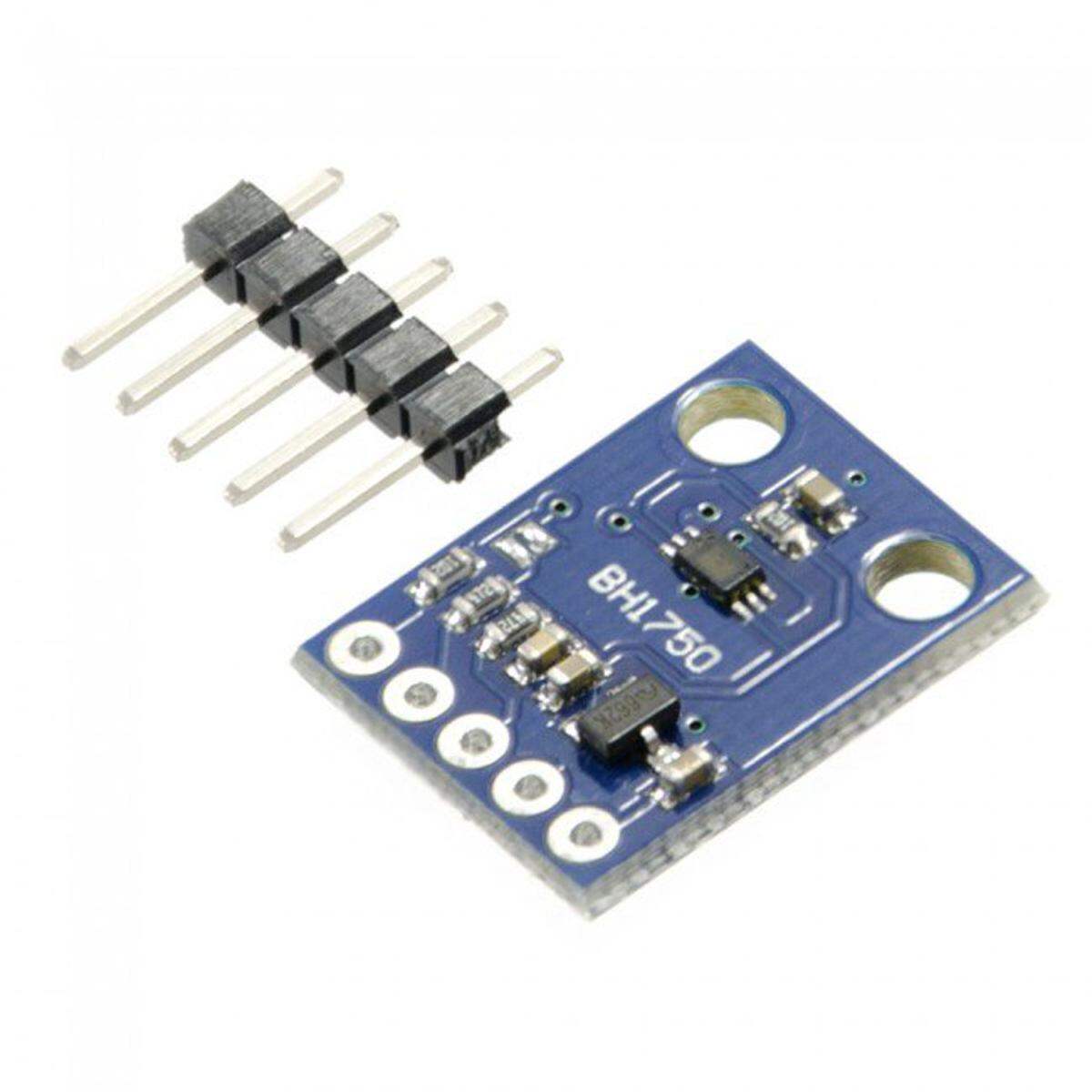

BH1750FVI Digital Light Intensity Sensor Module

Description: BH1750FVI Digital Light Intensity Sensor Module

BH1750FVI Is a Digital Light sensor , which is an digital Ambient Light Sensor IC for I2C bus interface. This IC is the most suitable to obtain the ambient light data for adjusting LCD and Keypad backlight power of Mobile phone. It is possible to detect wide range at High resolution.

Features:

I2C bus Interface ( f / s Mode Support )Spectral responsibility is approximately human eye responseIlluminance to Digital ConverterWide range and High resolution. ( 1 – 65535 lx )Low Current by power down function50Hz / 60Hz Light noise reject-function1.8V Logic input interfaceLight source dependency is little. ( ex. Incandescent Lamp. Fluorescent Lamp. Halogen Lamp. White LED. Sun Light )It is possible to select 2 type of I2C slave-address.Adjustable measurement result for influence of optical window( It is possible to detect min. 0.11 lx, max. 100000 lx by using this function. )The influence of infrared is very small.

Specifications:

Model No: GY-302Operating voltage (VCC): 3 V to 5VOperating current: 120uA (typ) 190uA (max)Operating Temperature: -40°C ~ 85°CSensor Resolution: 16 BitsPeak wavelength: 560nmInterface Type: I2CI2C Device Address: 0x23 (when ADDR = LOW) or 0x5c (when ADDR = HIGH)On board Level Translators: No (requires level translator for 5V logic interface)I2C Maximum Clock frequency: 400KHzPCB size: 19.25 mm x 14.4 mmWeight : 1.1g (including header)

Pinouts:

VCC : Power Connection (3V – 5V)GND: 0VSCL: I2C Clock InputSDA: I2C Data IOADDR: I2C Address Configuration Input

Documents & Downloads:

BH1750Arduino LibraryRaspberry Pi Light Sensor InterfacingExamplebh1750fvi-e-186247

Package Includes:

1x GY-302 BH1750 16-Bit Serial Output Light LUX Sensor Module
