The XLamp XM-L LED is the industry’s highest performance, single-die white lighting-class LED. The XLamp XM-L is 20% more efficient than the XLamp XP-G at the same current, and can deliver 1000 lumens with 100 lumens per

watt efficacy. The XLamp XM-L LED offers Cree’s industry-leading features: wide viewing angle, symmetrical package, unlimited floor life and electrically neutral thermal path.

XLamp XM-L LEDs can enable LED light into new applications that require tens of thousands of lumens, such as high bay and high output area lighting. The XM-L is also the ideal choice for lighting applications where high light output

and maximum efficacy are required, such as LED light bulbs, outdoor lighting, portable lighting, indoor lighting and solar-powered lighting.

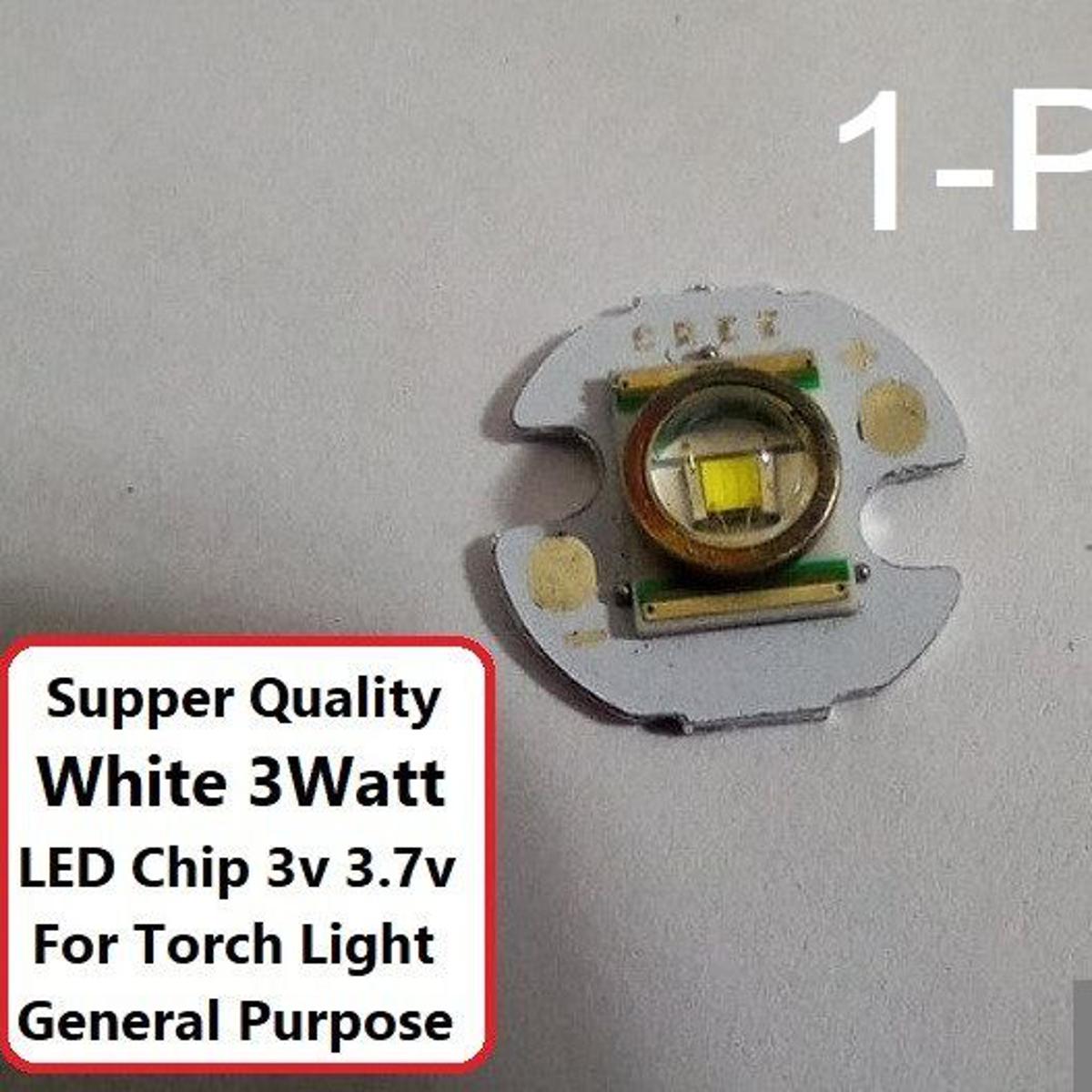

• Power: Supper Quality 3W
• PCB size: 16mm aluminum PCB
• Wavelength: 490-495nm
• DC forward voltage (VF): 3.2-3.7V
• DC Forward Current (IF): 350mA -700mA
• Usage: LED Flash Light, Torch
• Lumens: 335lm @ 0.7A, 1073lm+ @ 3A
• Light Color: 6000-6500K
• View Angle: 125 Degree
• Aluminum Base size: 16×1.5mm
• Net Weight: 1g
