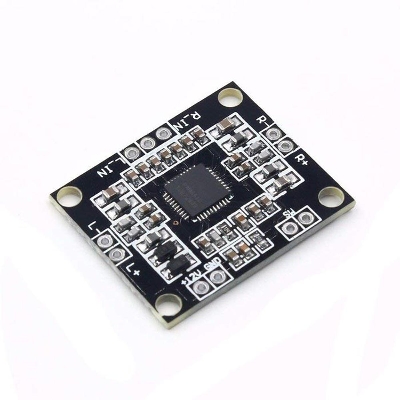

Description: PAM8610 Mini 10W+10W Stereo 2 Channel DC 12V Audio Power Amplifier Board Module

The PAM8610/HCMODU0086 is a 10W (per channel) stereo Class-D audio amplifier Module which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. Volume is set at maximum gain 32dB. The PAM8610 module runs off of a 7V to 15V (12V recommended). 0.1″ pads on the module provides interface to power, stereo audio input, mute, and left and right speakers.

Specification:

• This plate with switching function, SW short, will turn off the power amplifier
• Working Mode: Class D (PWM modulation type)
• Chip Type: PAM8610
• Power Range: DC 6V-15V (self-protection)
• Recommended Voltage: DC 12V(2A)
• Output Power: 10Wx2(8Ω) 15Wx2(4Ω)
• Frequency Response: 20HZ-15KHZ
• Static Current: 20MA (DC12V)
• SNR: 90% Recommended
• Speakers: 10-100W
• Input Impedance: 15K
• Output Impedance: 4-8Ω
• Harmonic Distortion: <0.1%
• Size: Approx. 3cm x 2.5cm/ 1.19″ x 0.98″

• Digital audio amplifier, small size but multifunction.
• Audio amplifier board – adopts PAM8610 chip, guarantees high quality sound.
• The distortion is significantly reduced, giving you great enjoyment of listening.
• Multi-Protection Overvoltage Protection, Low Voltage Protection, Overheat Protection, Short Circuit Protection.
• High performance-signal-to-noise ratio: 90%

Package Includes:

• 1 x PAM8610 Mini 10W+10W Stereo 2 Channel DC 12V Audio Power Amplifier Board Module

• This plate with switching function, SW short, will turn off the power amplifier
• Working Mode: Class D (PWM modulation type)
• Chip Type: PAM8610
• Power Range: DC 6V-15V (self-protection)
• Recommended Voltage: DC 12V(2A)
• Output Power: 10Wx2(8Ω) 15Wx2(4Ω)
• Frequency Response: 20HZ-15KHZ
• Static Current: 20MA (DC12V)
• SNR: 90% Recommended
• Speakers: 10-100W
• Input Impedance: 15K
• Output Impedance: 4-8Ω
• Harmonic Distortion: <0.1%
• Size: Approx. 3cm x 2.5cm/ 1.19″ x 0.98″
