Description: DC DC Step Up 0.9V-5V To 5V 600mAh Boost Converter Blue Color Power Supply Module

BLUE Circuit DC DC 0.9V-5V to 5V 600mAh Power Bank Charger Step Up Boost Converter Supply Voltage Module USB Output Charging Circuit Board Electronics Circuitry & Parts

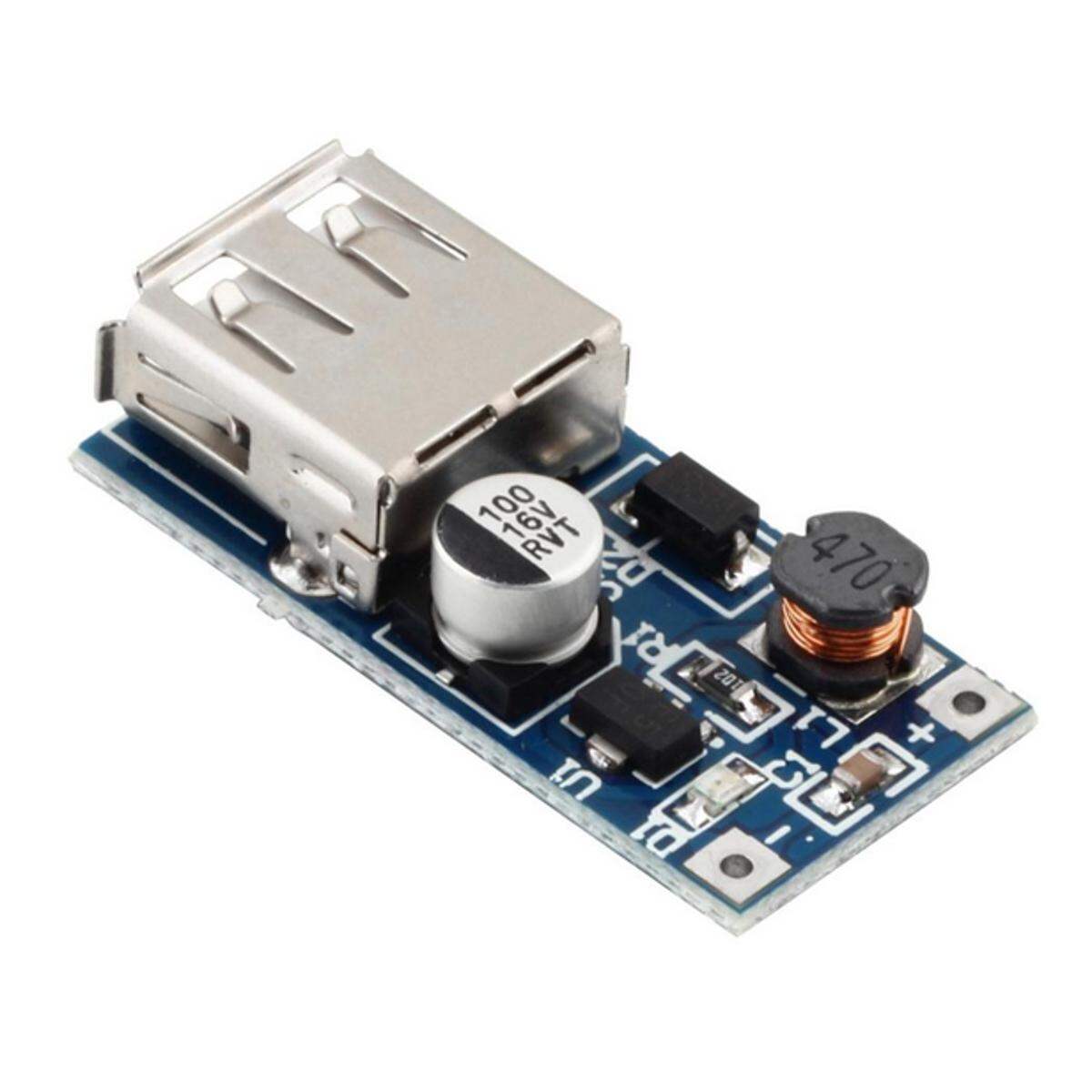

USB DC-DC Step Up Power Modulehas a switching voltage regulator on board. The board has a USB connector so it can be integrated into any system easily. Since input voltage is between 1V and 5V, Li-Po and AA batteries and other low voltage batteries can be used with the module. 5V USB output can supply up to 600mA current. Thus you can create your own power bank and make your USB powered system mobile using this module.

USB DC-DC Step Up Power Modulehas empty pins for connecting inputs. You can solder a male header to use the module with a breadboard or integrate it with other boards or you can use it by directly soldering some wires.

Specification:

Input voltage: 0.9 V ~ 5V DC

Output voltage: 5V DC

Output current: 500-600mA

Temperature Range: - 40℃ ~+85 ℃ Industrial Grade

Conversion efficiency: up to 96%

USB Port: USB female

Small dimension

PCB board Size: 35x16mm

Equip with LED working indicator

Mini PFM control

With standardUSB female base

Applications:

1. Can use it for DIY Mobile Power Supply: When you travel, you always feel that your mobile phone, MP3, MP4, PDA, PSP is not enough power, and you have extra batteries, you can consider your own DIY mobile power supply; as long as you choose this module plus your [lithium or 2-3 nickel-hydrogen power], you can output 5V voltage for your mobile phone, MP3, MP4, PDA, PSP charging, very simple oh.

2. Can use it for Voltage adjustment: If you need different voltage power supply in product design and 5V power supply for equipment, then choosing this module will be your best choice.

3. Can use it for Voltage stabilized power supply: When your power supply is very unstable, high and low, but when your equipment needs 5V power supply, then choose our module will be your best choice.

Note: There is no short circuit protection. If you need short circuit protection, please connect the self-recovery fuse in series at the input end.

Package content:

1 x DC DC Step Up 0.9V-5V To 5V 600mAh Boost Converter Blue Color
