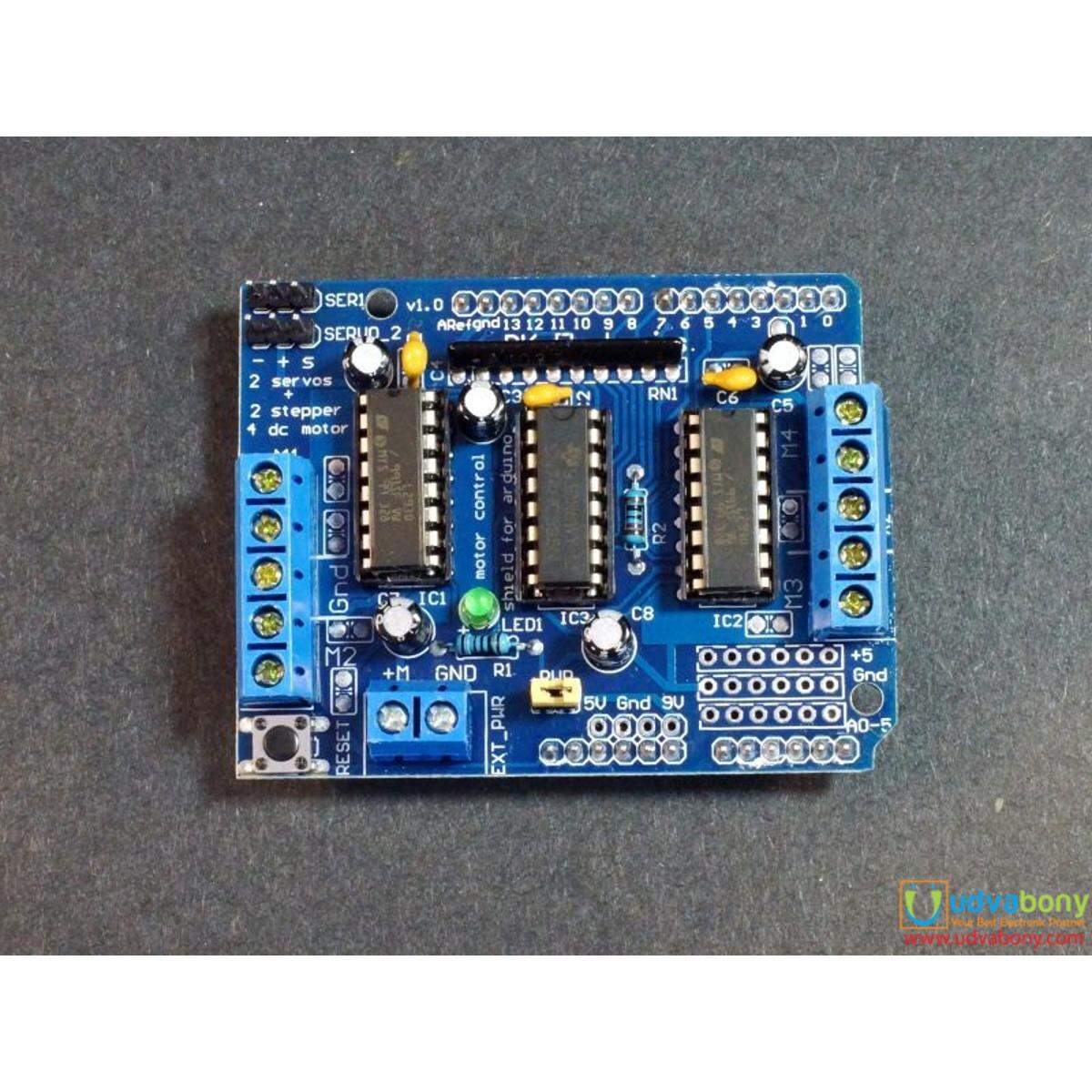

Blue L293D L-293D 293D Stepper Motor Driver Board Control Shield Module Motor Drive Expansion Board 4.5-16V Dc For Arduino Uno Mega Electronics Circuitry & Parts - Power Bank Circuit

Specifications:

• Logic Input voltage: 4.5 V ~ 7 V
• Current Input: 13-26 mA
• Output Current per driver: 600 mA
• Pulsed Current per driver: 1.2 A
• Output Voltage: 4.5V to 36 V
• Size: 69 x 53 mm

Feature:

• 2 interface for 5V Servo connected to the high-resolution dedicated timer – no jitter!
• Can drive 4 DC motors or 2 stepper motors or 2 Servo
• Up to 4 bi-directional DC motors with individual 8-bit speed selection
• Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
• 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC
• Pull down resistors keep motors disabled during power-up reset button
• 2 external terminal power interface, for seperat logic/motor supplies
• Tested compatible for Mega, Diecimila & Duemilanove
• Output Clamp Diodes for Inductive Transient Suppression
• Wide Voltage Supply Range
• Can operate 4 Motors at a time
• Separate Input-Logic Supply
• Thermal Shutdown
• Internal ESD Protection
• Four H-bridges
• Easy Interface
• Small Size

Pin Description:

• VSS: Supply Voltage
• RST: Reset
• GND: Ground
• INPUT 1~4: Input Signal
• OUTPUT 1~4: Output Voltage
• ENABLE 1~2: Enables

Applications & Uses:

• CNC Machines: It can be used in all kinds of CNC machines like 3D printers, CNC Cutters, Laser Engravers, etc.
• Robotics: It can be used is Autonomous Cars, Unmanned Aerial Vehicles, Marine Robotics, etc.
• Control Systems
• DC Motor Drivers
