BOYA M1 Specifications:

• Brand: Boya
• Model Number: Boya BY-M1
• Transducer: Electret Condenser
• Polar pattern: Omnidirectional
• Frequency Range: 65Hz ~ 18 KHz
• Signal/Noise: 74dB SPL
• Sensitivity: -30dB +/- 3dB / 0dB=1V/Pa, 1 kHz
• Output Impedance: 1000 Ohm or less
• Connector: 3.5mm (1/8”) 4-pole gold plug

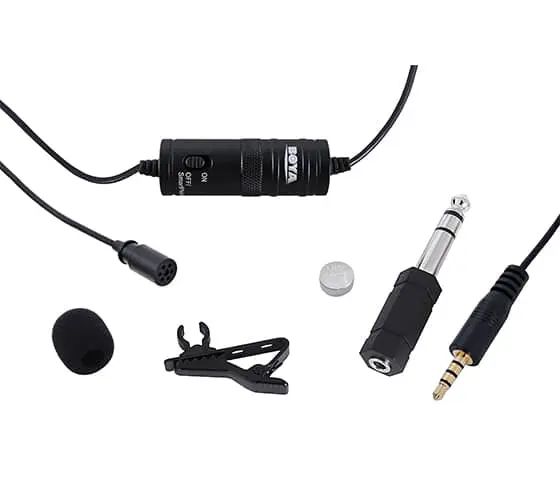

• Accessories Furnished: lapel clip, LR44 battery, foam windscreen, 1/4” adapter
• Battery Type: LR44
• Dimensions: Microphone: 18.00mmH x 8.30mmW x 8.30mmD
• Cable: 6.0m
• Weight:
• Microphone: 2.5g
• Power Module: 18g

• For Smartphone
• Switch off the microphone. Slide the ON/OFF up to OFF/Smartphone
• The power is shut down.
• For DSLR, Camcorders, Audio recorders, PC ect
• Switch on the microphone. Slide the ON/OFF up to ON
