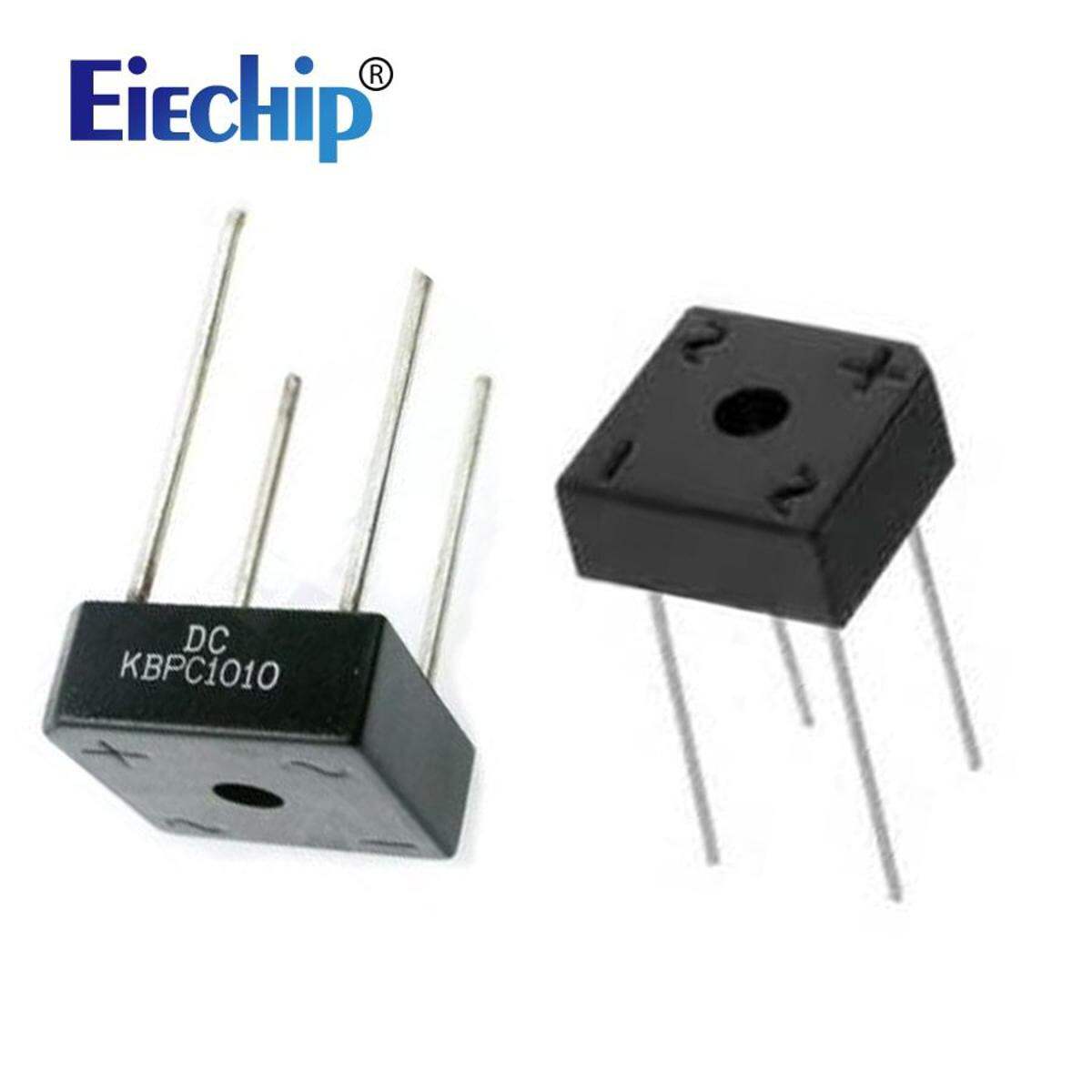

BR1010 1010 Full Wave Bridge Rectifier BR1010 10A 1000V 4Pin Silicon Bridge Rectifier Diode BR10-10 For Electronics Electronics Circuitry & Parts

Name: BR1010 1010 Full Wave Bridge Rectifier BR1010 10A 1000V 4Pin Silicon Bridge Rectifier Diode BR10-10 For Electronics Electronics Circuitry & Parts
Brand: No Brand
SKU: ELPB1015903
Price: 108.00 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: ELPB1015903

Manufacturer: No Brand

Seller: Electronics Parts BD

Tk 108

0 review(s)

Call For Order : 09613-800800

Description: Full Wave Bridge Rectifier BR1010 10A 1000V Silicon Bridge Rectifier Diode BR10-10

BR1010 1010 Full Wave Bridge Rectifier BR1010 10A 1000V 4Pin Silicon Bridge Rectifier Diode BR10-10 For Electronics Electronics Circuitry & Parts

The GBU series of bridge rectifiers are glass passivated with a range up to 10 A forward current and 600 V or 1000 VRRM. The HY Electronic (Cayman) Limited rectifier family can reach -350 A surge overload and the plastic material has a UL Classification. It can be mounted on the PCB in any position and it transforms Alternating current (AC) into direct current (DC).

Specifications:

Bridge Type: Single Phase
Peak Average Forward Current: 10A
Peak Reverse Repetitive Voltage: 1000V
Mounting Type: Through Hole
Package Type: GBU
Pin Count: 4
Configuration: Single
Peak Non-Repetitive Forward Surge Current: 220A
Maximum Operating Temperature: +150 °C
Minimum Operating Temperature: -55 °C
Peak Forward Voltage: 1V
Peak Reverse Current: 500µA
Junction Capacitance: 60pF
Dimensions 22.3 x 3.56 x 18.8mm
