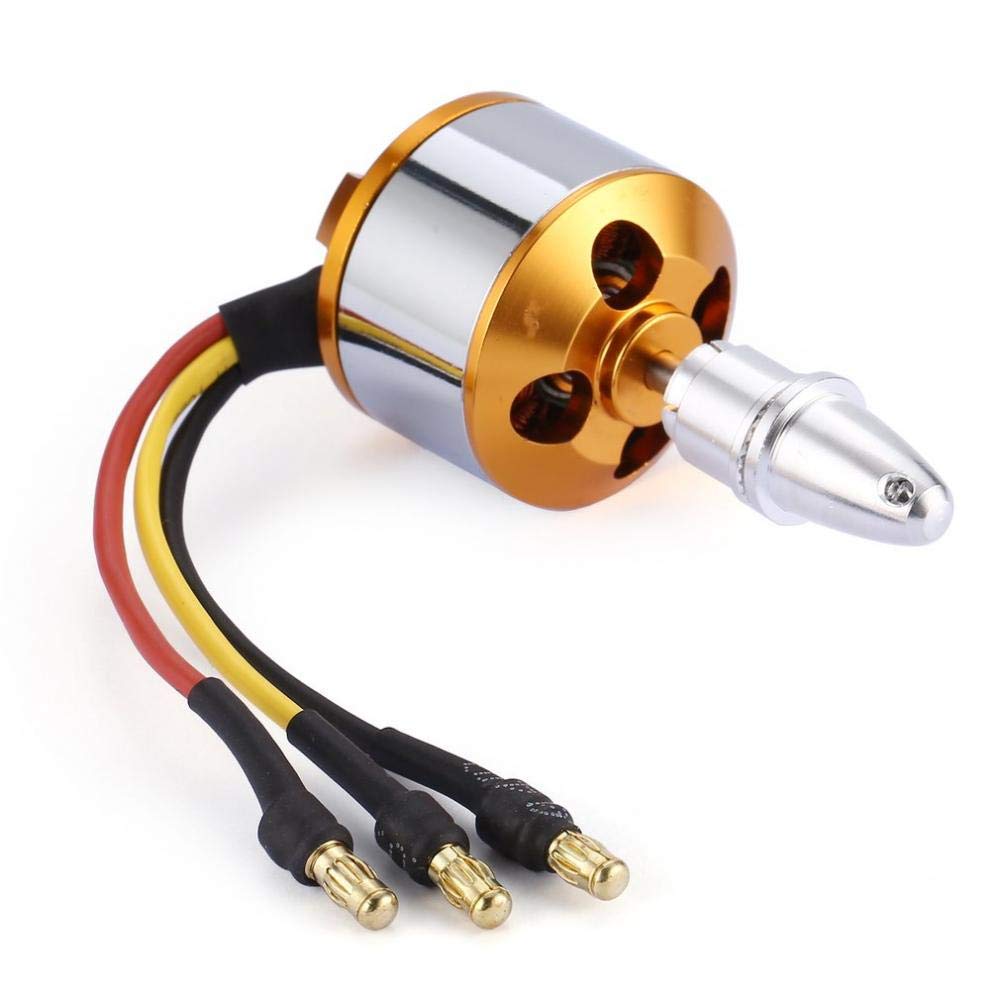

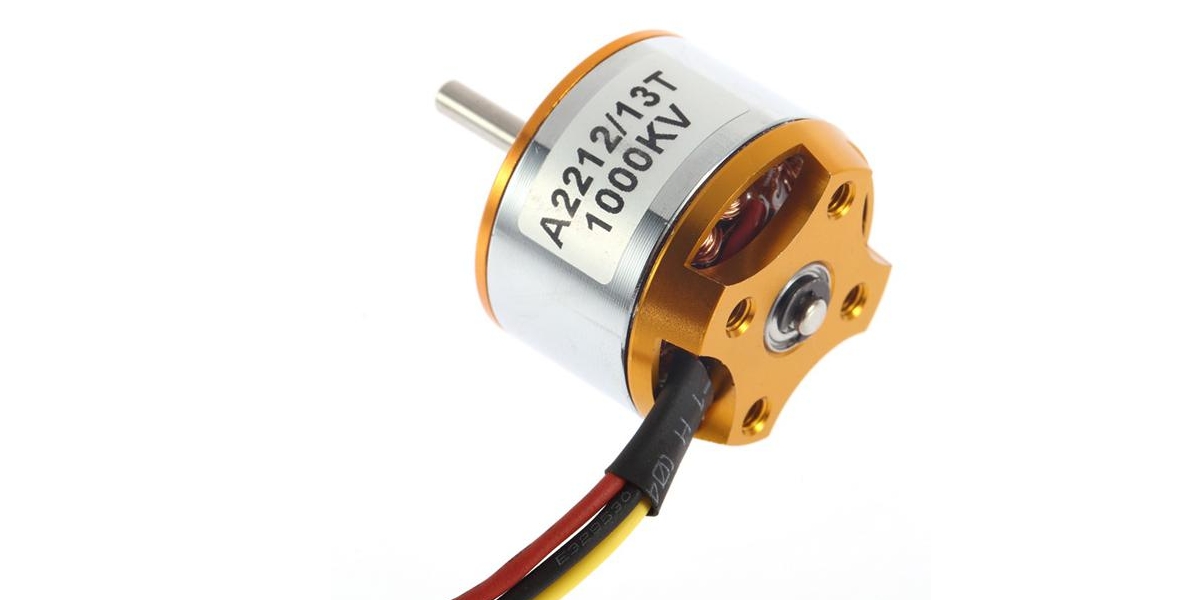

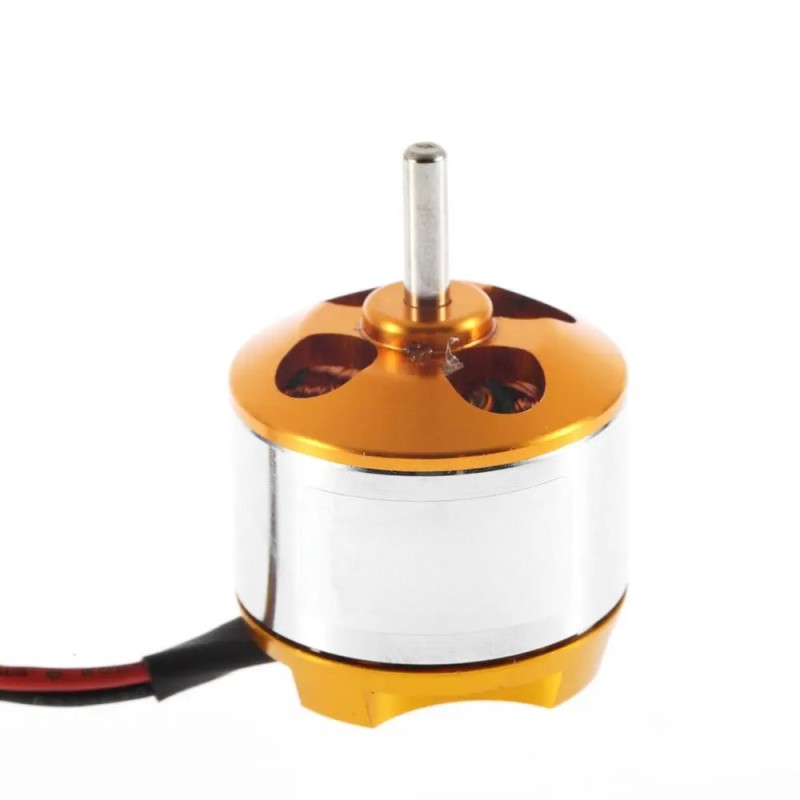

Brushless Motor A2212/13T 1000Kv -for RC Drones & Airplanes(Gold)

The A2212/13T 1000Kv Brushless Motor is a high-performance and reliable motor designed specifically for RC drones, airplanes, and other remote-controlled applications. This motor is known for its efficiency, durability, and smooth operation, making it a popular choice among hobbyists and professionals alike. With its robust construction and advanced features, the A2212/13T 1000Kv Brushless Motor ensures optimal performance and longevity, providing the power and control needed for your RC projects.

Specifications:

• Model: A2212/13T 1000Kv Brushless Motor
• KV Rating: 1000 RPM/V
• No. of Cells: 2-3 Li-Poly or 6-10 NiCd/NiMH
• Max Efficiency: 80%
• Max Efficiency Current: 4-10A (>75%)
• No Load Current: 0.5A @ 10V
• Resistance: 0.090 ohms
• Max Current: 13A for 60 seconds
• Max Watts: 150W
• Weight: 52.7g / 1.86 oz
• Dimensions: 28mm diameter x 28mm bell length
• Shaft Diameter: 3.2mm
• Poles: 14
• Operating Voltage: 7.2V to 12V
• Max Operating Temperature: +80°C
• Features:
  • High torque and efficiency
  • Durable construction with dual ball bearings
  • 3.2mm hardened steel shaft
  • 3.5mm gold spring male connectors pre-attached
  • Includes collet type prop adapter and radial motor mount
  • Mounting holes with 16mm and 19mm spacing on centers, tapped for 3mm (M3) screws
  • Suitable for quadcopters, drones, RC airplanes, and other remote-controlled applications

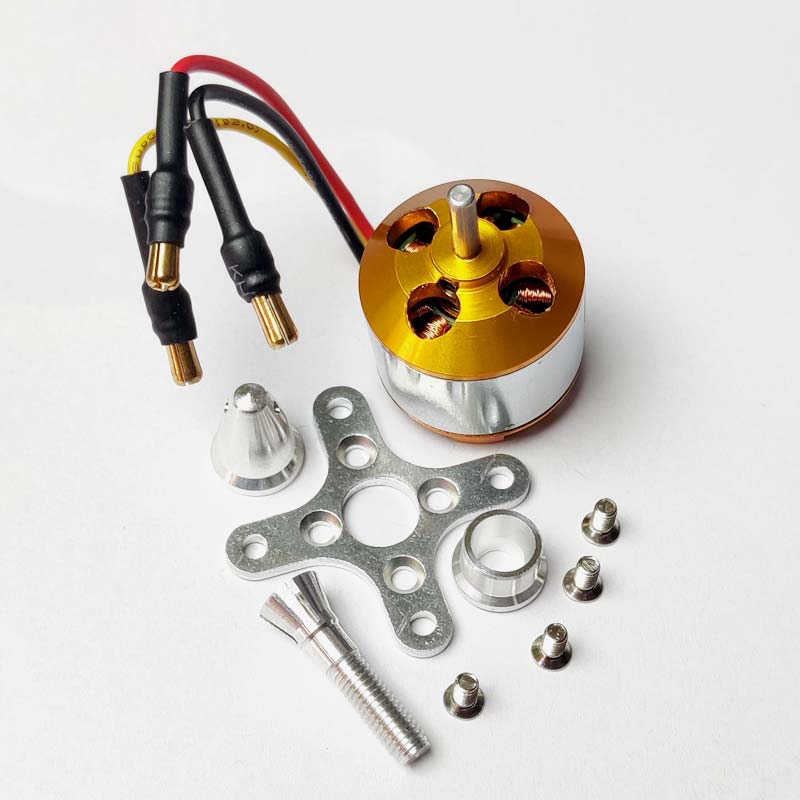

Package Includes:

• 1 x A2212/13T 1000Kv Brushless Motor
• 1 x Collet Type Prop Adapter
• 1 x Radial Motor Mount
• 3 x Female Connectors for Speed Control
