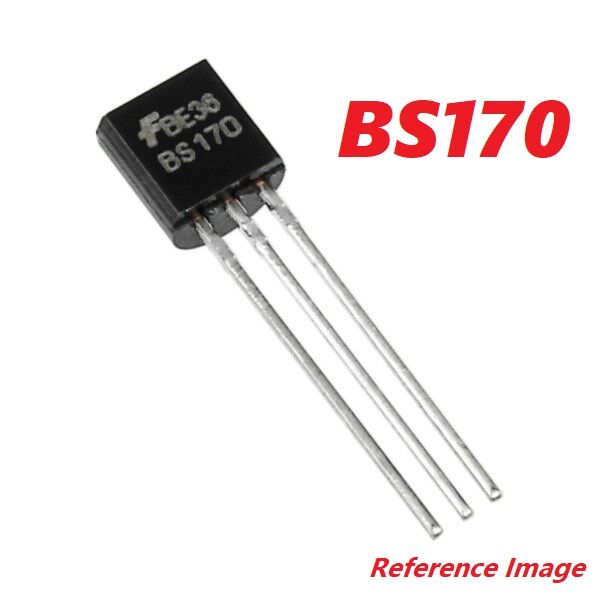

BS170 BS-170 BS 170 60V 0.5A N-Channel Mode Field Effect Transistor TO-92 Package Switching FET Triode Transistor 3 Pin Leads

Description: BS170 N-Channel Switching FET Transistor

BS170 BS-170 BS 170 60V 0.5A N-Channel Enhancement Mode Field Effect Transistor TO-92 Package Switching FET Triode Transistor

BS170 is a well-known N channel MOSFET manufactured in TO-92 package. It can be used for both switching and amplification purposes. When used as switch it can drive load of 500mA. It is able to perform fast switching and capable to switch load in around 7 nanoseconds due to which it can be used in high speed circuits. It can also perform well on low voltage due to which it is an ideal MOSFET to use in portable and battery operated applications.

Technical Specifications:

• Package Type:TO-92
• Transistor Type:N Channel
• Max Voltage Applied From Drain to Source:60V
• Max Gate to Source Voltage Should Be: ±20V
• Max Continues Drain Current is :500mA
• Max Pulsed Drain Current is:500mA
• Max Power Dissipation is:830mW
• Minimum Voltage Required to Conduct:0.8V
• Max Storage & Operating temperature Should Be:-55 to +150 Celsius

Features:

• High-speed switching
• High input impedance
• No minority carrier storage time
• CMOS logic compatible input
• Voltage controlled small signal switch.

Applications:

• Fast Switching
• Switching or driving loads under 500mA
• Audio Amplification & Pre Amplification
• Output of Microcontrollers
• Output of ICs
• Various type of signal amplification

Package Include:

• 1 x BS170 BS 170 60V 0.5A N-Channel Enhancement Mode Field Effect Transistor TO-92 Package Switching FET Triode Transistor
