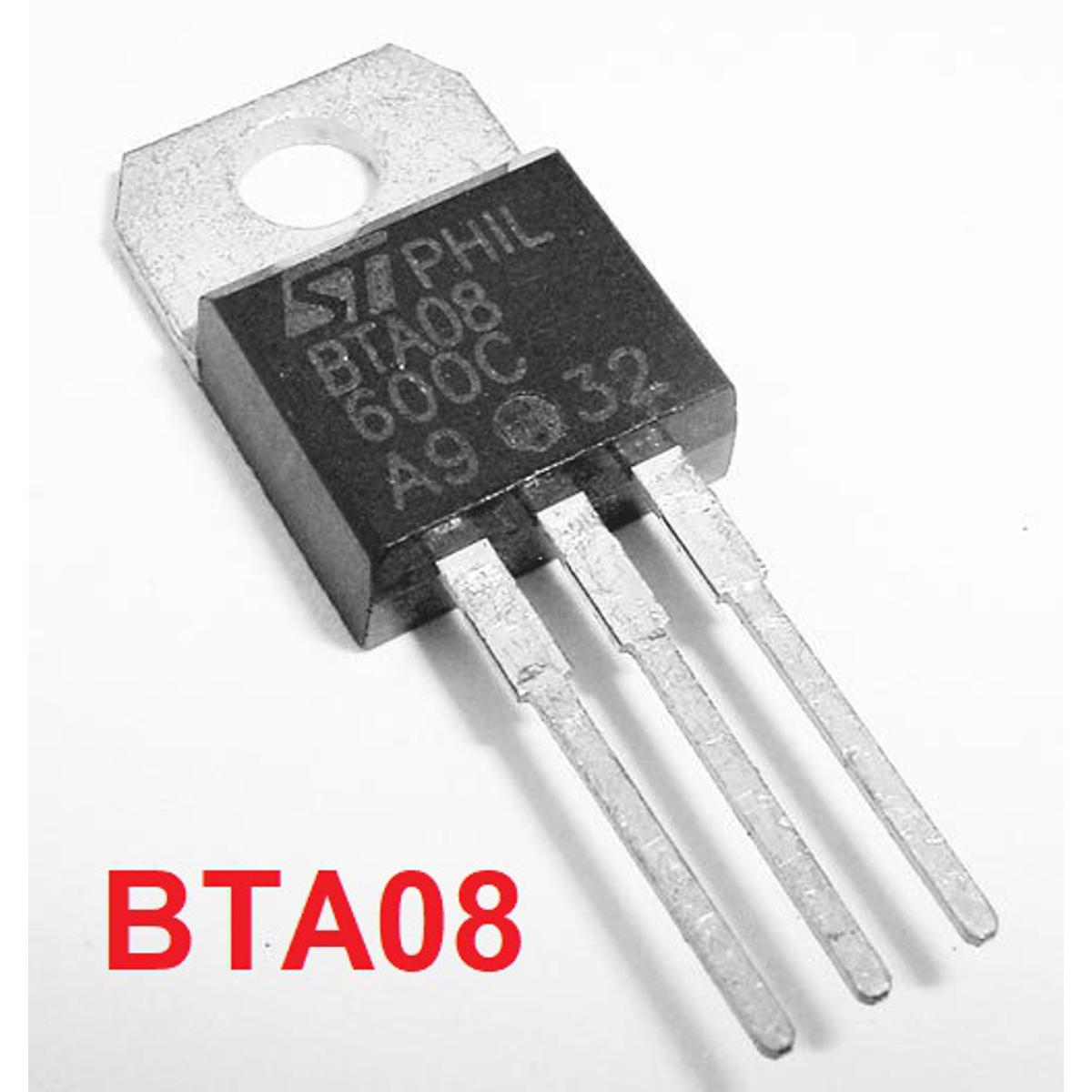

Description: BTA08-600C BTA08600C BTA08 600C BTA08-600 8A 600V TRIAC Microelectronics TO-220 Package

BTA08-600C BTA08600C BTA08 600C BTA08-600 8A 600V TRIAC Microelectronics TO-220 Package

Specifications:

• Rated Average On-State Current: 8A
• Mounting Type: Through Hole
• Package Type: TO-220AB Isolated
• Maximum Gate Trigger Current: 100mA
• Repetitive Peak Reverse Voltage: 600V
• Surge Current Rating: 84A
• Pin Count : 3
• Maximum Gate Trigger Voltage: 1.5V
• Repetitive Peak Forward Blocking Voltage: 600V
• Maximum Holding Current: 50mA
• Dimensions: 10.3 x 4.65 x 8.9mm
• Length: 10.3mm
• Width: 4.65mm
• Height : 8.9mm
• Minimum Operating Temperature: -40 °C
• Peak On-State Voltage : 1.75V
• Repetitive Peak Off-State Current : 0.01mA
• Maximum Operating Temperature : +125 °C

Features:

• Gate Turn-On Voltage (Vgt): 1.3V
• Peak Off-State Voltage(Vdrm): 600V
• On-State Current (It): 8.0A
• Gate Current (Igt): 25mA
• Av. Gate Power Dissipation (Pg): 1W
• Typical Voltage Change over Time (dV/dT): 200V/µs

Applications:

• Static Relays
• Heating Regulation
• Induction Motor Starting Circuits
• Phase Control Operation in Light Dimmers
• Motor Speed Controllers

Package Include:

• 1 x BTA08-600C BTA08600C BTA08 600C BTA08-600 8A 600V TRIAC Microelectronics TO-220 Package

• Rated Average On-State Current: 8A
• Mounting Type: Through Hole
• Package Type: TO-220AB Isolated
• Maximum Gate Trigger Current: 100mA
• Repetitive Peak Reverse Voltage: 600V
• Surge Current Rating: 84A
• Pin Count : 3
• Maximum Gate Trigger Voltage: 1.5V
• Repetitive Peak Forward Blocking Voltage: 600V
• Maximum Holding Current: 50mA
• Dimensions: 10.3 x 4.65 x 8.9mm
• Length: 10.3mm
• Width: 4.65mm
• Height : 8.9mm
• Minimum Operating Temperature: -40 °C
• Peak On-State Voltage : 1.75V
• Repetitive Peak Off-State Current : 0.01mA
• Maximum Operating Temperature : +125 °C
