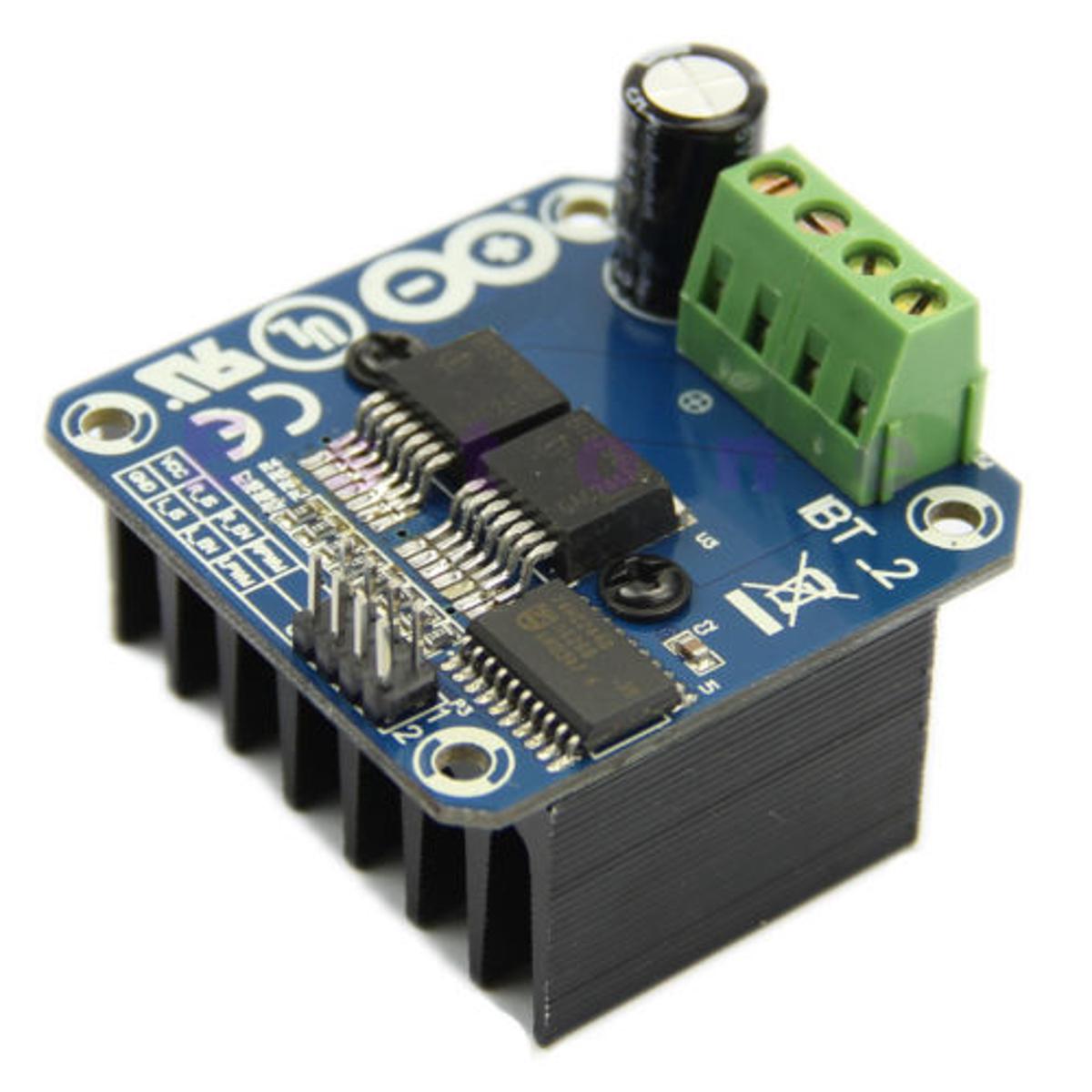

Description: BTS7960 Motor Driver 43A Module

The BTS 7960 is a fully integrated high current half bridge for motor drive applications. It is part of the NovalithICTM family containing one p-channel highside MOSFET and one n-channel lowside MOSFET with an integrated driver IC in one package. Due to the p-channel highside switch the need for a charge pump is eliminated thus minimizing EMI. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation and protection against overtemperature, overvoltage, undervoltage, overcurrent and short circuit

1. double BTS7960 high current (43A) H-bridge drivers;2. and MCU 5V isolated, effectively protect the microcontroller;3. the motor can bereversed, two PWM inputs, highest 25kHZ frequency;4. the two streams passing overheating error signal output;5. isolated chip 5V power (can be shared with the microcontroller 5V);6. the supply voltage 5.5V to 27V;

Applications:

• Current diagnostic
• Slope adjustment
• Dead Time generation
• Overtemperature, overvoltage, undervoltage, overcurrent protection
• Short circuit protection

Specifications:

• Operating Voltage 5.5 to 27V (B+)
• Path resistance of typ. 16 mOhm at 25°C
• Low quiescent current of typ. 7 uA at 25°C
• PWM capability of up to 25 kHz combined with active freewheeling
• Switched mode current limitation for reduced power dissipation in overcurrent
• Current limitation level of 43 A typ.
• Status flag diagnosis with current sense capability
• Overtemperature shut down with latch behaviour
• Overvoltage lock out
• Undervoltage shut down
• Driver circuit with logic level inputs
• Adjustable slew rates for optimized EMI
• 74AHC244 Schmitt-trigger Octal buffer/line driver for ESD protection (Inputs accepts voltages higher than VCC)

Documents:

• IBT-2 Schematic

Package Include:

• 1 x BTS7960 Motor Driver 43A Module

• 1. double BTS7960 high current (43A) H-bridge drivers;
• 2. and MCU 5V isolated, effectively protect the microcontroller;
• 3. the motor can bereversed, two PWM inputs, highest 25kHZ frequency;
• 4. the two streams passing overheating error signal output;
• 5. isolated chip 5V power (can be shared with the microcontroller 5V);
• 6. the supply voltage 5.5V to 27V;
