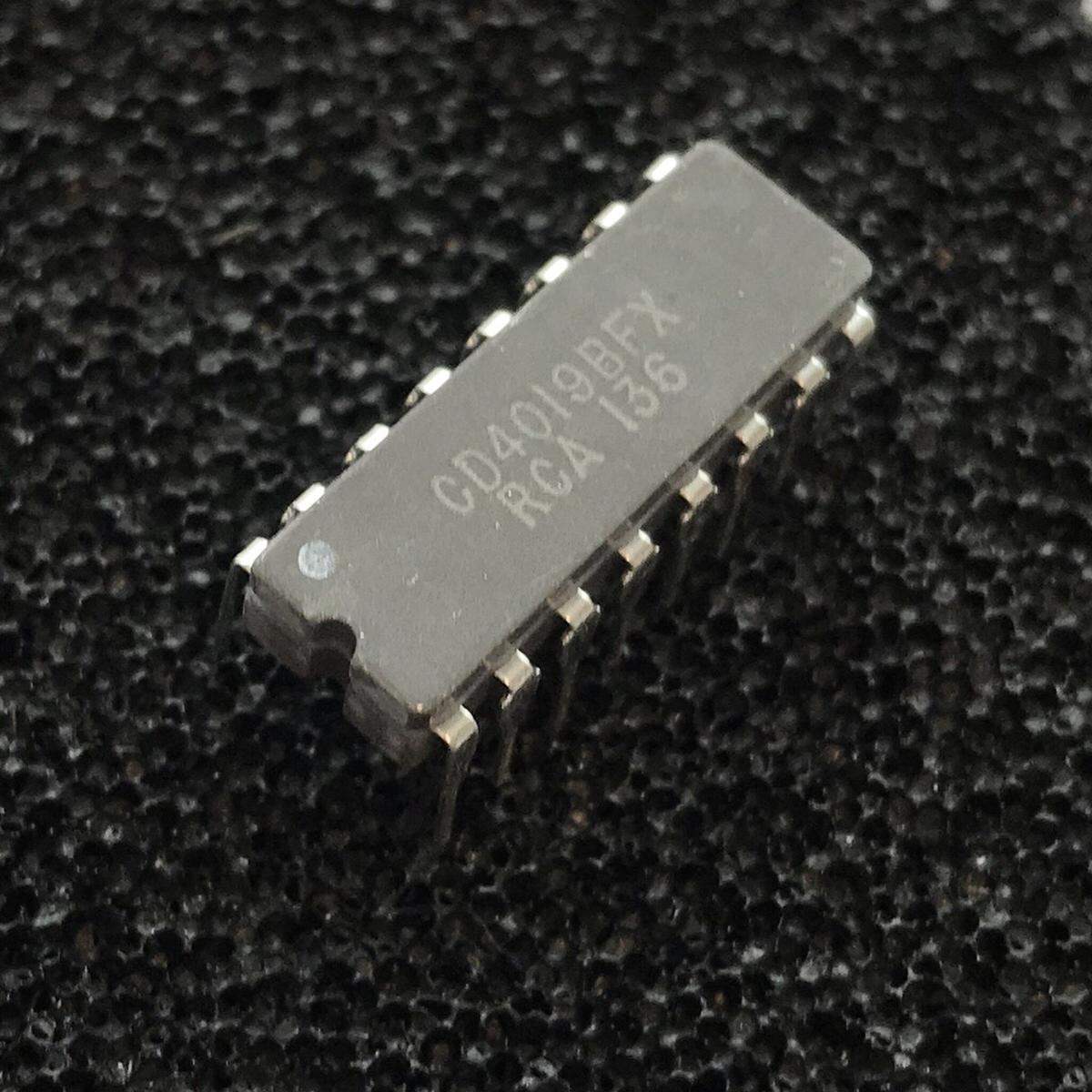

CD4019 AND-OR Select Gate-2Pcs

Description: CD4019 AND-OR Select Gate

The CD4019B is a complementary MOS quad AND-OR select gate. Low power and high noise margin over a wide voltage range is possible through implementation of N- and P-channel enhancement mode transistors. These complementary MOS (CMOS) transistors provide thebuilding blocks for the 4 ``AND-OR select'' gate configurations, each consisting of two 2-input AND gates driving a single 2-input OR gate. Selection is accomplished by control bits KA and KB. All inputs are protected against static discharge damage.

Specification:

Supply Voltage Range:-0.5V to +20VInput Voltage Range,All Inputs:-0.5V to VDD+0.5VDC Input Current,Any One Input:±10mAPower Dissipation Per package:500mW(For TA=-55°C to +100°C)

Package Include:

1 x 4019 AND-OR Select Gate-2Pcs
