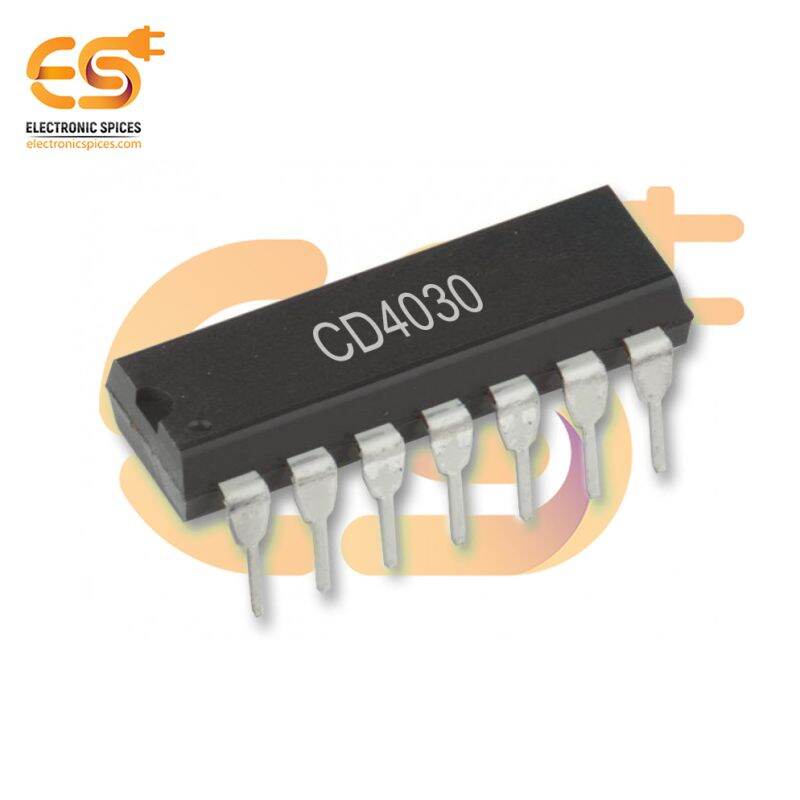

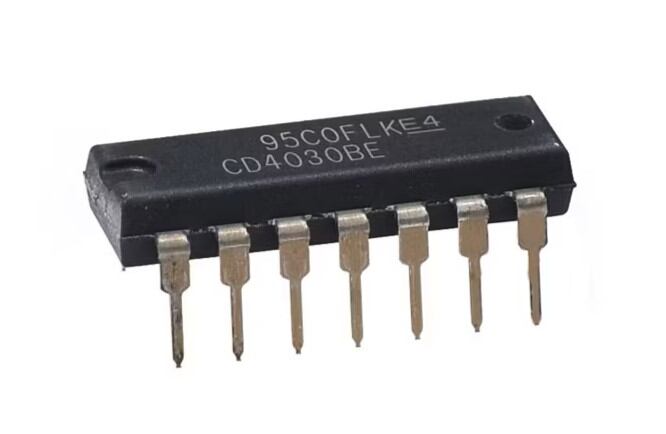

Description : CD4030BE DIP-14 Quad XOR Gate IC Logic Gate IC2 Input XOR Quad Package Breadboard Friendly CMOS IC for DIY & Electronics Projects

The CD4030BE is a high-performance Quad 2-Input Exclusive-OR (XOR) Gate IC housed in a standard DIP-14 package, making it perfect for breadboard and through-hole applications. Based on CMOS technology, it offers low power consumption and wide operating voltage (3V to 15V), making it ideal for both hobbyist and industrial digital logic projects. This IC integrates four independent XOR gates with standard push-pull outputs, suitable for arithmetic logic, signal processing, and timing applications. Whether you’re designing circuits for Arduino or prototyping with TTL/CMOS logic, CD4030BE delivers reliable performance with high noise immunity and fast switching. Fully RoHS compliant and lead-free, it’s a go-to choice for students, engineers, and DIY electronics enthusiasts.

Specifications

• IC Type: Quad 2-Input Exclusive-OR (XOR) Gate
• Part Number: CD4030BE
• Package: DIP-14 (Dual Inline Package)
• Logic Family: CMOS
• Operating Voltage: 3V to 15V
• Input Type: Standard CMOS
• Output Type: Push-Pull
• Propagation Delay: ~60ns @ 10V
• Operating Temperature: -55°C to +125°C
• Pin Count: 14
• RoHS Compliant: Yes
• Breadboard Compatible: Ye
• Mounting Type: Through Hole

Key Features

• Quad 2-input XOR gates in one IC
• Wide supply voltage range (3V to 15V)
• Compatible with TTL and CMOS logic
• Low power consumption CMOS technology
• DIP-14 through-hole package for easy prototyping
• Fast switching speed
• Ideal for arithmetic and logic applications
• High noise immunity
• Directly plug into breadboards
• RoHS compliant and lead-free

CD4030BE, XOR Gate IC, CD4030BE, Logic Gate IC, DIP-14 IC, Quad XOR IC, Breadboard Friendly IC, CMOS Logic IC, 2 Input XOR Gate, DIY Electronics IC, TTL CMOS Compatible IC

#CD4030BE #XORGate #LogicIC #DIP14 #CMOSIC #ElectronicsParts #ArduinoProjects #BreadboardFriendly #DigitalLogic #QuadGateIC

Package Included :

1 X CD4030BE Quad XOR Logic Gate IC DIP-14 CMOS IC for Electronics & Robotics DIY Friendly
