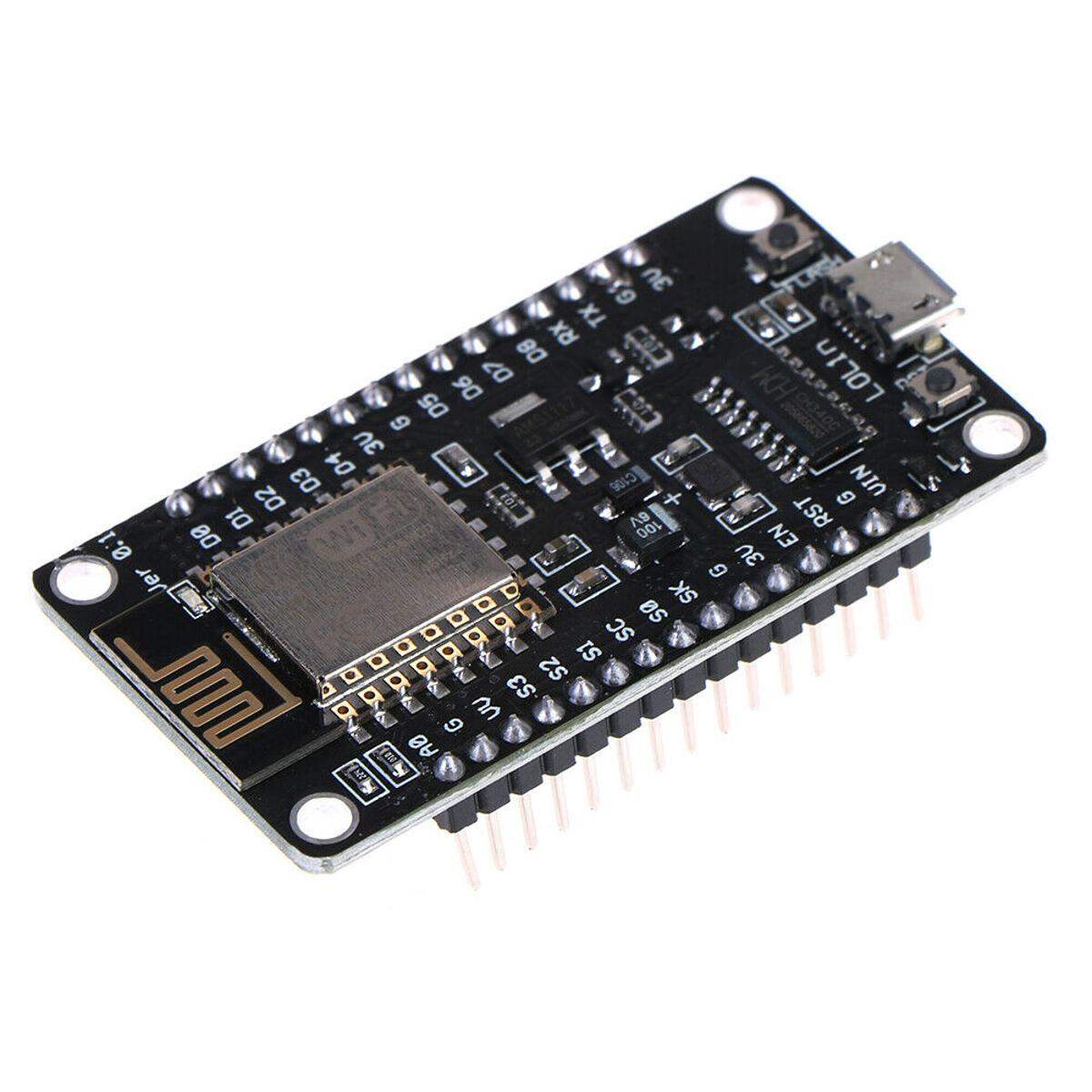

Description: NodeMcu Esp8266 V3 CH340 Lua WIFI Internet Of Things Development Lolin Board

ESP8266MOD or ESP-12E or ESP-12F is New Lolin NodeMcu Lua V3 Wireless Module Wifi Internet of Things (IoT) Development Board Based On ESP8266 Micro USB To TTL

This is the famous NodeMCU which is based on ESP8266 WiFi SoC. This is version 3 and it is based on ESP-12E or ESP-12F or ESP8266MOD

Specifications & Features:

• Wireless 802.11 b / g / n standard
• Support STA / AP / STA + AP three operating modes
• Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 MAX)
• D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
• AD0: 1 channel ADC
• Power input: 4.5V ~ 9V (10VMAX), USB-powered
• Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
• Transfer rate: 110-460800bps
• Support UART / GPIO data communication interface
• Remote firmware upgrade (OTA)
• Support Smart Link Smart Networking
• Working temperature: -40 ℃ ~ + 125 ℃
• Drive Type: Dual high-power H-bridge driver

Package Include:

• 1 x NodeMcu Esp8266 V3 CH340 Lua WIFI Internet Of Things Development Lolin Board
