D1 Development Board D1 Mini ESP8266 Micro USB 3.3V Based On ESP-8266EX 11 Digital Pin Internet of Things Lua Bluetooth D1 Mini Module Board Electrical Circuitry & Parts

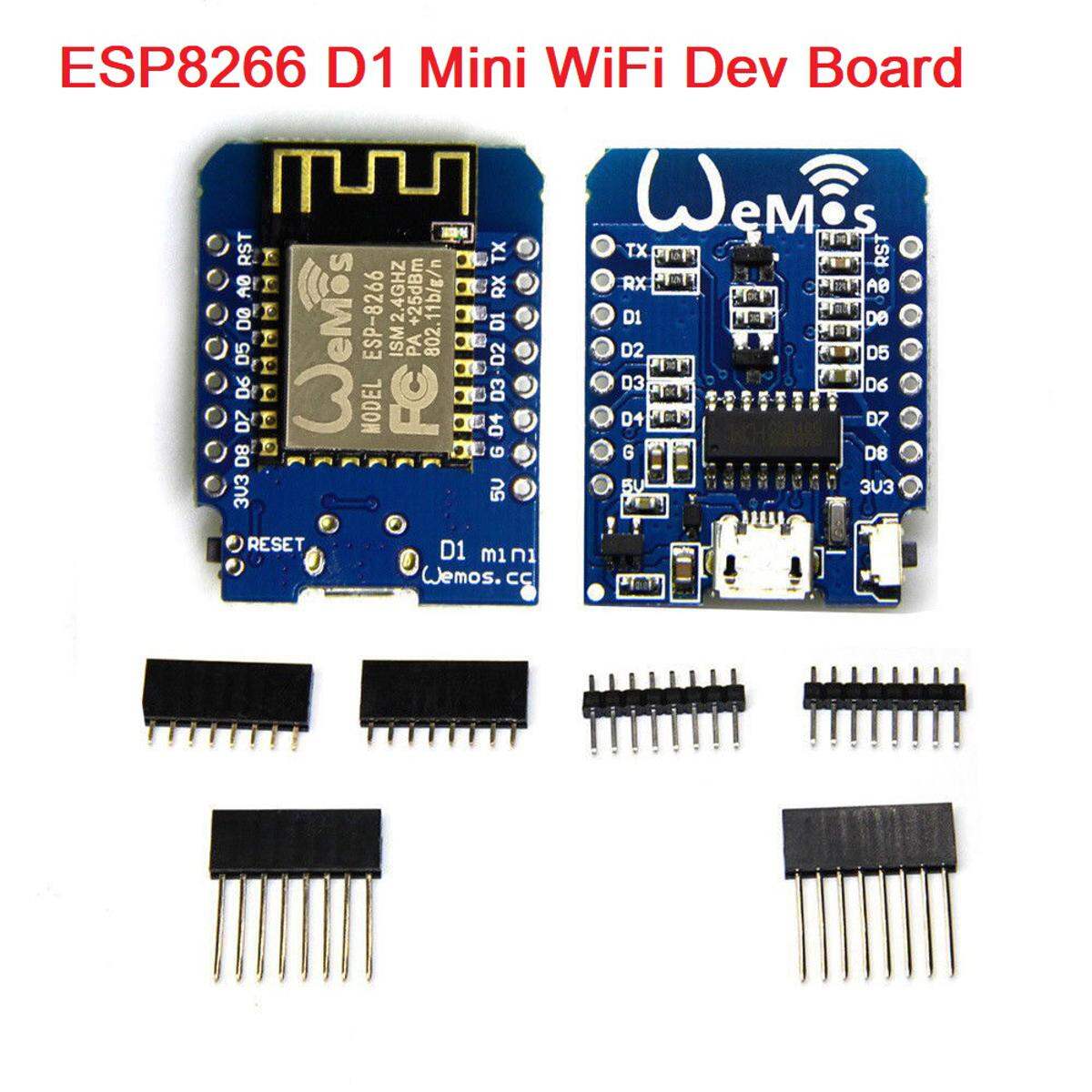

Description: ESP8266 D1 Mini WiFi Dev Board

The D1 Mini is a breadboard-compatible WiFi development board based on the ESP8266. This board is compatible with theand with. All of the I/O pins have interrupt, PWM, I2C, and one-wire capability, except for pin D0. The board comes with three different sets of header pins: long-pin female headers, standard-pin female headers, and male pin headers. You can solder the set you choose to your board. The long-pin female headers are our favorite since they allow you to plug the board into a breadboard while also having female headers available on top of the board.

The board includes an on-board USB Micro connector and USB to serial (UART) converter, making it easy to power and program the board by simply connecting it to your computer with a USB Micro cable. We offer a board similar to this called thethat is shaped like the common Arduino UNO footprint.

Specifications:

• Microcontroller: ESP-8266EX
• Operating Voltage: 3.3V
• Digital I/O Pins: 11 (all I/O pins have interrupt/pwm/I2C/one-wire capability, except for D0)
• Analog Input Pins: 1 (3.2V max input)
• Flash Memory: 4MB
• On-Board Switching Power Supply
• Output: 5V
• Board Dimensions: 34.2mm x 25.6mm / Long x Wide
• Weight: 10g
