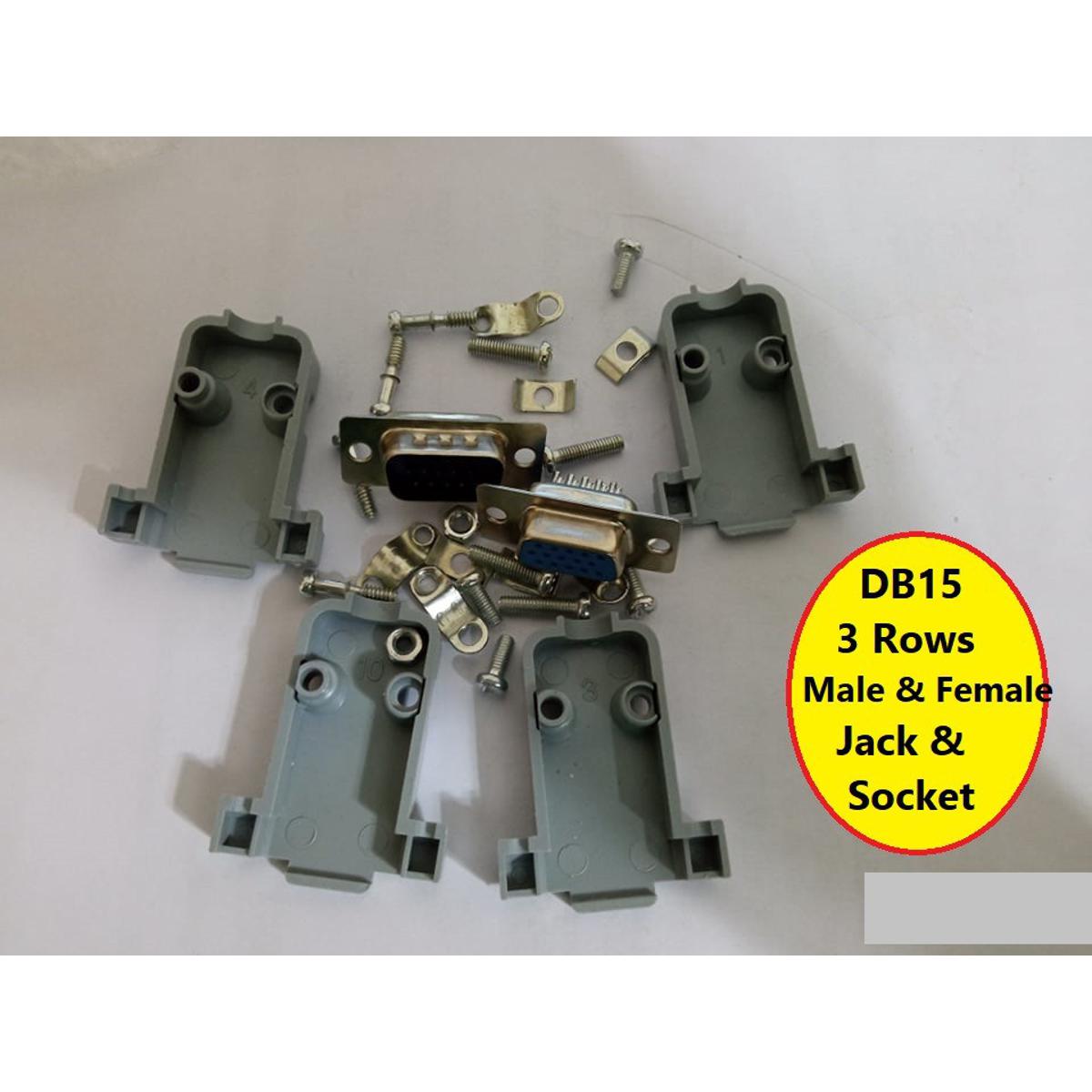

Description: DB15 DB-15 3 Rows 15 Pin Male & Female VGA Jack & Socket Plug Connector With Plastic Back Shell Housing For LCD Monitor

DB15 DB-15 3 Rows 15 Pin Male & Female VGA Jack & Socket Plug Connector Plug Breakout Terminals Screw Type DIY Connector With Plastic Back Shell Housing For LCD Monitor.

Specification:

• Model Number: DB15 VGA Connector
• Type: DB15 VGA 3 Rows Female & Male Connector Terminals Plug Screw Type
• Terminals Pitch:3.81mm, The screw hole diameter is 2mm, need to use the 2mm width screwdriver for disassembling.
• Wire Gauge:19AWG (21 — 24 AWG will be better, for reference only)
• 15 Pin Female D-Sub Connector With Plastic Back Shell Housing and Hardware
• For Cable Mount Applications, Audio Transmission,Solder Termination.
• High density design maximizes board space
• Operating Temperature: -55°C~ + 105°C
• Contact resistance: 10 mOhm
• Current rating signal: 3A
• Working voltage: 60V
• Dielectric with standing voltage signal: 1000 V
• Insulation resistance: 5000mΩ min
• Net Weight:60gm

Package Include:

• 1 x DB15 DB-15 3 Rows 15 Pin Male & Female VGA Jack & Socket Plug Connector With Plastic Back Shell Housing For LCD Monitor

• Model Number: DB15 VGA Connector
• Type: DB15 VGA 3 Rows Female & Male Connector Terminals Plug Screw Type
• Terminals Pitch:3.81mm, The screw hole diameter is 2mm, need to use the 2mm width screwdriver for disassembling.
• Wire Gauge:19AWG (21 — 24 AWG will be better, for reference only)
• 15 Pin Female D-Sub Connector With Plastic Back Shell Housing and Hardware
• For Cable Mount Applications, Audio Transmission, Solder Termination.
• High density design maximizes board space
• Operating Temperature:  -55°C~ + 105°C
• Contact resistance: 10 mOhm
• Current rating signal: 3A
• Working voltage: 60V
• Dielectric with standing voltage signal: 1000 V
• Insulation resistance: 5000mΩ min
• Net Weight:60gm
