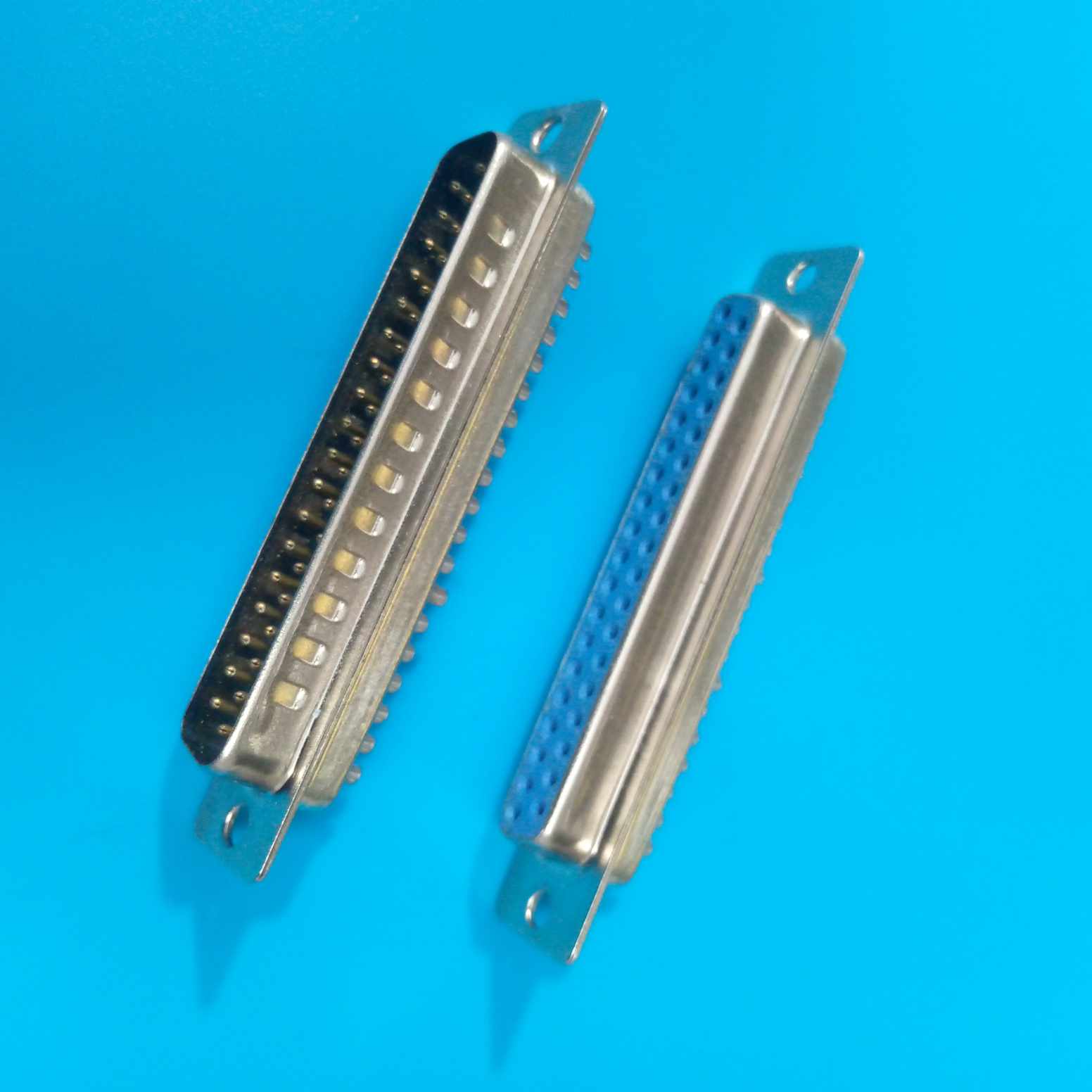

Description: DB37 MALE & FEMALE 2 Rows 37 Pin VGA Plug Connector With Plastic Shell

1Pair- DB37 DB-37 2 Rows 37 Pin MALE & FEMALE VGA Jack & Socket Plug Connector Plug Breakout Terminals Screw Type DIY Cables Connector With Plastic Back Shell Housing

Specifications:

• Model Number: DB37 VGA Connector
• Type: DB37 VGA 2 Rows Female & Male Connector Terminals Plug Screw Type
• Terminals Pitch:3.81mm, The screw hole diameter is 2mm, need to use the 2mm width screwdriver for disassembling.
• Wire Gauge:19AWG (21 — 24 AWG will be better, for reference only)

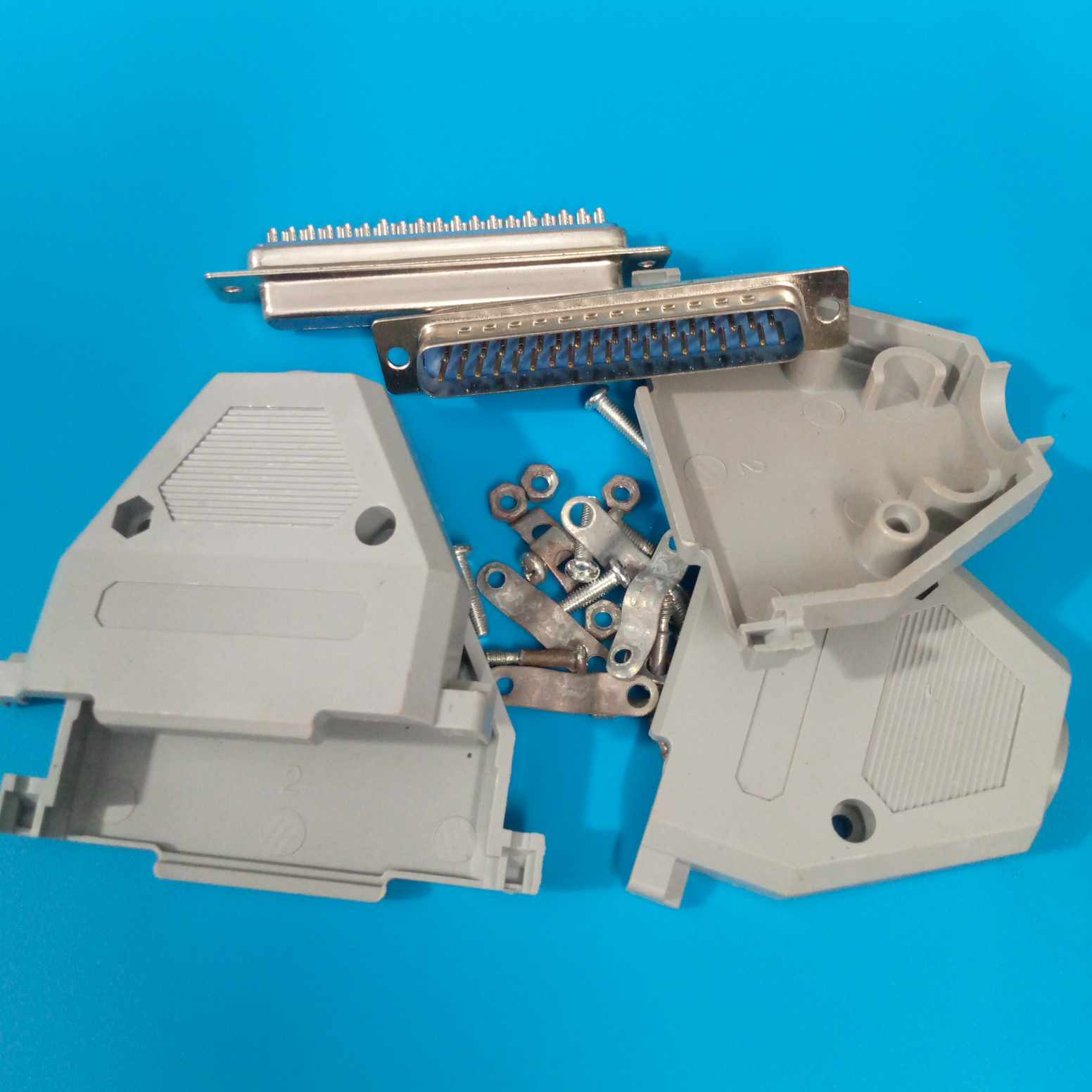

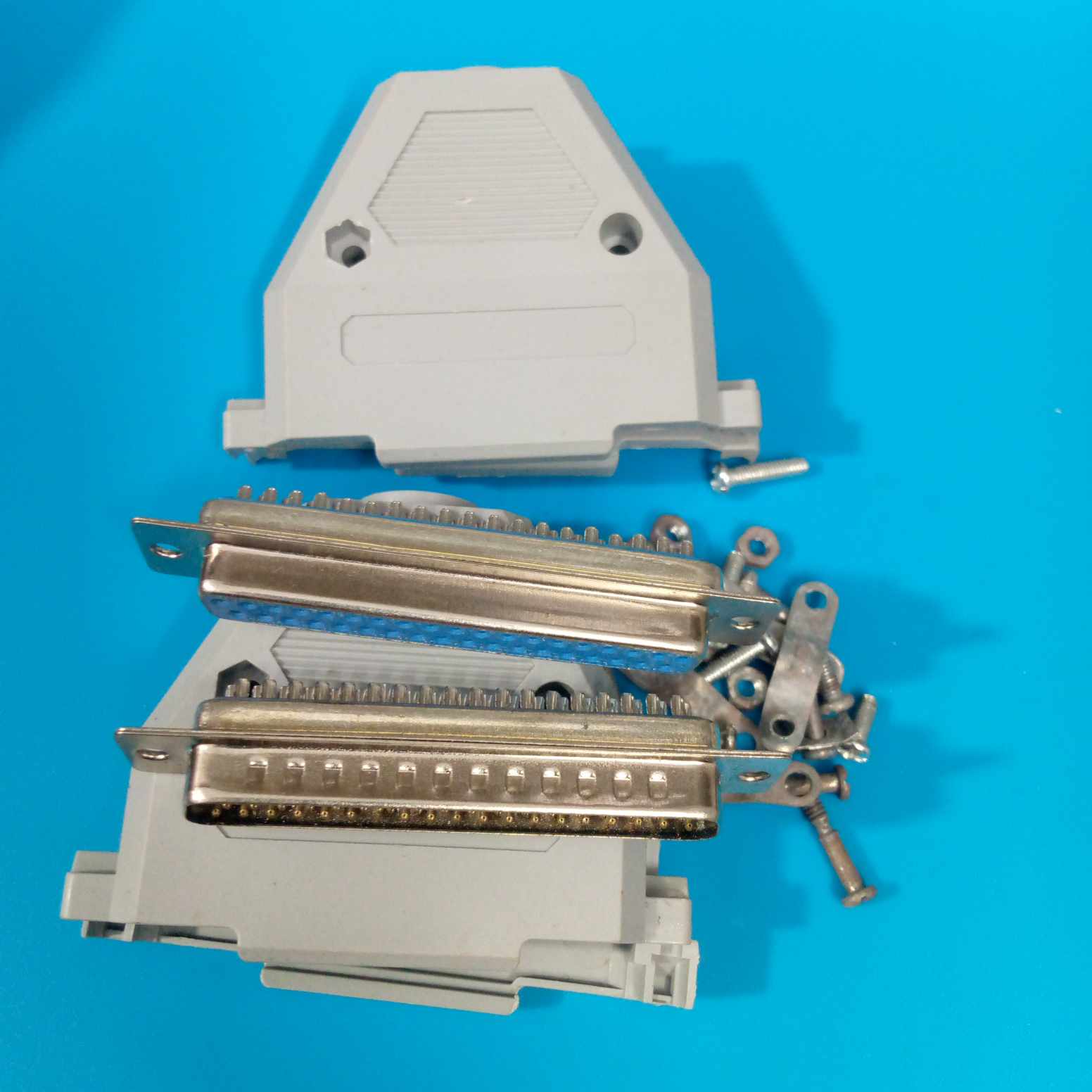

• 37 Pin Female D-Sub Connector With Plastic Back Shell Housing and Hardware
• For Cable Mount Applications, Audio Transmission, Solder Termination.
• High density design maximizes board space
• Operating Temperature: -55°C~ + 105°C
• Contact resistance: 10 mOhm
• Current rating signal: 3 A
• Working voltage: 60 V
• Dielectric with standing voltage signal: 1000 V
• Insulation resistance: 5000mΩ min
• Net Weight:30gm
