Picture of DC 12V XH-W3001 W3001 10A 12V 120W Digital Temperature Controller Display Thermostat Control Sensors Switches & Waterproof 10K NTC Probe
Picture of DC 12V XH-W3001 W3001 10A 12V 120W Digital Temperature Controller Display Thermostat Control Sensors Switches & Waterproof 10K NTC Probe

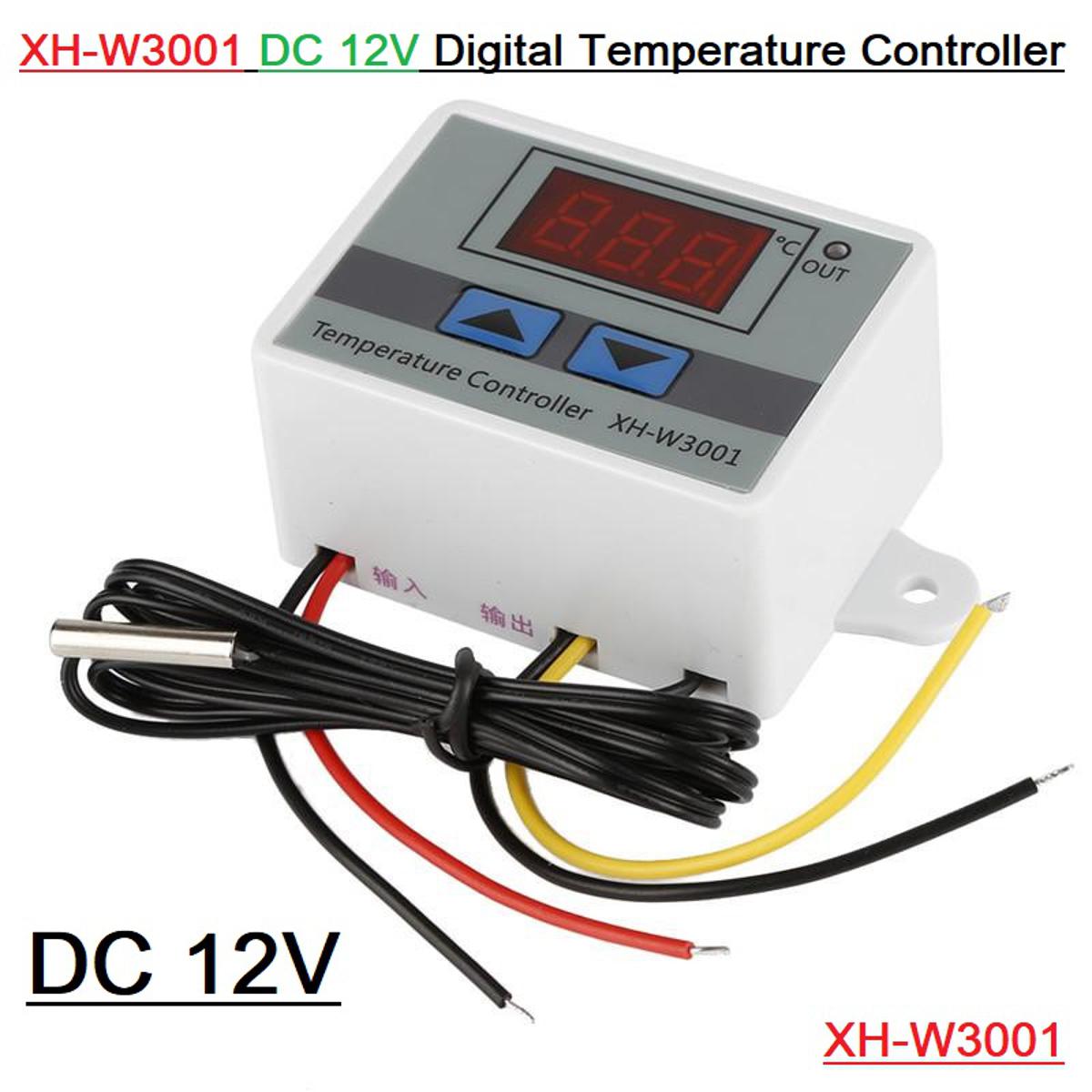

DC 12V XH-W3001 W3001 10A 12V 120W Digital Temperature Controller Display Thermostat Control Sensors Switches & Waterproof 10K NTC Probe

Category: Building Materials
SKU: UDBD04479
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 276
Tk 325
Tk 325
15% OFF
0 review(s)
  • A practical thermostat with a simple wall mounting, panel or DIN rail.
  • Quality design, LED display and thermometer with waterproof case.
  • Model: XH-W3001
  • The measurement of the current temperature
  • Adjustable minimum and maximum
  • Easily adjustable
  • Easy to assemble

Call For Order : 09613-800800

Descriptions: XH-W3001 DC12V 120W Digital Temperature Controller Microcomputer Thermostat Switch

This delicate digital display temperature controller can set start and stop temperature. The display and control temperature can be set to 0.1℃ with wide temperature control range from -50℃ to 110℃. It is convenient to install and wiring is simple. Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields.

  • ABS flame retardant housing is avirulent and environmental protective.
  • Wide temperature control range from -50℃ to 110℃.
  • High temperature control precision of 0.1℃.Probe used stainless steel material, waterproof and does not rust easily.
  • LED display shows the results clearly.Can be installed directly or embedded in industrial control equipment panel, convenient and quick.
  • 1m waterproof probe is equiped for convenient usage.Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields.
  • Warranty not applicable for this product

Specifications

  • A practical thermostat with a simple wall mounting, panel or DIN rail.
  • Quality design, LED display and thermometer with waterproof case.
  • Model: XH-W3001
  • The measurement of the current temperature
  • Adjustable minimum and maximum
  • Easily adjustable
  • Easy to assemble

Features

MaterialPlastic

Color

As the pictures shown

ModelAA332 (with XH-W3001)
Temperature range-50 ~ 110C
Temperature accuracy± 0.1C
Measuring accuracy± 0.2C
Input measurementNTC 10 K L = 1 M waterproof probe
Power input12V ( 24V / 220V for option)
Output Power120W (240W / 1500W for other 2 models)
Output TypeDirect Output
Output capacityup to 10A
Installation height73mm (4mm opening)
Size61 * 45 * 31mm (2.4*1.77*1.22 “)

Use guidance:

Set the start/stop temperature: Press the up/down button once to display the start temperature. Press and hold the up button for about 3 seconds, the start temperature number will flash, and the desired temperature value can be set by the up and down keys.

How to use:
  • Press “UP” button show the starting temperature;
  • Long press “UP” button until the temperature display flashes, press the “UP” or “Down” button to set the start temperature value;
  • Press “Down” button show the stop temperature;
  • Long press “Down” button until the temperature display flashes, press the “UP” or “Down” button to set the stop temperature value.
Documents:
  • 1496403726.pdf(362.5 kB)
  • http://navody.arduino-shop.cz/technikuv-blog/porovnani-termostatu.html
Package includes:
  • 1Pc x Xh-W3001 DC 12V Digital Temperature Controller Microcomputer Thermostat Switch





  • A practical thermostat with a simple wall mounting, panel or DIN rail.
  • Quality design, LED display and thermometer with waterproof case.
  • Model: XH-W3001
  • The measurement of the current temperature
  • Adjustable minimum and maximum
  • Easily adjustable
  • Easy to assemble
