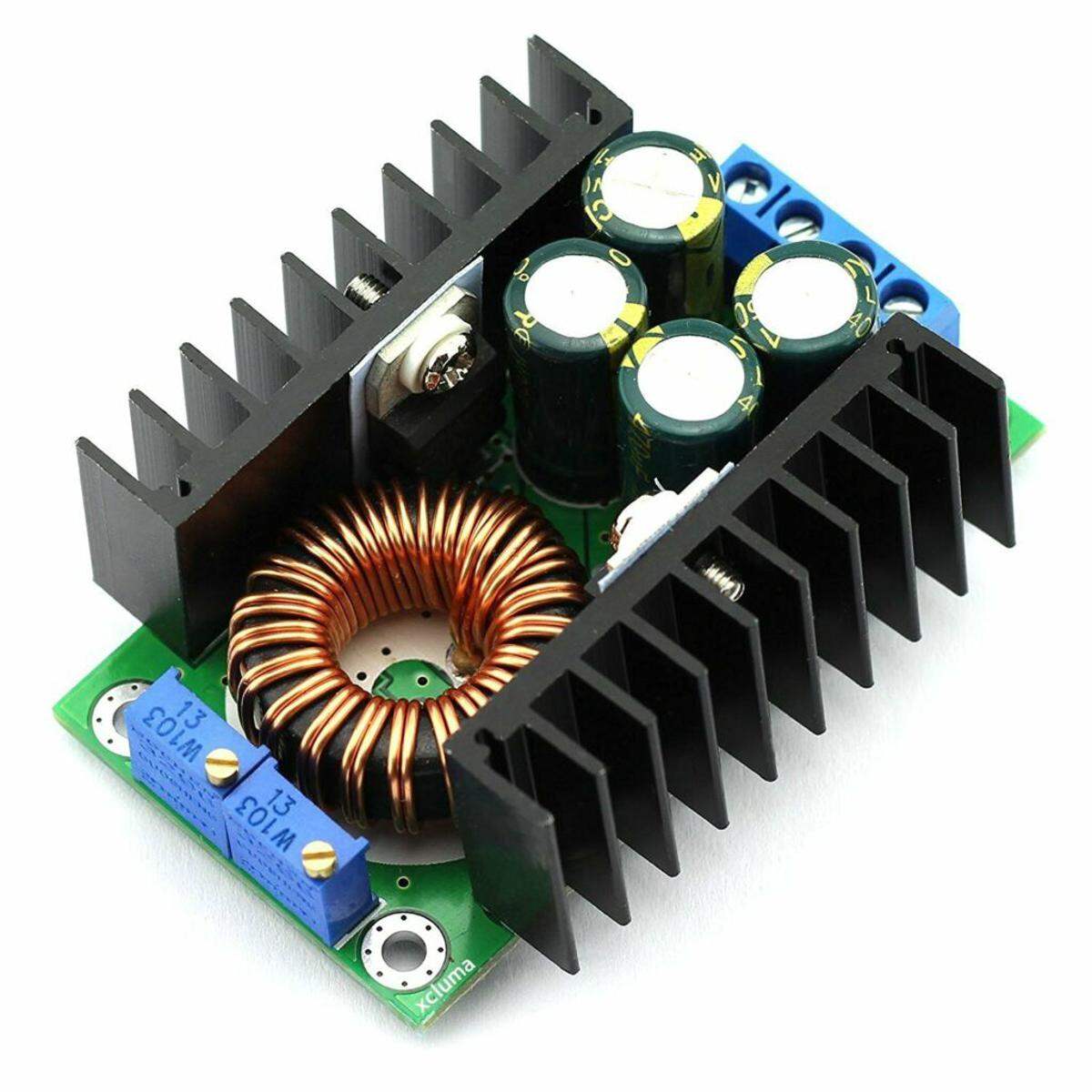

DC Car Power Supply Voltage Regulator Buck Converter 10A/100W 12A Max DC 5-40V to 1.2-36V Step Down Volt Convert Module Adapters

Description: DC Car Power Supply Voltage Regulator Buck Converter 10A/100W 12A Max DC 5-40V to 1.2-36V Step Down Volt Convert Module

• Two large aluminum heat sinks ensures a better heat dissipation and more stable performance.
• Five 330uf/50V high frequency low resistance capacitors in parallel special for switch-mode power supply lower output ripple.
• 23mm large magnet and 1.0 copper wire provides high efficiency work.
• It has the TVs Diode to prevent Voltage Surge from breaking the chip D, hence allowing safer module operation.
• Widely used for storage battery, power transformers, DIY adjustable regulated power supply, industrial equipment, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, etc.

Specification:

• Material: P.C.B Borad
• Size: Approx. 60x51x22mm / 2.36×2.01×0.87inch
• Type: Non-isolated step-down module (BUCK)
• Input Voltage: 5V to 40V
• Output Voltage: 1.2V to 36V (continuously adjustable, default 5V)
• Output Current: 0A to 12A
• Power: 100W
• Operating Temperature: -40℃ to +85℃
• Frequency: 180KHz
• Max. Conversion Efficiency: 95% (Efficiency is related to input/output voltage, current and voltage difference)
• Short Circuit Protection: Yes (14A current limit, please try not to short circuit)
• Over Temperature Protection: Yes (automatically shut off output)
• Reverse Input Protection: No
• Wiring Method: Terminals

Package Include:

• 1 x DC Car Power Supply Voltage Regulator Buck Converter 10A/100W 12A Max DC 5-40V to 1.2-36V Step Down Volt Convert Module
