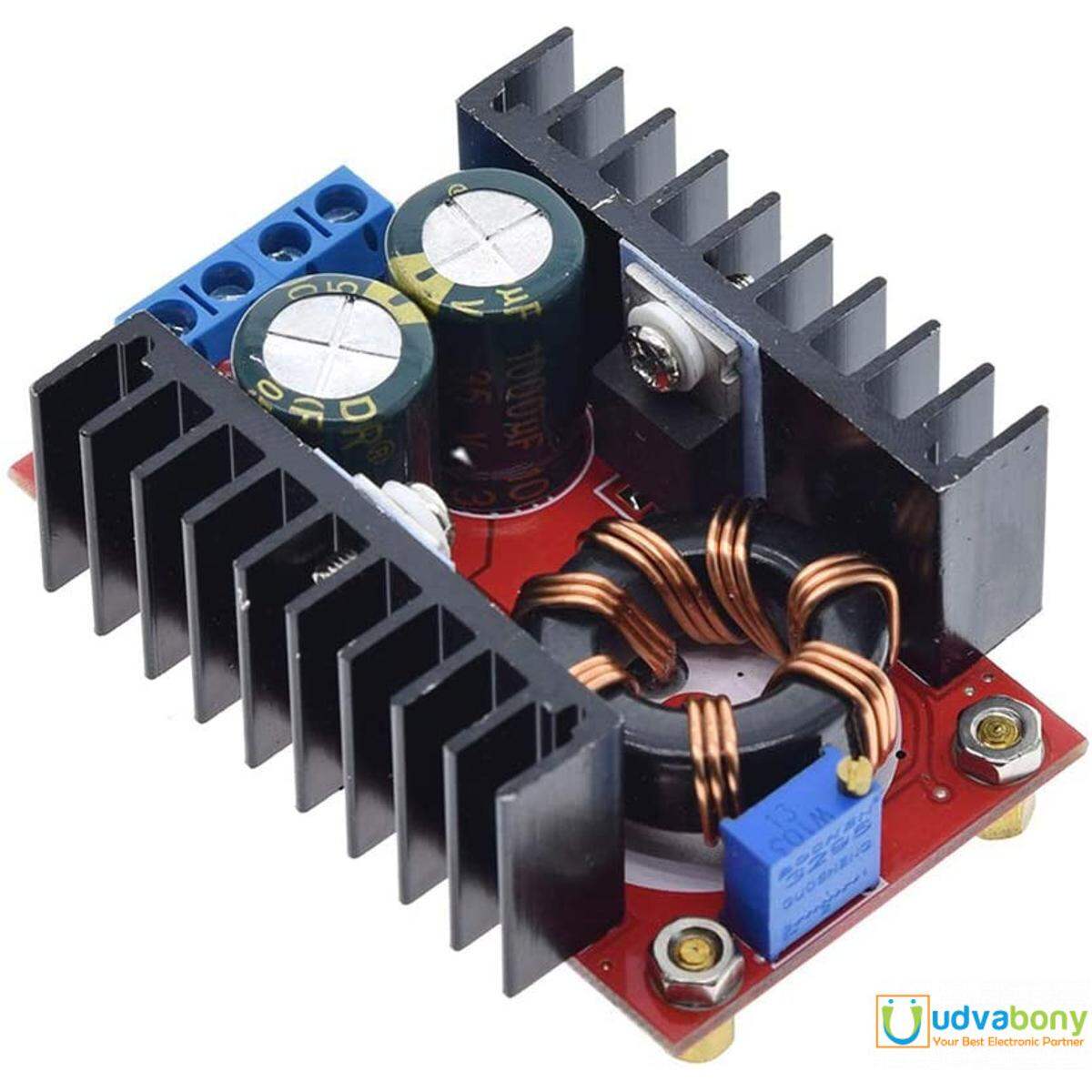

DC-DC Boost Converter 10-32V To 12-35V 6A 150W Step Up Power Supply Module

Description: DC-DC Boost Converter 10-32V To 12-35V 6A 150W Step Up Power Supply Module

• STRONG DRIVING ABILITY: Easily drive 65W 90W dual-core notebook computers; you can also use 12V batteries to drive ordinary 19V 3.42A notebook computers.
• HIGH EFFICIENCY: With a wide input voltage range from 10V to 32V, the step-up converter can accurately adjust output voltage and current. The efficiency can be up to 94%.
• STABLE OUTPUT: It is designed with large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output.
• 2 HEATSINK: The buck module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.
• WIDELY APPLICATIONS: Car laptop power supply, adjustable vehicle power supply, Motors, audio, monitor, LED car display, air conditioner, fans, solar energy, photovoltaic energy, DVD, LED lights, pumps, industrial equipment appliances, etc.

Specifications:

• Module Properties: non-isolated step-up module (BOOST)
• Input voltage :10-32V
• Output voltage: 12-35V (adjustable)
• Output Current: 6A (MAX) Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
• Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
• Easy to drive 65W 90W dual-core notebook.
• Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45c
• Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
• Output Ripple: 2% (MAX) 20M-bandwidth
• Operating Temperature: Industrial (-40Celsius to +85Celsius) (ambient temperature exceeds 40Celsius, lower power use, or to enhance heat dissipation)
• Full load temperature rise: 45Celsius
• No-load current: 25mA typical
• Voltage regulation: 0.5%
• Dynamic response speed: 5% 200uS
• Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
• Input Reverse Polarity Protection: None (Please Series diode at the input port.)
• Size: 65mm x 56.5mm x 23mm / 2.56″ x 2.22″ x 0.91″(L x W x H)

Package Include:

• 1 x DC-DC Boost Converter 10-32V To 12-35V 6A 150W Step Up Power Supply Module
