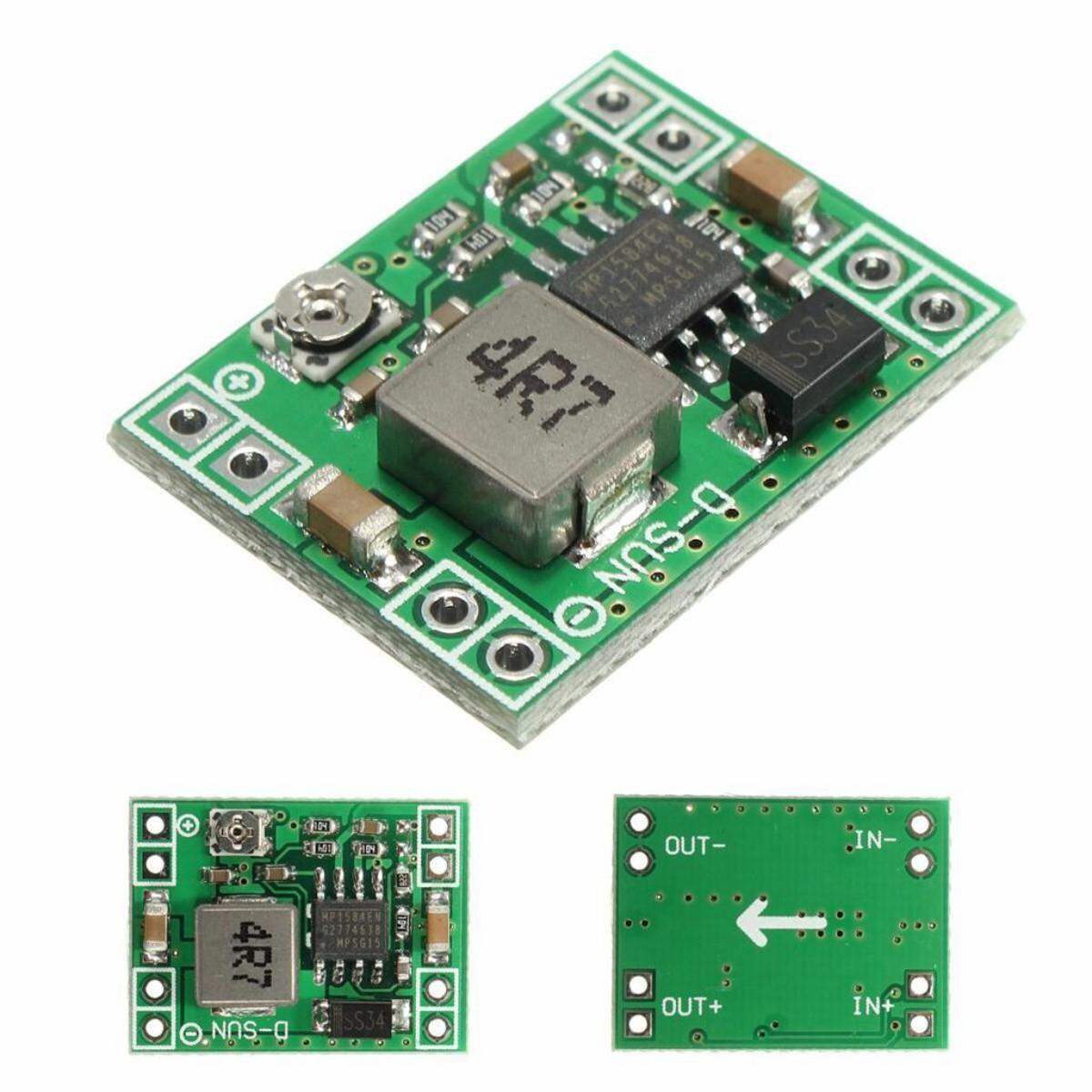

DC DC Step Down MP1584 Buck Converter Adjustable Module 4.5V-28V To 0.8V-20V 3A MP 1584 Power Supply Module Ultra Small For Arduino

Descriptions: DC DC Step Down MP1584 Buck Converter Adjustable Module 4.5V-28V To 0.8V-20V 3A

Mini MP 1584 DC DC 3A Buck Converter Step Down Module use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.

One of our engineers came by and showed off one of his latest finds, the MP 1584 DC-DC buck converter. He needed a small and efficient voltage-reduction circuit for a remote application, and this unit tests out quite well. Inexpensive enough to be worth having a few in the toolbox for emergency voltage regulation!

Features:

• Module Properties: Non-isolated step-down module (BUCK)
• Rectification: Synchronous rectification
• Input voltage: DC 4.75V-28V
• Output voltage: DC 0.8V-20V (Adjustable, Output < Input)
• Output current: Rated current 3A
• Output ripple: 30mV (no-load)
• Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient

Specifications:

• Model:MP1584
• Name: DC-DC step-down module
• Input Voltage: 4.5V-28V
• Output voltage: 0.8V ~ 20V
• Output Current: 3A (Max)
• Conversion efficiency: 96% (maximum)
• Output Ripple: <30mV
• Switching frequency: 1.5MHz (highest) typically 1MHz
• Operating Temperature: -45°C ~ +85°C
• Size: 22x17mm

Package Includes:

• 1 x DC DC Step Down MP1584 Buck Converter Adjustable Module 4.5V-28V To 0.8V-20V 3A
