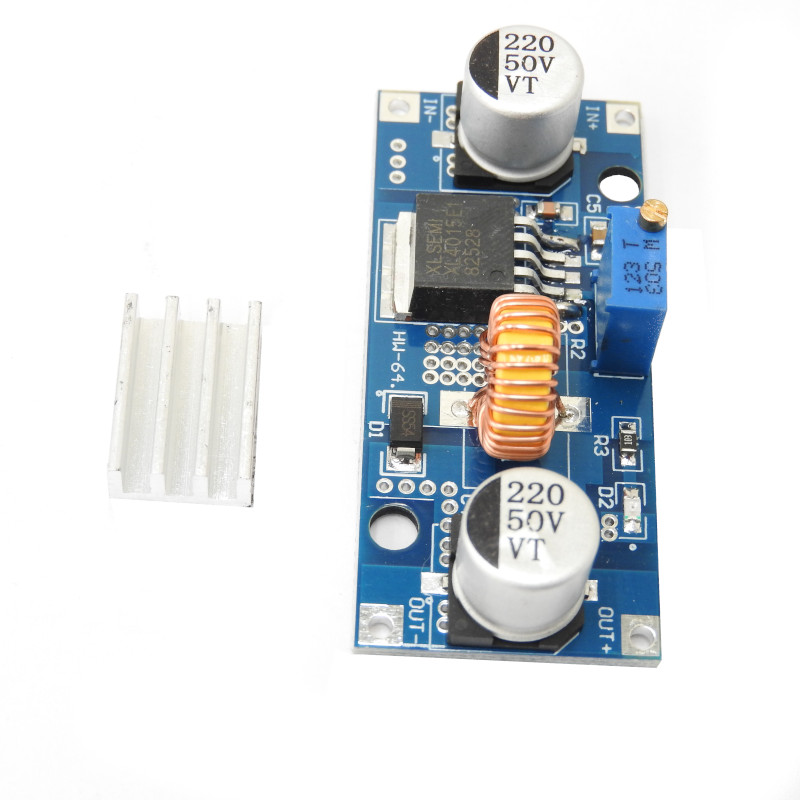

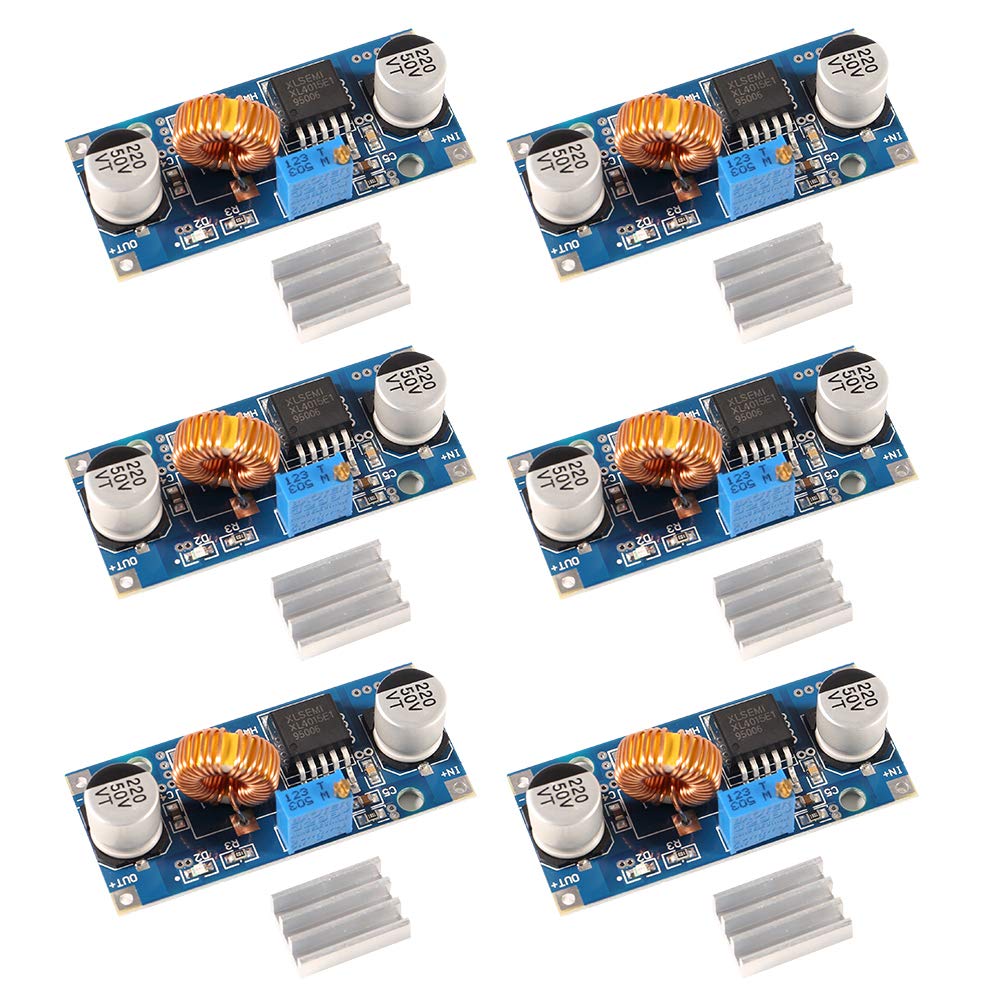

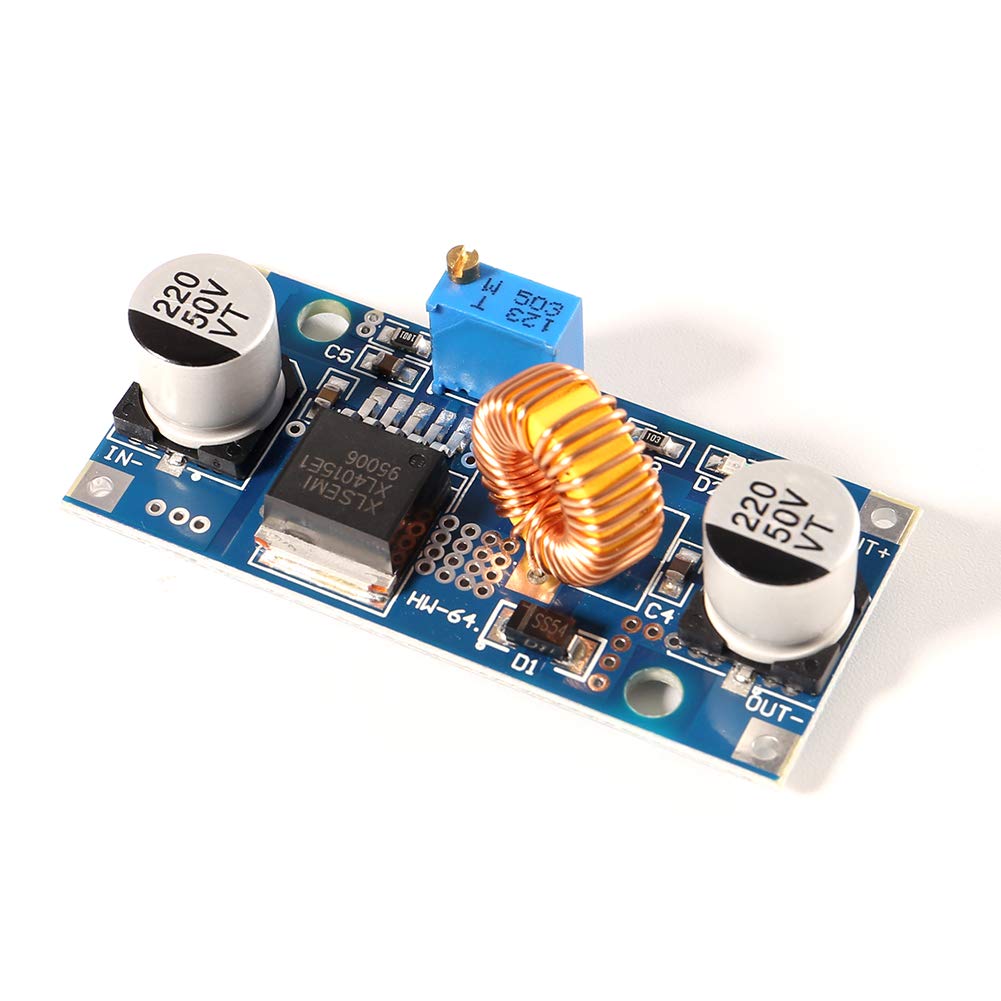

Descriptions: DC DC Step Down XL4015 Buck Converter 4v-38v To 1.25v-32v 5A Adjustable Module Power Supply

XL4015 5A DC-DC Adjustable Step Down Module Power Supply Converter. This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation. Module highlights:5A high power high efficiency and low ripple with power indicator !

Features:

• 5A DC-DC adjustable step-down module XL4015
• Module highlights:5A high power high efficiency and low ripple with power indicator !
• low ripple and excellent line and load regulation.
• This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency

Specification:

• Module properties: non-isolated step-down module ( BUCK )
• Rectification: non-synchronous rectifier
• Input voltage: DC 4V ~ 38V
• Output voltage: DC 1.25V ~ 32V ( adjustable )
• Output current: 0A ~ 5A
• Output power: 75W ( more than 50W please add heat sink )
• Operating Frequency: 180KHz
• Operating Temperature: -40°C ~ +85°C
• Load regulation: S(I)≤0.8%
• Voltage regulation: S(u)≤0.8%

Application areas:

• DIY mobile power supply, car power supply, communication equipment power supply, etc.

• Module properties: non-isolated step-down module ( BUCK )
• Rectification: non-synchronous rectifier
• Input voltage: DC 4V ~ 38V
• Output voltage: DC 1.25V ~ 32V ( adjustable )
• Output current: 0A ~ 5A
• Output power: 75W ( more than 50W please add heat sink )
• Operating Frequency: 180KHz
• Operating Temperature: -40°C ~ +85°C
• Load regulation: S(I)≤0.8%
• Voltage regulation: S(u)≤0.8%
