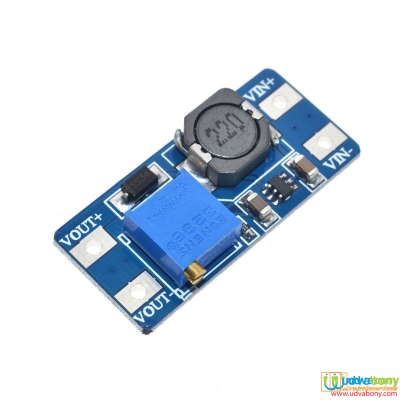

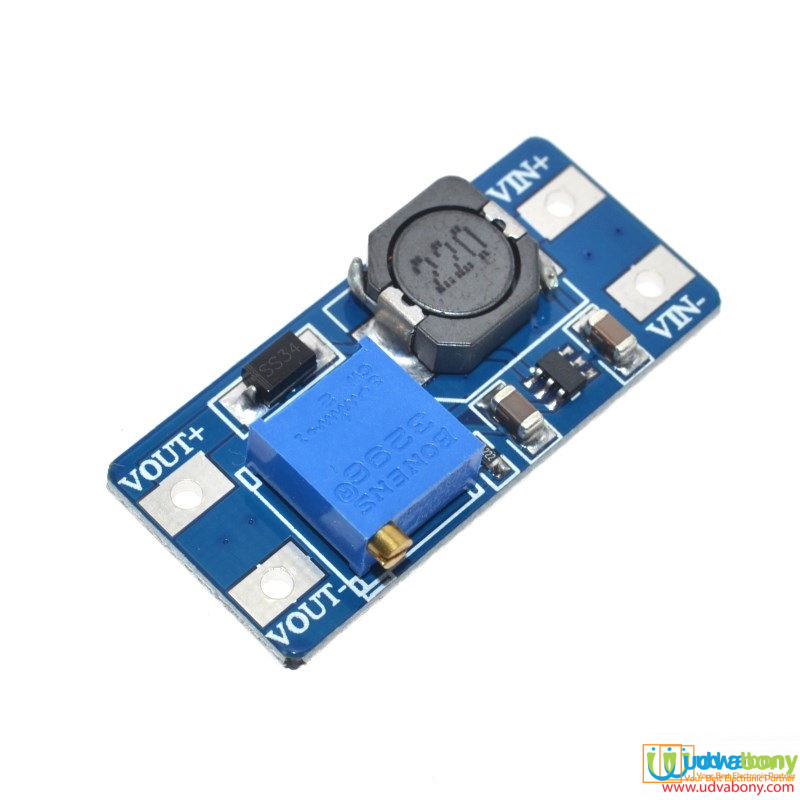

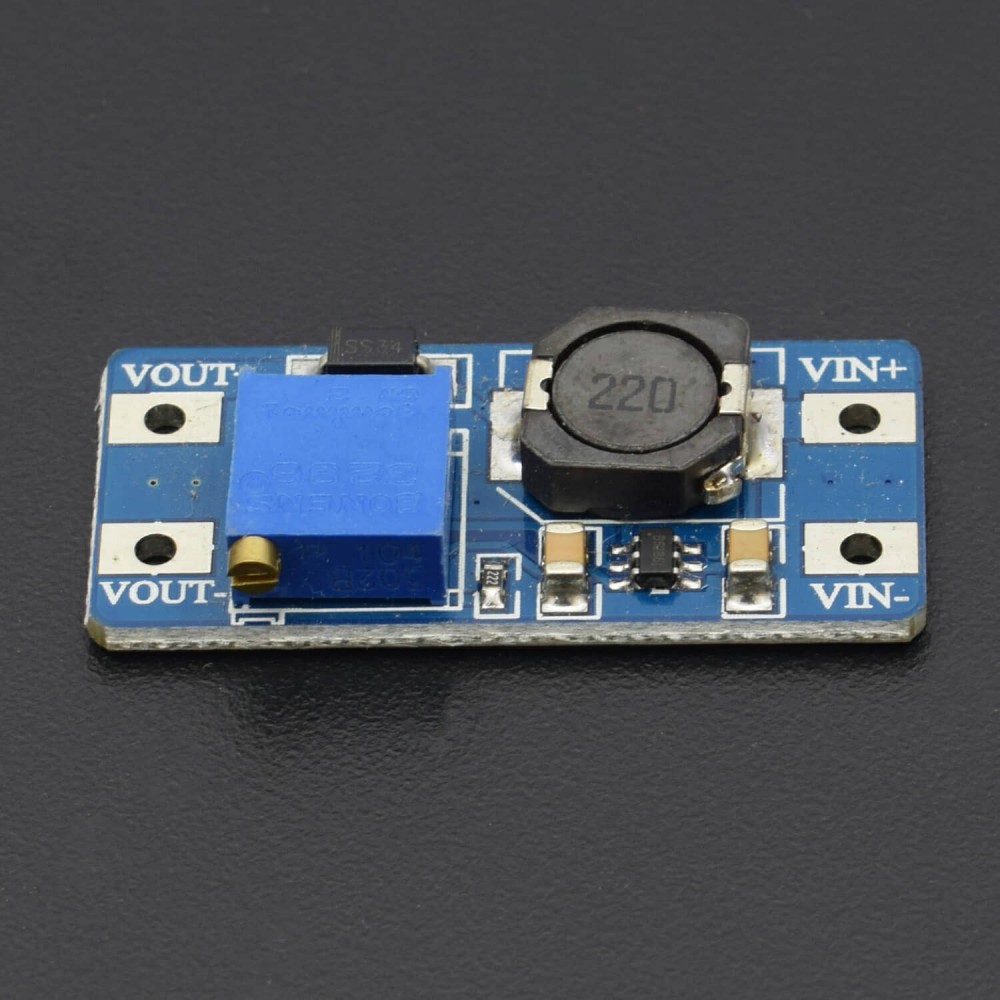

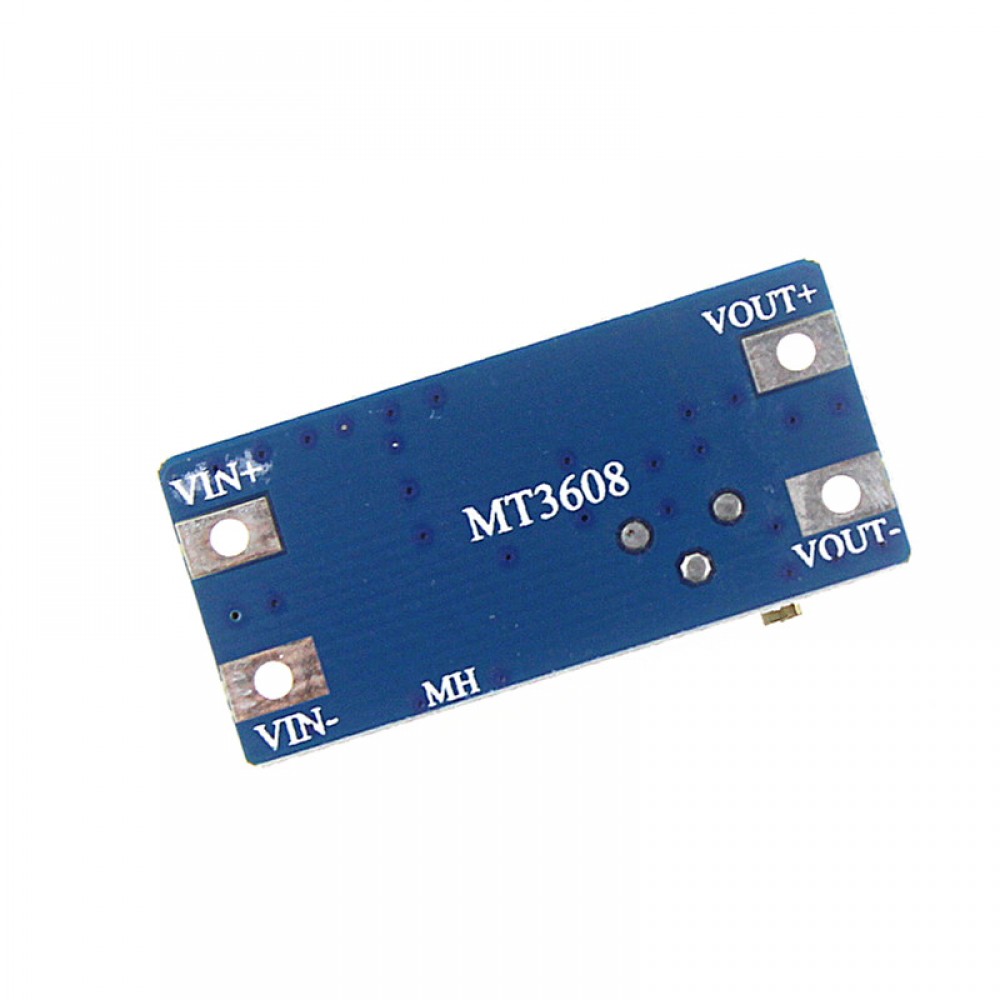

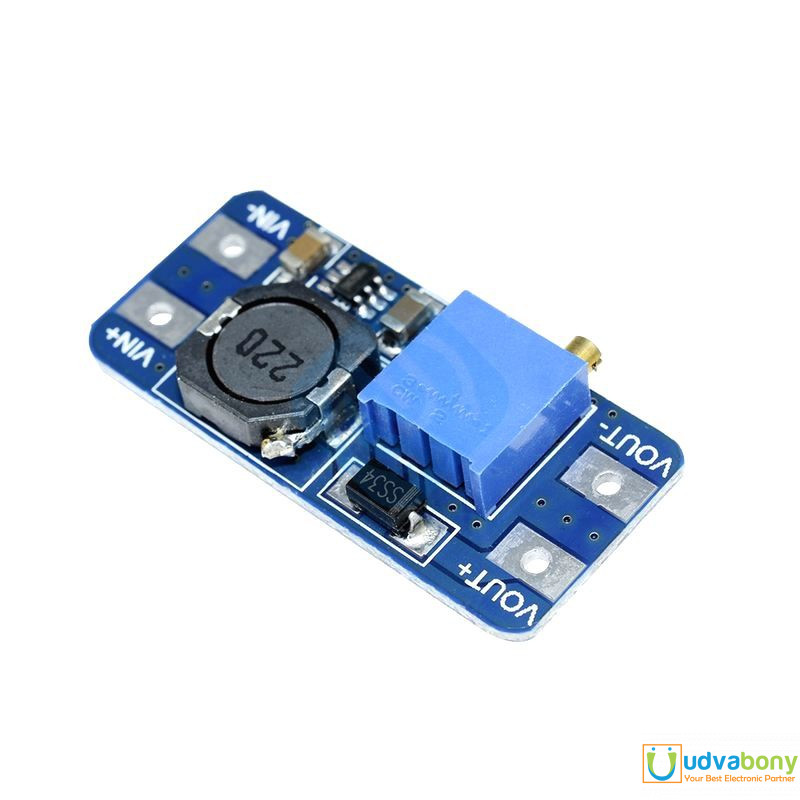

Description: DC DC Step Up MT3608 Boost Converter Micro USB DC 2V-24V to 5V-28V 2A Adjustable Voltage Regulator Module Power Supply

The module supports Micro USB input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use. Wide input and output voltage, high conversion efficiency.

Features:

Mini DC-DC voltage booster module supporting DC 2V-24V input and DC 5V-28V adjustable voltage output with high conversion efficiency up to 93%. With on-board micro USB power input port, just connect with the common USB power adapter then you can get 9V/12V/15V/18V/24V output voltage which is ideal for DIY power supply.This is a boost converter module, so the output voltage should be at least 2V higher than the input voltage.Please turn the potentiometer clockwise by more than 10 turns before the testCannot select the maximum value of voltage and current as of the output at the same time. When the output voltage is increased, the output current is reduced accordingly.

Specifications:

Integrated 80m? Power MOSFET2V to 24V Input Voltage1.2MHz Fixed Switching FrequencyInternal 4A Switch Current LimitAdjustable Output VoltageInternal CompensationUp to 28V Output VoltageAutomatic Pulse Frequency Modulation mode at Light LoadsUp to 97% Efficiency

How to Use:

Connect the power supply and the load, then you can supply to the controller.It displays the measured temperature, press SET key, the display temperature flashing, press"+" "-" to set the desired temperature. After finished, press SET to confirm and back.Now the controller automatically performs the relay by setting off.This temperature controller output is 10A relay, meeting various high-power loads, please make sure the wires are connected correctly.

Precautions:

This module is a step-up module, the output voltage is greater than the input voltage.peak current output current does not exceed 2A

Applications:

Battery-Powered EquipmentSet-Top BoxedLCD Basic SupplyDSL and Cable Modems and RoutersNetworking cards powered from PCI or PCI express slots

Package Include:

1 x MT3608 Output 28V 2A DC-DC Up Converter With Micro USB

• Integrated 80m? Power MOSFET
• 2V to 24V Input Voltage
• 1.2MHz Fixed Switching Frequency
• Internal 4A Switch Current Limit
• Adjustable Output Voltage
• Internal Compensation
• Up to 28V Output Voltage
• Automatic Pulse Frequency Modulation mode at Light Loads
• Up to 97% Efficiency
