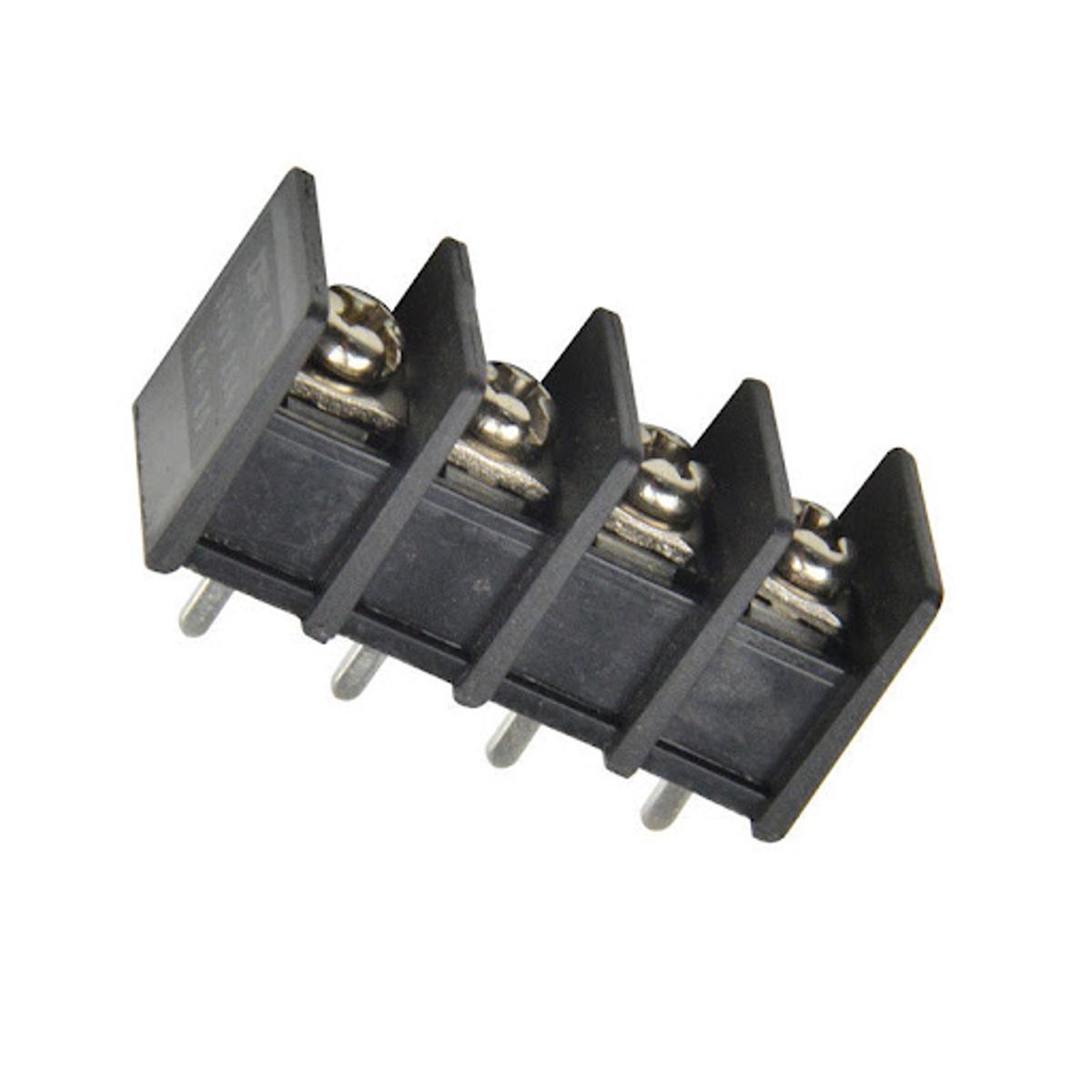

Picture of DG45 4 Pin 10mm Screw Panel Mount PCB Barrier Terminal Block Cables Connector Straight M4 Steel Nickel Plated 4 Pole Connector
Picture of DG45 4 Pin 10mm Screw Panel Mount PCB Barrier Terminal Block Cables Connector Straight M4 Steel Nickel Plated 4 Pole Connector

DG45 4 Pin 10mm Screw Panel Mount PCB Barrier Terminal Block Cables Connector Straight M4 Steel Nickel Plated 4 Pole Connector

Category: Building Materials
SKU: UDBD05827
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 44
Tk 52
Tk 52
15% OFF
0 review(s)
  • Number of Poles: 4.
  • Voltage Rating: 300V.
  • Current Rating: 20A.
  • Wire Gauge: 22~12 AWG.
  • Pin Spacing: 9.5mm.
  • Housing Material: PA66UL94V-0.
  • Solder Pin: Tinned Brass.
  • Screw: M4 Steel Nickel plated. Cross Head.
  • Mounting Type: PCB thru-hole.
  • Rated impulse voltage: 2KV.

Call For Order : 09613-800800

Description: DG45 4 Pin 10mm Screw Panel Mount PCB Barrier Terminal Blocks Connector Straight M4 Steel Nickel Plated 4 Pole

9.5mm spacing barrier terminals. The terminal accepts wire gauge of 22~12AWG. Connectors are available in black PA66 material.

Features:

  • Number of Poles: 4.
  • Voltage Rating: 300V.
  • Current Rating: 20A.
  • Wire Gauge: 22~12 AWG.
  • Pin Spacing: 9.5mm.
  • Housing Material: PA66UL94V-0.
  • Solder Pin: Tinned Brass.
  • Screw: M4 Steel Nickel plated. Cross Head.
  • Mounting Type: PCB thru-hole.
  • Rated impulse voltage: 2KV.

Package Include:

  • 1 x DG45 4 Pin 10mm Screw Panel Mount PCB Barrier Terminal Blocks Connector Straight M4 Steel Nickel Plated 4 Pole






  • Number of Poles: 4.
  • Voltage Rating: 300V.
  • Current Rating: 20A.
  • Wire Gauge: 22~12 AWG.
  • Pin Spacing: 9.5mm.
  • Housing Material: PA66UL94V-0.
  • Solder Pin: Tinned Brass.
  • Screw: M4 Steel Nickel plated. Cross Head.
  • Mounting Type: PCB thru-hole.
  • Rated impulse voltage: 2KV.
