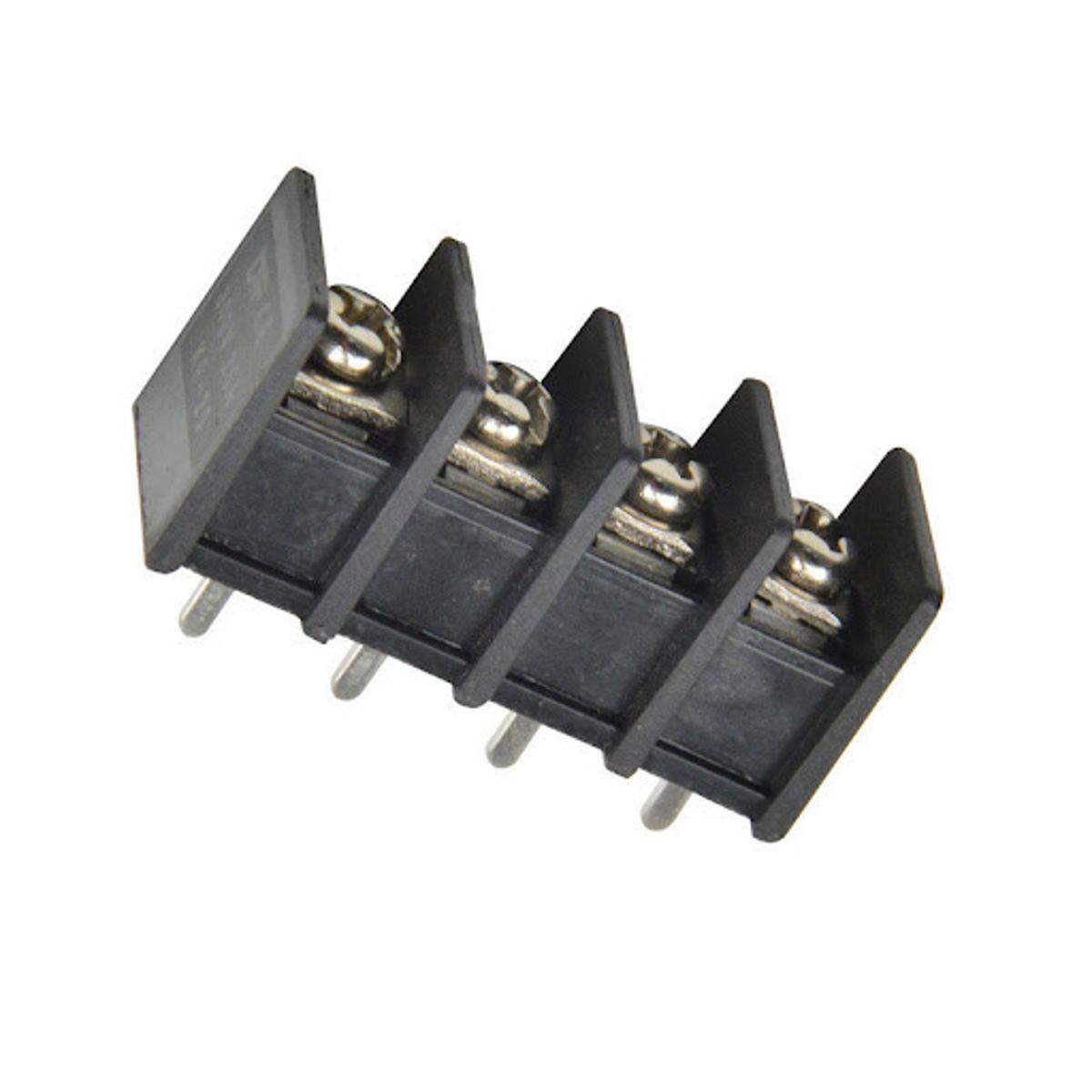

DG45 4 Pin 10mm Screw Panel Mount PCB Barrier Terminal Block Connector Straight M4 Steel Nickel Plated 4 Pole Electrical Circuitry & Parts

Description: DG45 4 Pin 10mm Screw Panel Mount PCB Barrier Terminal Blocks Connector Straight M4 Steel Nickel Plated 4 Pole

9.5mm spacing barrier terminals. The terminal accepts wire gauge of 22~12AWG. Connectors are available in black PA66 material.

Features:

• Number of Poles: 4.
• Voltage Rating: 300V.
• Current Rating: 20A.
• Wire Gauge: 22~12 AWG.
• Pin Spacing: 9.5mm.
• Housing Material: PA66UL94V-0.
• Solder Pin: Tinned Brass.
• Screw: M4 Steel Nickel plated. Cross Head.
• Mounting Type: PCB thru-hole.
• Rated impulse voltage: 2KV.

Package Include:

• 1 x DG45 4 Pin 10mm Screw Panel Mount PCB Barrier Terminal Blocks Connector Straight M4 Steel Nickel Plated 4 Pole
