Description: DHT22 Digital Temperature Humidity Sensor Module

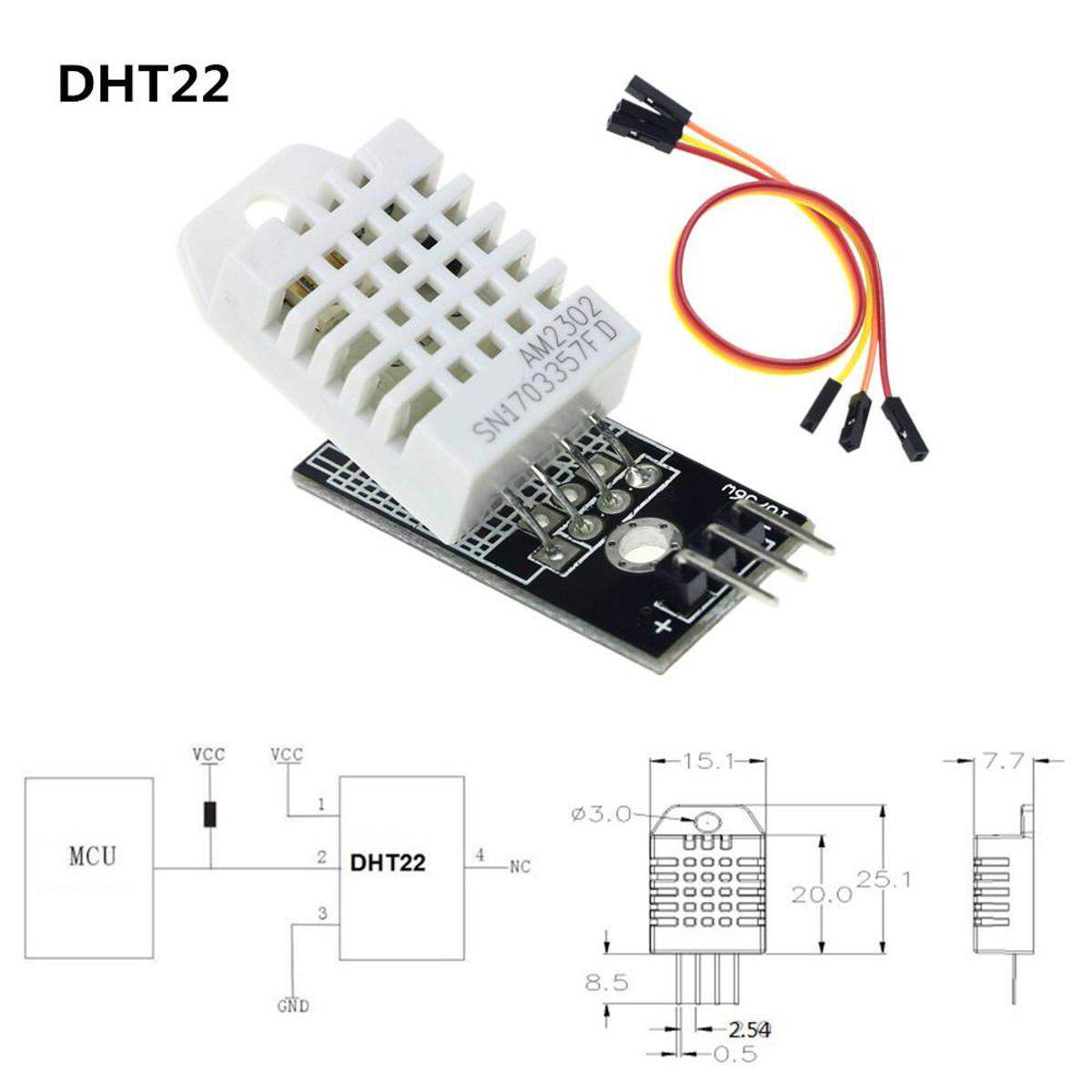

DHT22 DHT-22 DC 3.3V-5V 3 Pin Temperature And Relative Humidity Sensor AM2302 Module With Matching Doupont Cable Digital Temperature Humidity Sensor Module For Arduino Electronics Circuitry & Parts

The DHT22 Digital Temperature and Humidity Sensor Module AM2302 is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and spits out a digital signal on the data pin (no analog input pins needed). Its fairly simple to use, but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so when using our library, sensor readings can be up to 2 seconds old.

Simply connect the first pin on the left to 3-5V power, the second pin to your data input pin and the rightmost pin to ground. Although it uses a single-wire to send data it is not Dallas One Wire compatible! If you want multiple sensors, each one must have its own data pin!

Features:

• High precision
• Capacitive type
• Full range temperature compensated
• Relative humidity and temperature measurement
• Calibrated digital signal
• Outstanding long-term stability
• Extra components not needed
• Long transmission distance
• Low power consumption
• 4 pins packaged and fully interchangeable
• Measuring range: temperature -40-80 ℃; humidity 0; 99.9%RH
• Measurement accuracy (25℃): temperature: + 0.5; humidity: + 2%RH (10; 90%RH)
• Resolution: temperature: 0.1 ℃, humidity: 0.1%RH
• Attenuation value: temperature: <1℃ / year; humidity: < 1%RH/ years
• Sensor type: temperature: resistance type sensor; humidity: capacitive sensor
• Response time: temperature: 5S; humidity: 5S 1/e (63%)
• Work within the scope: -40-80℃
• Power source: DC3.3-5.5V
• Shell material: PC plastic
• Weight:1g
• Color: White

Specifications:

• Operating Voltage: 3.5V to 5.5V
• Operating current: 0.3mA (measuring) 60uA (standby)
• Output: Serial data
• Temperature Range: -40°C to 80°C
• Humidity Range: 0% to 100%
• Resolution: Temperature and Humidity both are 16-bit
• Accuracy: ±0.5°C and ±1%
• Size: 38 x 20mm

Module interface description:

Applications:

HVAC (Heating Ventilation Air Conditioning), dehumidifiers, testing and inspection equipment, consumer goods, automotive, automation, data loggers, home appliances, humidity regulator , medica weather stations, and other related humidity detection control.

• Measure temperature and humidity
• Local Weather station
• Automatic climate control
• Environment monitoring

Package included:

• 1 x DHT22 Digital Temperature & Humidity Sensor DHT-22 AM2302 Temperature Sensor And Humidity Sensor ModuleWith Doupont Cable Wire
