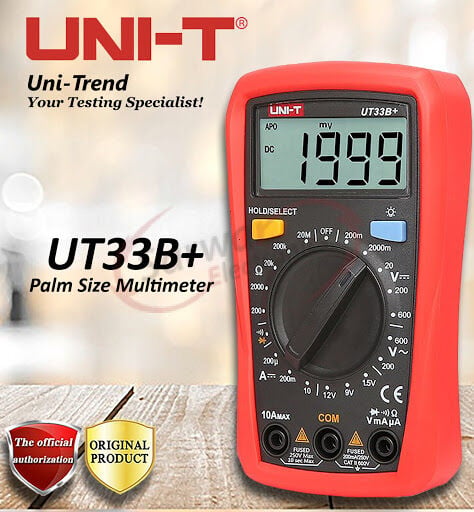

Digital Multimeter UT33B+ For AC/DC

Brand
SKU: ELPB1014736
Manufacturer: No Brand

Tk 1,878


Description: UT33B+ AC/DC Voltage Digital Multimeter

The new generation UT33+ series redefines the performance standards for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. The UT33+ series safety standards have also been enhanced to ensure that users can work safely in CAT ll 600V environment.

Main Features:

  • Clear LCD display
  • Equipped with comfortable protective cover, test lead hanging slot
  • 2m drop proof with precision protection
  • Auto power off
  • Auto backlight off
  • Loud buzzer
  • Ergonomically designed rotary switch

Specification:

SpecificationsRangeAccuracy

UT33B+
DC voltage (V)200.0mV~600V±(0.5%+3)
AC voltage (V)200.0mV~600V

200.0V~600V±(1.2%+3)
DC current (A)200.0μA~10.00A±(1.0%+3)
AC current (A)200.0μA~10.00ANA
Resistance (Ω)200.0Ω~200.0MΩ

200.0Ω~20.00MΩ±(0.8%+2)
Capacitance (F)2.000nF~2.000mFNA

Features
Max display

1999
Auto power off

Auto backlight off

Diode test

Continuity buzzer

Drop test

2m
Test probe holder

Safety rating

CAT Ⅱ 600V
Range selection

Manual
Battery test

1.5V/9V/12V
Temperature (°C/°F)

NCV

General Characteristics

PowerAAA battery (zn-mn) 1.5V×2

LCD size66mm*51mm

Product colorRed and grey

Product net weight473g

Product size131mm×95mm×58mm

Standard accessoriesTest lead, manual

Package Include:

  • 1 x UT33B+ AC/DC Voltage Digital Multimeter
