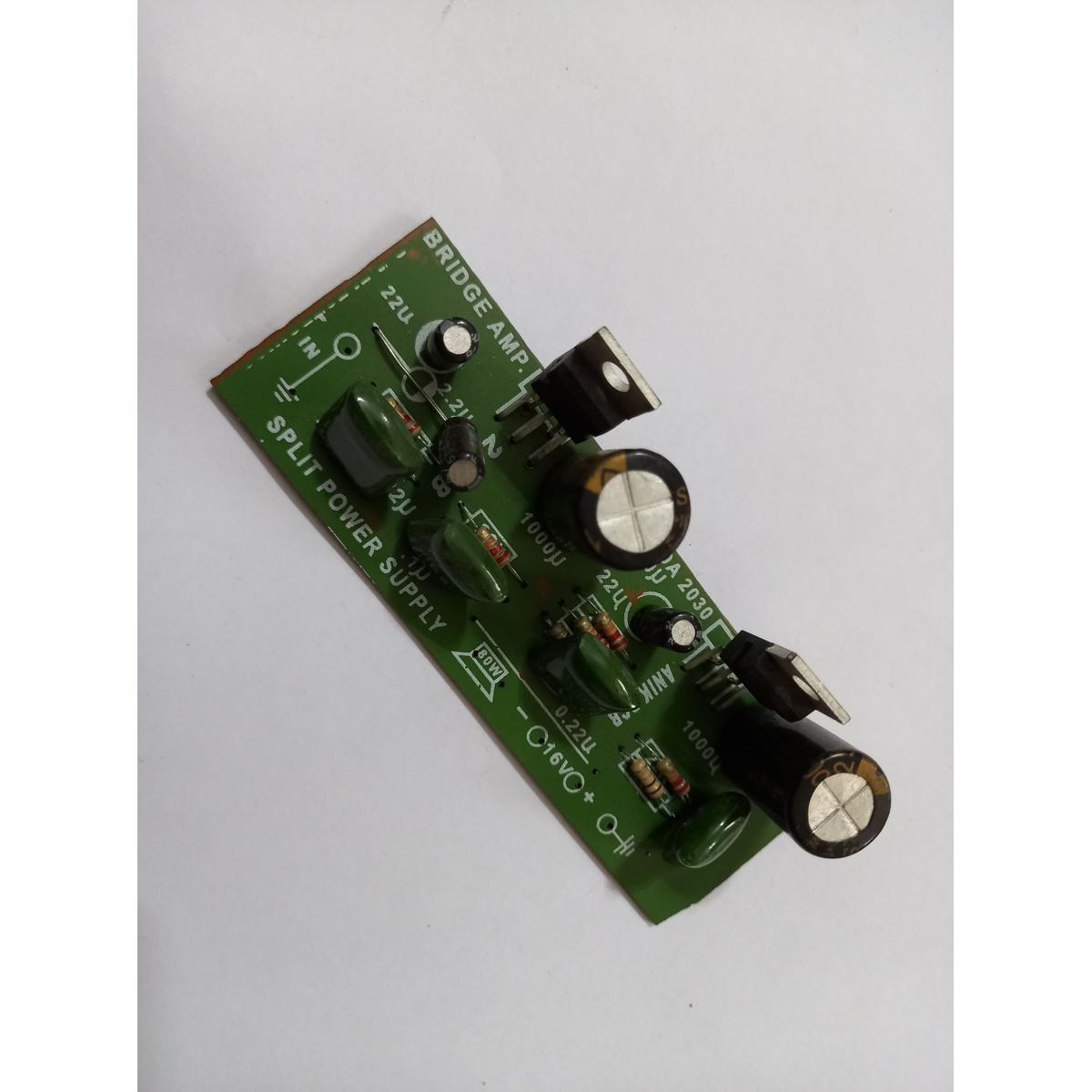

Description: TDA2030A Amplifier Board Double IC 18W

This power amplifier template adopted there ST’s TDA2030 power amplifier IC, the whole circuit design is reasonable, beautiful and easy, noise, high cost performance, dual power supply, input voltage of alternating current (ac) 9 v to 12 v. Components layout is reasonable, strong power 18w, almost no static noise, good listening, less peripheral components, easy to install, very suitable for home audio system modification or add, widely used in all kinds of active speakers

Features:

• Double IC
• High output current
• Very low harmonic and crossover distortion
• Short-circuit protection
• 18w
• Voltage: 12V Transformer.
• Output Impedance :4-16 ohm.

• Double IC
• High output current
• Very low harmonic and crossover distortion
• Short-circuit protection
• 18w
• Voltage:  12V Transformer.
• Output Impedance :4-16 ohm.
