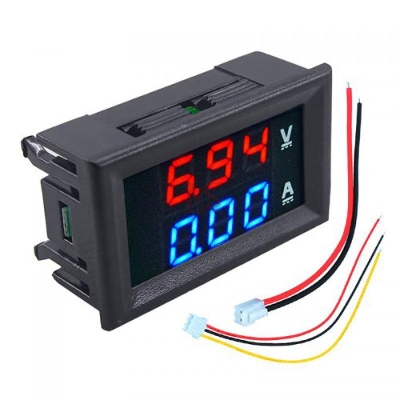

Description: DC100V 10A Digital Voltmeter & Ammeter

• Voltmeter Range: DC 0-100V ; Ammeter Range: DC 0-9.99A.
• Voltage resolution (V): 0.1V;Current resolution (A): 0.01A
• Working voltage of Meter itself:DC 4 – 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
• Display: Dual 0.28″ three digit Red/Blue LED tube, very bright and clear.
• Measure accuracy: 1% (± 1 digit)

Features:

• Working voltage of Meter itself:DC 4 – 30V
• Working current of Meter itself:≤20mA
• Voltage Measuring range: DC 0 – 100V
• Current Measuring range: DC 0 – 9.99A
• Voltage resolution (V): 0.1V
• Current resolution (A): 0.01A
• Measure accuracy: 1% (± 1 digit)
• Display: 0.28″ digital tube, Two color blue and red
• Refresh rate: about 300mS / times
• Dimensions:48mm*29mm*26mm
• Operation Temp: -10℃-+65℃

Wire Connection:

• Thin Red line (VCC): Power Supply + (DC 3.5-30V +)
• (if the measure voltage between DC 3.5-30V, then the Thin Yellow line and Thin Red line can connect together)
• Thin Black line (GND): Power Supply – (DC 3.5-30V -), Measure Voltage – (DC 0-100V -)
• Thin Yellow line (VIN): Measure Voltage + (DC 0-100V +)
• Thick Red line (I+): Current Input +
• Thick Black line (I-): Current Input –
• More detail please check the description picture.

Error Phenomena:

• Due to the aging of the device and change of ambient temperature1. The error becomes larger when measuring small current.Solution: When there is no load, short-circuit 2 pads of KEY and then power on, the module will automatically do zero calibration, after that shut off the module and cut the short circuit point.
• 2. The error becomes larger in whole measurement range
  Solution: When connecting load(half of the range is best), keep adjusting R7 until it displays the same value with the more advanced calibration source.

Package Included:

• 1 x DC 100V 10A Digital Voltmeter & Ammeter

• Working voltage of Meter itself:DC 4 – 30V
• Working current of Meter itself:≤20mA
• Voltage Measuring range: DC 0 – 100V
• Current Measuring range: DC 0 – 9.99A
• Voltage resolution (V): 0.1V
• Current resolution (A): 0.01A
• Measure accuracy: 1% (± 1 digit)
• Display: 0.28″ digital tube, Two color blue and red
• Refresh rate: about 300mS / times
• Dimensions:48mm*29mm*26mm
