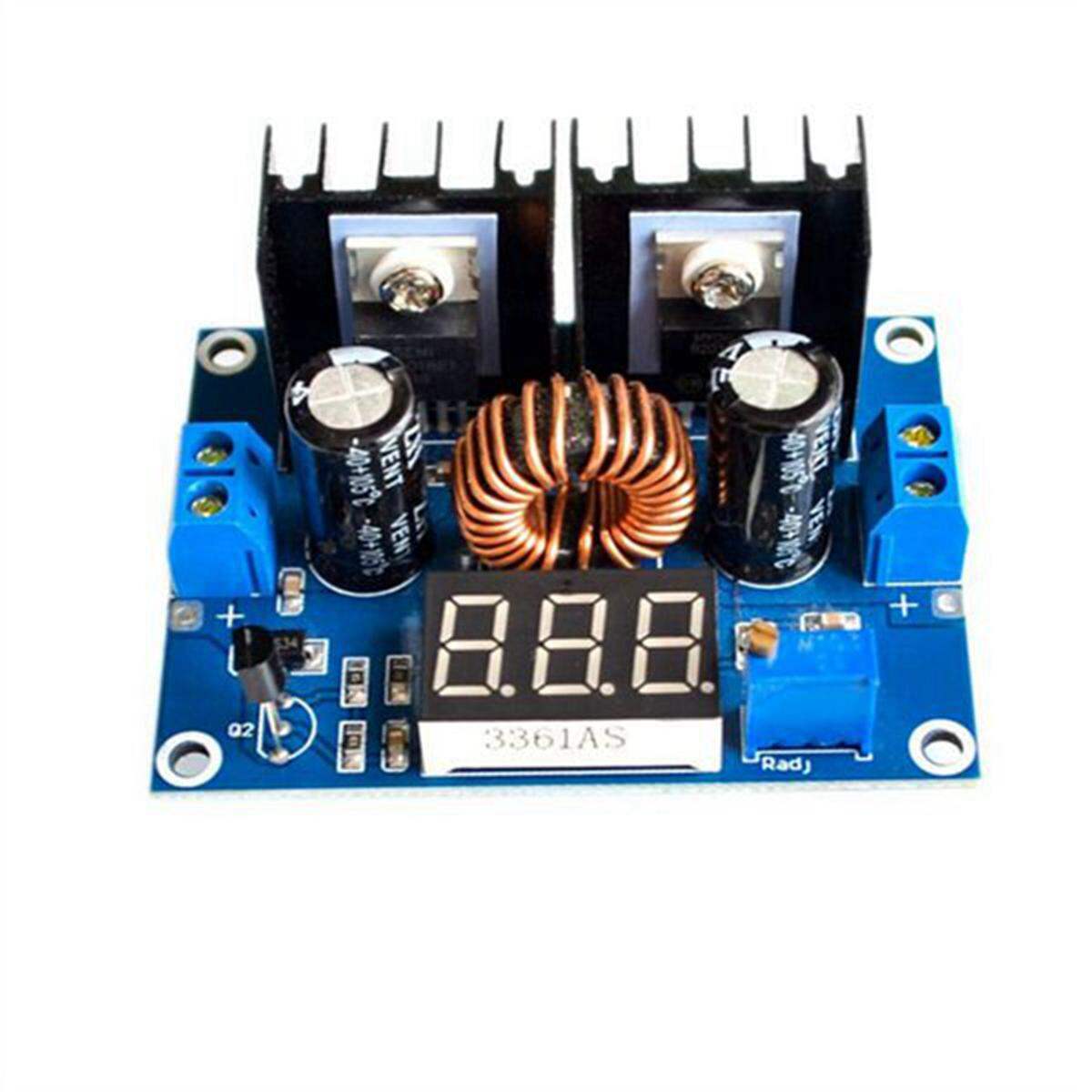

DUAL IC Heatsinks With Display XL4016 XL-4016 DC DC Step Down PWM BUCK Converter 4-36V To 1.25-36V 8A 200W Adjustable Power Supply Adapters Module

DC DC Step Down XL4016 PWM Buck Converter 4-36v To 1.25-36v 8A 200W Adjustable Module Power Supply. The voltage regulator has excellent linearity regulation and load regulation. With multiple protection: over-current protection, over-temperature protection and short circuit protection, etc. The maximum output current can reach 8A; For long time working please make sure the current is less than 5A. This is not a step up module, but a step down module

• Car audio, radio, navigator, monitor, LED car display, air conditioner, interphone, motors etc
• Product name: DC voltage regulator
• Voltage regulating mode: PWM modulation
• Input voltage: DC 4-36V
• Output voltage: DC 1.25-36V
• Maximum current: 8A(please add fan and make current less than 5A for a long term use)
• Maximum power: 200W
• Conversion efficiency: 95%
• Switching frequency: 180KHz
• Working Temperature: -45~+85℃
• Size: 6×3.7cm

Wide Application:

• Car audio, radio, navigator, monitor, LED car display, air conditioner, interphone, motors etc

Note:

• Please make sure there is a 2V voltage difference between input voltage and output voltage
• The maximum output current can reach 8A; For long time working please make sure the current is less than 5A.
• This is not a step up module, but a step down module
