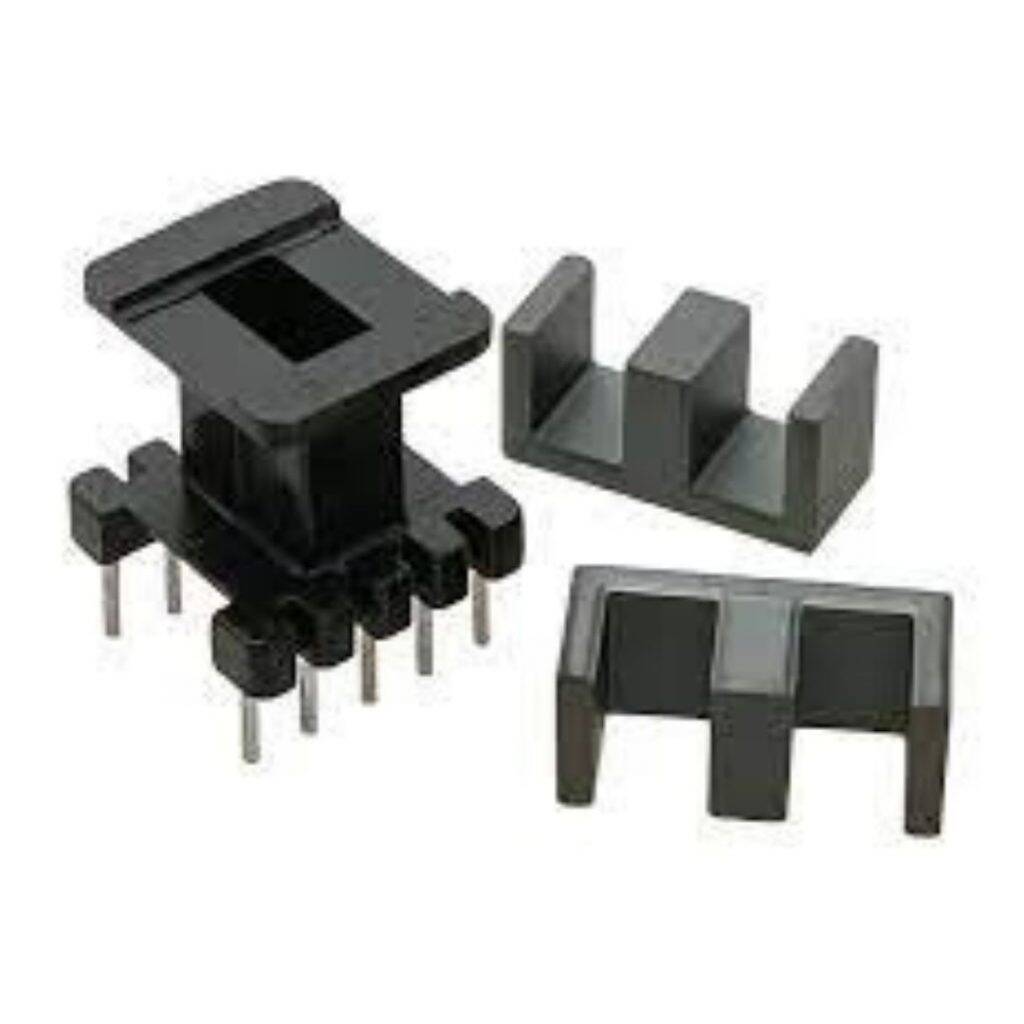

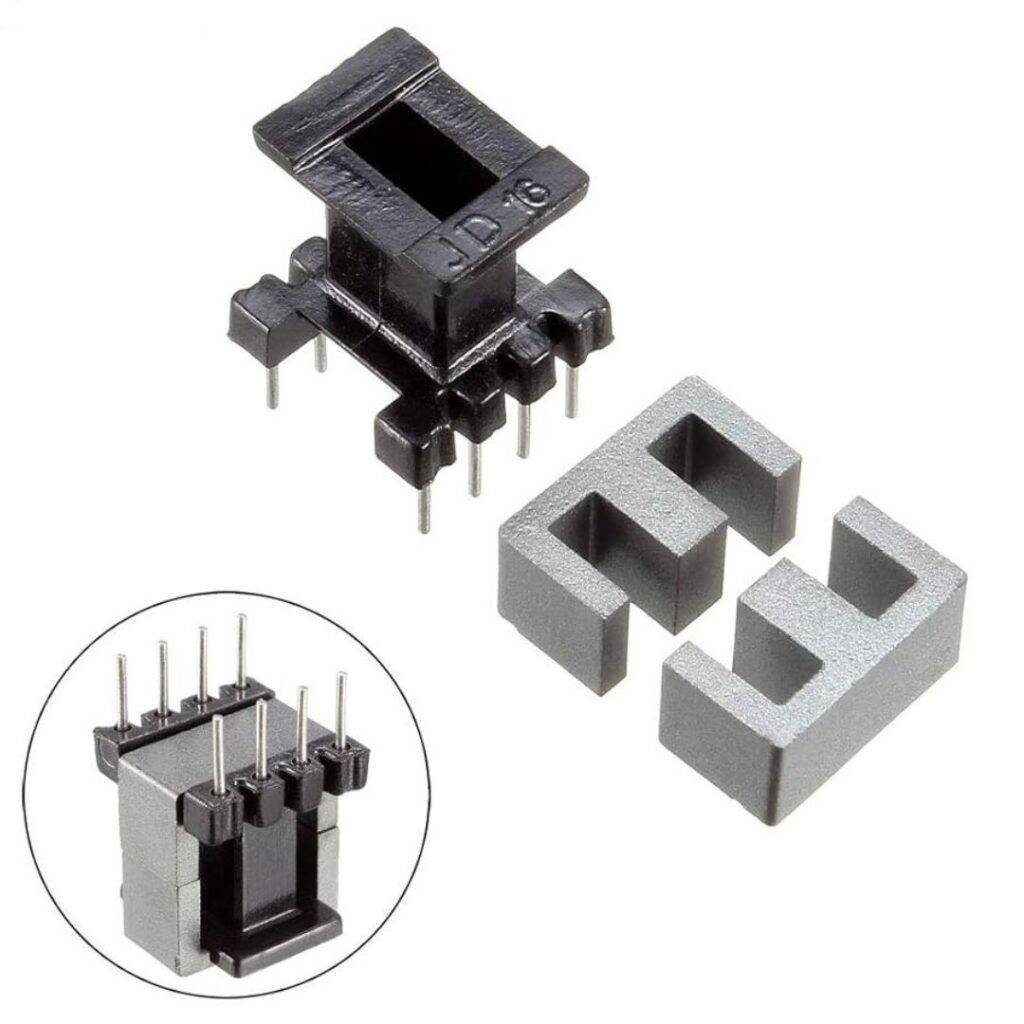

EE25 Transformer Set with 4+4 8Pin Bobbin Ferrite Core for Power Circuit Projects

Description: EE25 Transformer Ferrite Core with 4+4 8-Pin Bobbin

The EE25 transformer ferrite core set with an integrated 4+4 8-pin bobbin is ideal for use in switch-mode power supplies (SMPS), DC-DC converters, and other high-frequency transformer applications. The EE25 core provides a compact form factor with efficient magnetic performance, while the bobbin offers easy winding and PCB mounting.

Specifications:

• Core Type: EE25 Ferrite Core
• Core Material: Ferrite (typically made of MnZn for high-frequency applications)
• Bobbin Type: Horizontal (or Vertical, depending on your version)
• Pin Configuration: 8 Pins (4+4) — Dual row, suitable for primary and secondary windings
• Core Dimensions: Approx. 25mm (central column width)
• Mounting Type: Through-hole
• Applications:
  • Switch-Mode Power Supplies (SMPS)
  • Flyback or Forward Converters
  • LED Drivers
  • DC-DC Converters
  • Small power adapters

Features:

• High magnetic permeability for efficient energy transfer
• Compact and lightweight design
• Easy winding access with 4+4 bobbin pins
• Suitable for high-frequency applications
• Insulated bobbin for enhanced safety and thermal performance

Package Include:

• 1 x 1 Pcs bobbin+ 2 Pcs E Core
