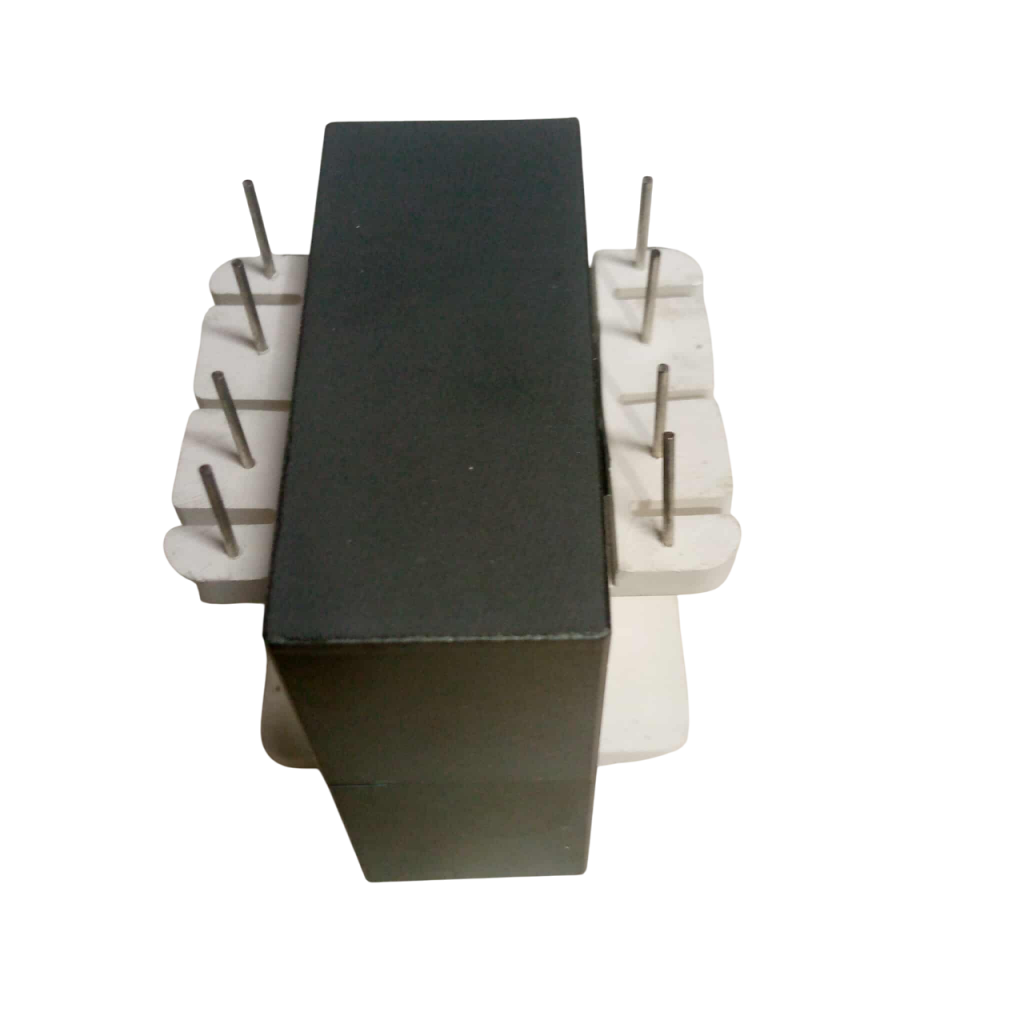

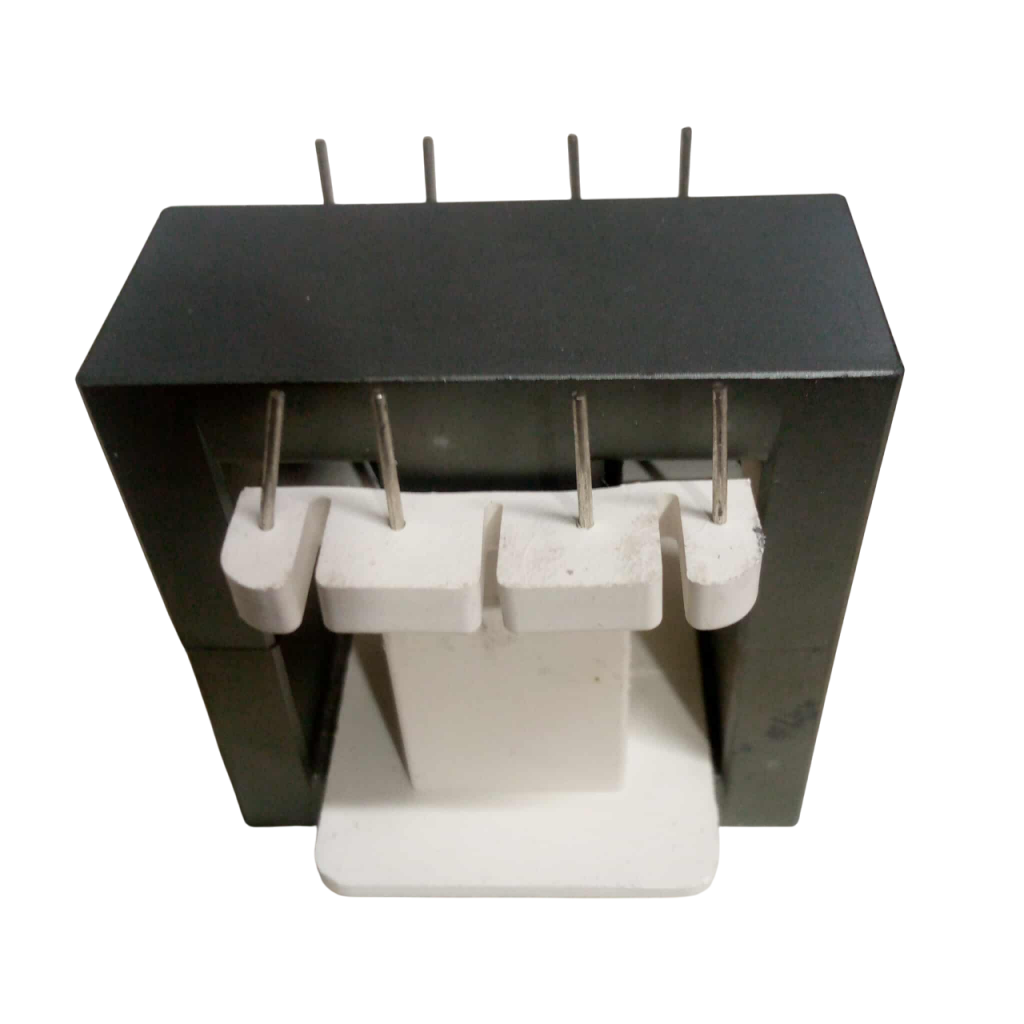

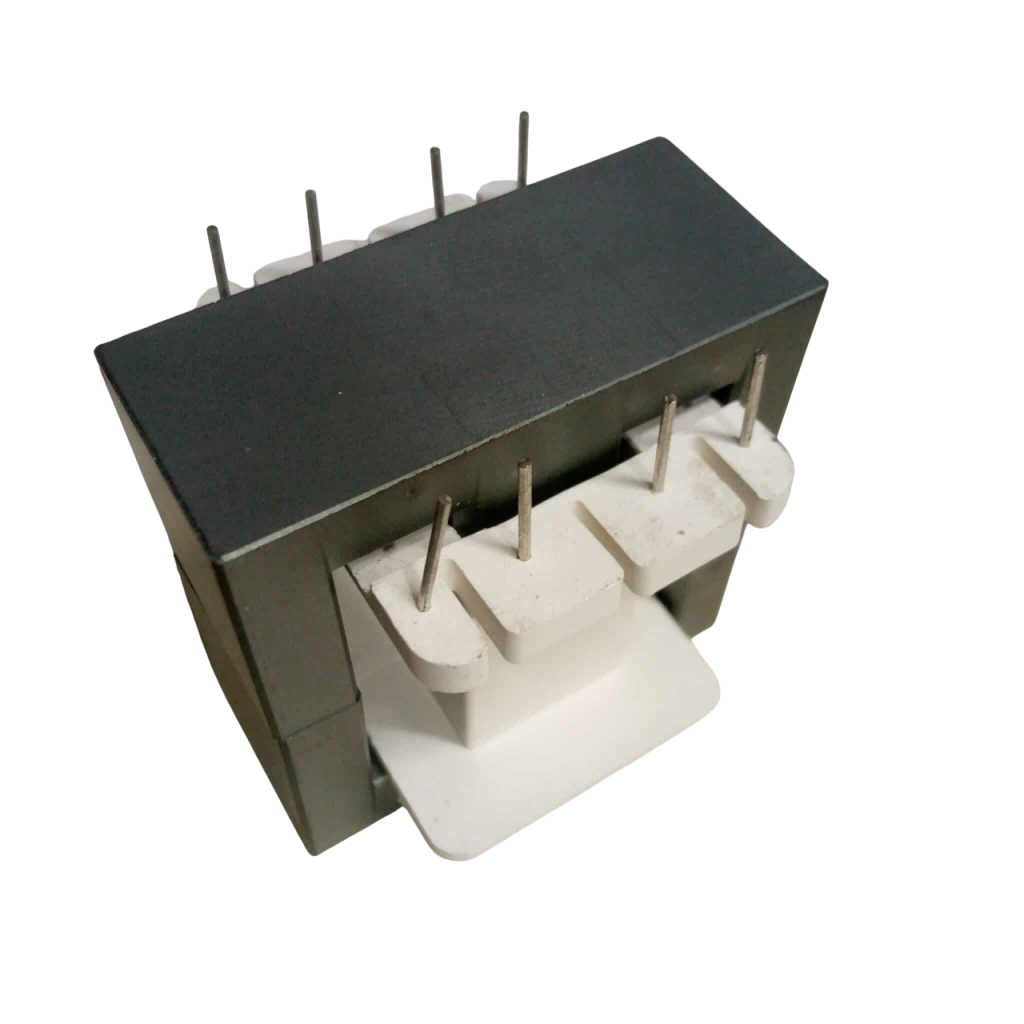

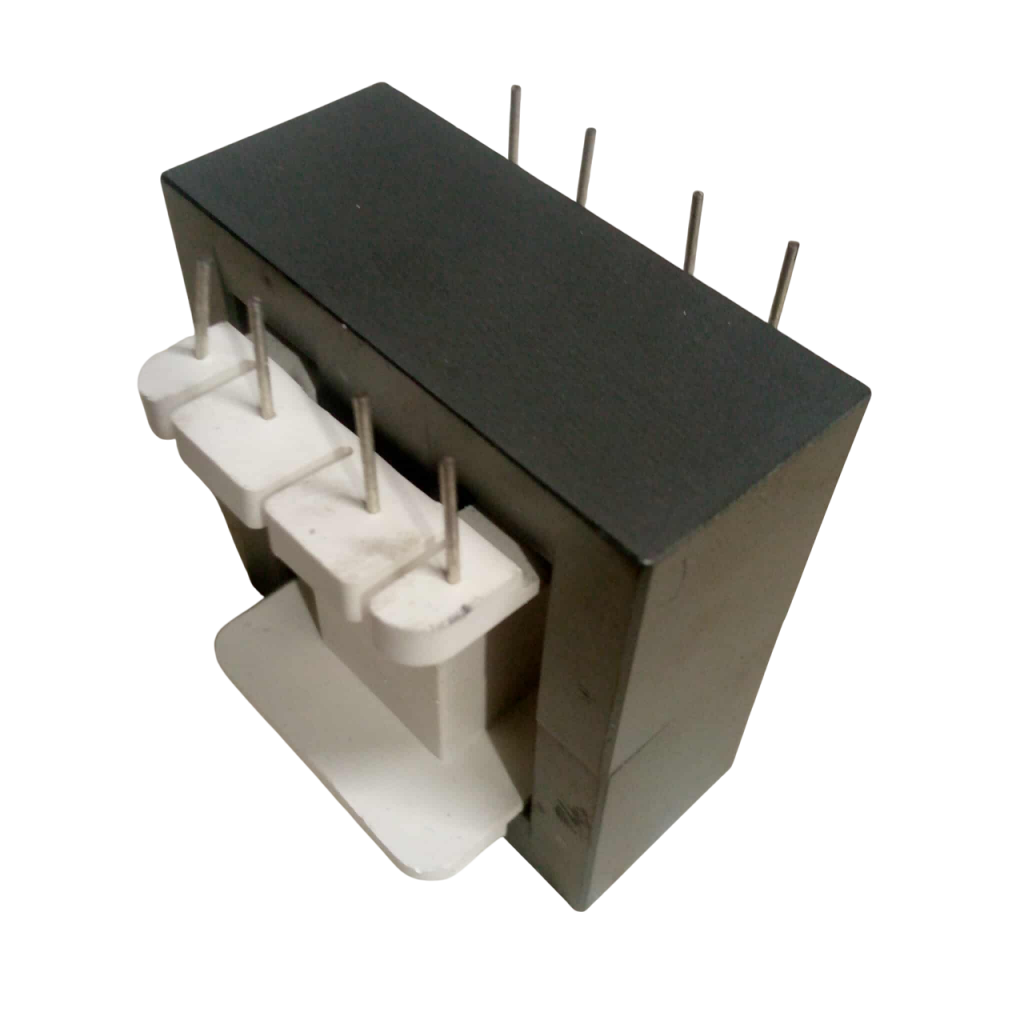

EE55 Transformer Ferrite Core 4+4 8Pin Bobbin for SMPS / Power Supply

Description: EE55 Transformer Ferrite Core With 4+4 8Pin Bobbin

Widely used in color TV, monitor, electric charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!

Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

Type: EE55B

Pin spacing: 5mm/0.2”

Row spacing: 35mm/1.4″

Ferrite core Size: 55.5 x 20.5 x 28mm/2.2″ x 0.8″ x 1.1″(L*W*T)

Bobbin size: 61 x 42 x 60mm/2.4″ x 1.6″ x 2.4″(L*W*H)

Winding frame size: 32 x 20 x 24mm/1.2″ x 0.8″ x 0.9″(L*W*T)

Package Include:

1 x EE55 Transformer Ferrite Core With 4+4 8Pin Bobbin
